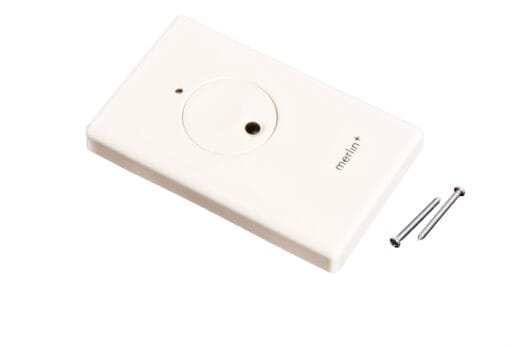

Merlin CM128 Wall Button Includes
1x Merlin CM128 Garage Wall Button “Security +”
1x CR2032 Lithium Battery
2x Screws
1 Year Warranty
The CM128 was made obsolete due to the Button Battery ACCC compliance regulations introduced in June 2022.
The Merlin E148M will replace your Merlin CM128, as it meets all button battery regulation requirements.
Merlin CM128 Wall Button Specifications
| Remote Dimensions | 11.5 x 7.4 x 1.3 (cm) |
| Remote Weight | 63g |
| Manufacturer | Merlin |
| Model Number | CM128 |
| Batteries Included | Yes |
| Battery Type | CR2032 Lithium |
| Warranty | 1 Year |
Merlin CM128 Wall Button Compatiblity
This garage door remote control will suit the below garage door and gate motors. Note that all these motors do not have “EVO” or “MYQ” in their model number. If you are looking for a replacement Merlin remote and your motor has “EVO”, “MYQ” or a mention of “Security+ 2.0” written on it, this wall button would not suit – You would require the E148M.
We have instructions available here, or you can watch a YouTube video here.
Roller Door Openers
- Chamberlain CR550 Roller Door Motor
- HomEntry HE60R Roller Door Motor
- Merlin MR60 Roller Door Motor
- Merlin MR600 Roller Door Motor
- Merlin MR600a Roller Door Motor
- Merlin MR650 Roller Door Motor
- Merlin MR800 Roller Door Motor
- Merlin MR800a Roller Door Motor
- Merlin MR850 Roller Door Motor
- Melin MR1000 Roller Door Motor
- Merlin MJ3800R Jackshaft Roller Door Motor
- Merlin MRC950 Light Industrial Roller Door Motor
Sectional Door Openers
- HomEntry HE60 Sectional Door Motor
- Merlin MT60 Panel Door Motor
- Merlin MT60P Panel Door Motor
- Merlin MT600 Panel Door Motor
- Merlin MT800 Panel Door Motor
- Merlin MT1000 Panel Door Opener
- Merlin MJ3800 Jackshaft Panel Door Opener
- Merlin MT3850 Panel Door Motor
- Merlin MT5580 Sectional Door Opener
- Merlin MT5580P Panel Door Motor
- Motorlift ML700 Sectional Door Opener
- Motorlift ML750 Sectional Door Opener
- Motorlift ML850 Sectional Door Opener
Swing & Sliding Gate Openers
- Merlin MGS300 Gate Operator
- Merlin MGA300 Gate Operator
- Merlin MGS400 Gate Operator
- Merlin MGS500 Gate Operator
- Merlin MGS1000 Gate Operator
- Motorlift HC100ML Gate Operator
- Motorlift HC300ML Gate Operator
- Motorlift HC400ML Gate Operator
- Motorlift HC500ML Gate Operator
- Motorlift HC600ML Gate Operator
Merlin CM128 Wall Button Features
The Chamberlain Merlin wall mounted remote control was has been in used from late 2007, for the Merlin Security+ AM garage door operators. Coming with one white and one black button on a white case, this 132A2614 remote control is able to operate two door or gate openers. Please note, this is not compatible with the later “MYQ”, “EVO” or “Security+ 2.0” operators.
Programming the remote control yourself is very simple, taking less than 10 seconds. Our technical support team have created video guides as well as written step by step instructions to help you program in your remote control.
Optional accessories compatible with the Merlin CM128 Wall Button include the C840 Keypad or the C945 Remote Control for your keyring.
