Description

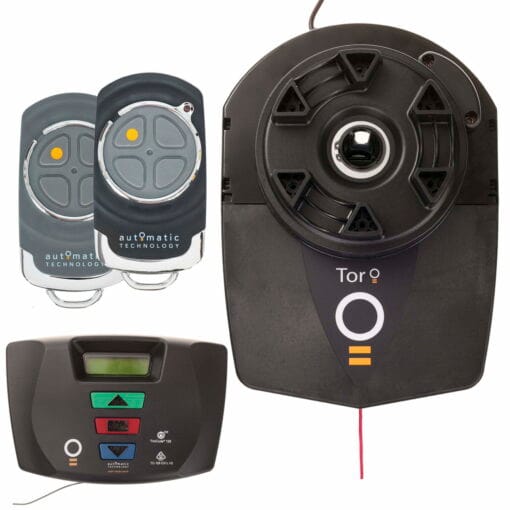

The ATA GDO10v3 Toro Light Commercial Opener Includes

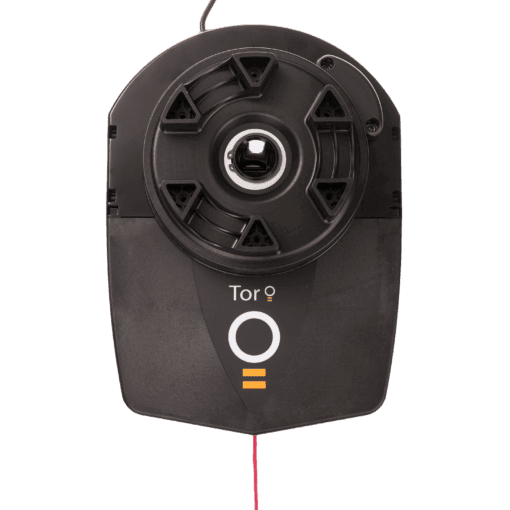

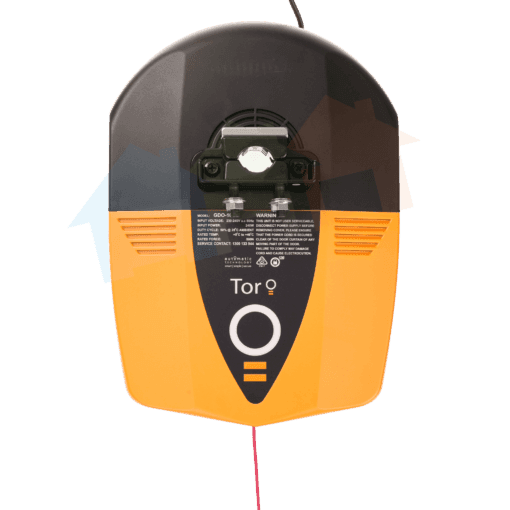

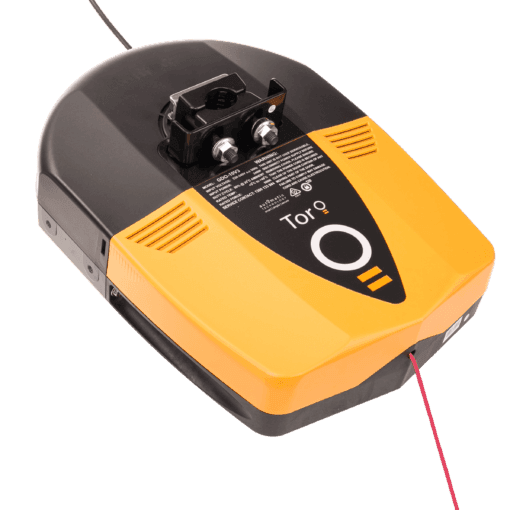

1x ATA “Toro” GDO10v3 Commercial Door Opener
2x ATA PTX6 Keyring Transmitters

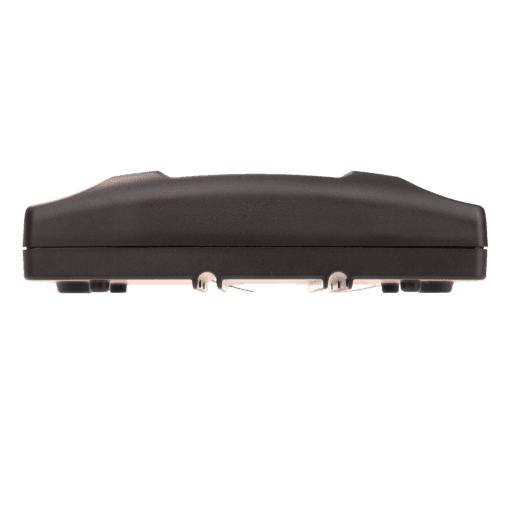

1x Up/Down/Stop Wall Console
Video Instructions
Installation Manual
2 Year Warranty
Specifications
| Rated Door Area | 28m² (6m W x 4.7m H) |
| Suitable Doors | Light Commercial |
| Min Side Room | 140mm |
| Model Number | GDO10v3 |
| Peak Power | 1000N |
| Standby Power | 2.2W |
| Opening Speed | 130mm/sec |
| MHz Frequency | FM 433.92 |
| Memory Register | 64 |
| Lighting | None |
| Warranty | 2 Years |
Features
The GDO10 has been an automation staple by industrial garage door professionals in Australia and New Zealand from 2008, with 3 different versions being formed over the years to meet growing customer expectations. The Generation 2 GDO 10v3 Toro offers upgraded operation, with advanced safety features such as slow start / stop, auto reverse and interference free remote controls.

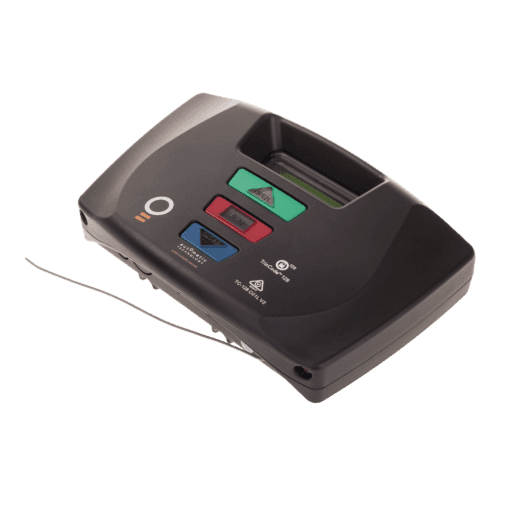

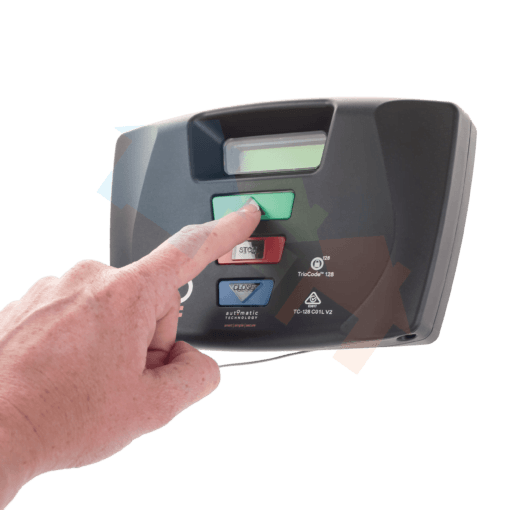

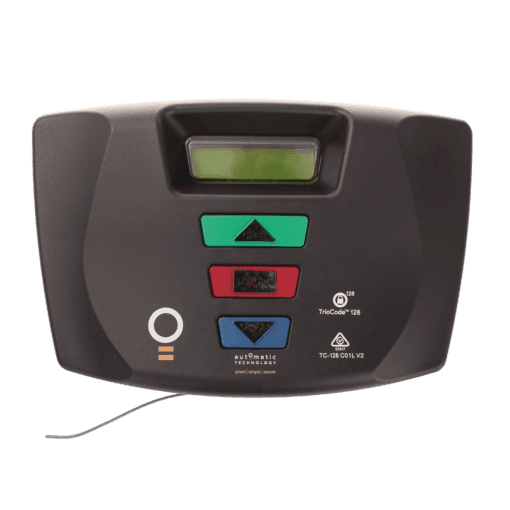

Designed to suit light commercial applications for doors up to 28m² with high duty cycles, the GDO10v3 wired wall console has an LCD screen and can manage up to 511 remote controls. The wired wall console also has the ability for time lock controlled access, adjustable speed programs and different obstruction settings. To make sure you can access your factory or shed at all times, the GDO10 Toro features an inbuilt battery backup, allowing you to open or close the door even if you lose power.

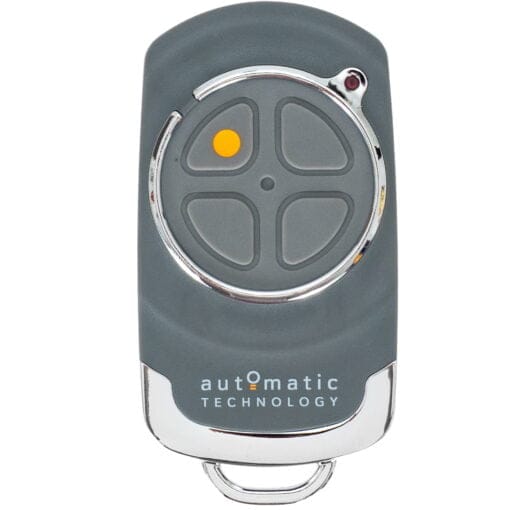

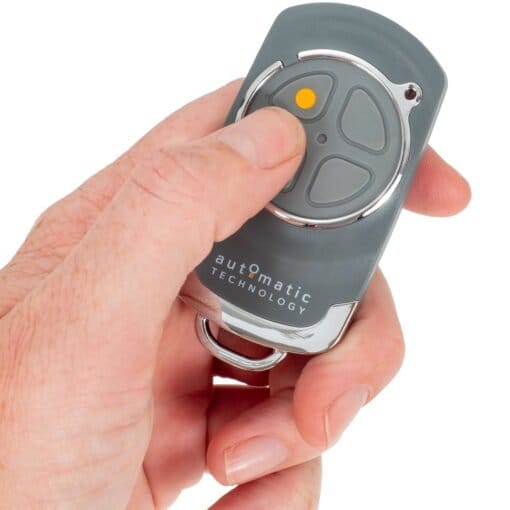

The included PTX6 remote controls features a rolling code encryption called TrioCode128, which generates a new code each time the button is pressed from trillions upon trillions of possibilities. By transmitting across three frequencies, the PTX6 all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your garage door.
