Genius Echo Gate Remote Specifications
| Remote Dimensions | 5.5 x 3 x 1.4 (cm) |
| Remote Weight | 24g |
| Manufacturer | Wholesale Garage |
| Made To Suit | Genius Echo |
| Model Number | WGC448, RPC448 |
| Batteries Included | Yes |
| Battery Type | 27A 12V Alkaline Battery |
| Warranty | 1 Year |
Genius Echo Gate Remote Compatibility

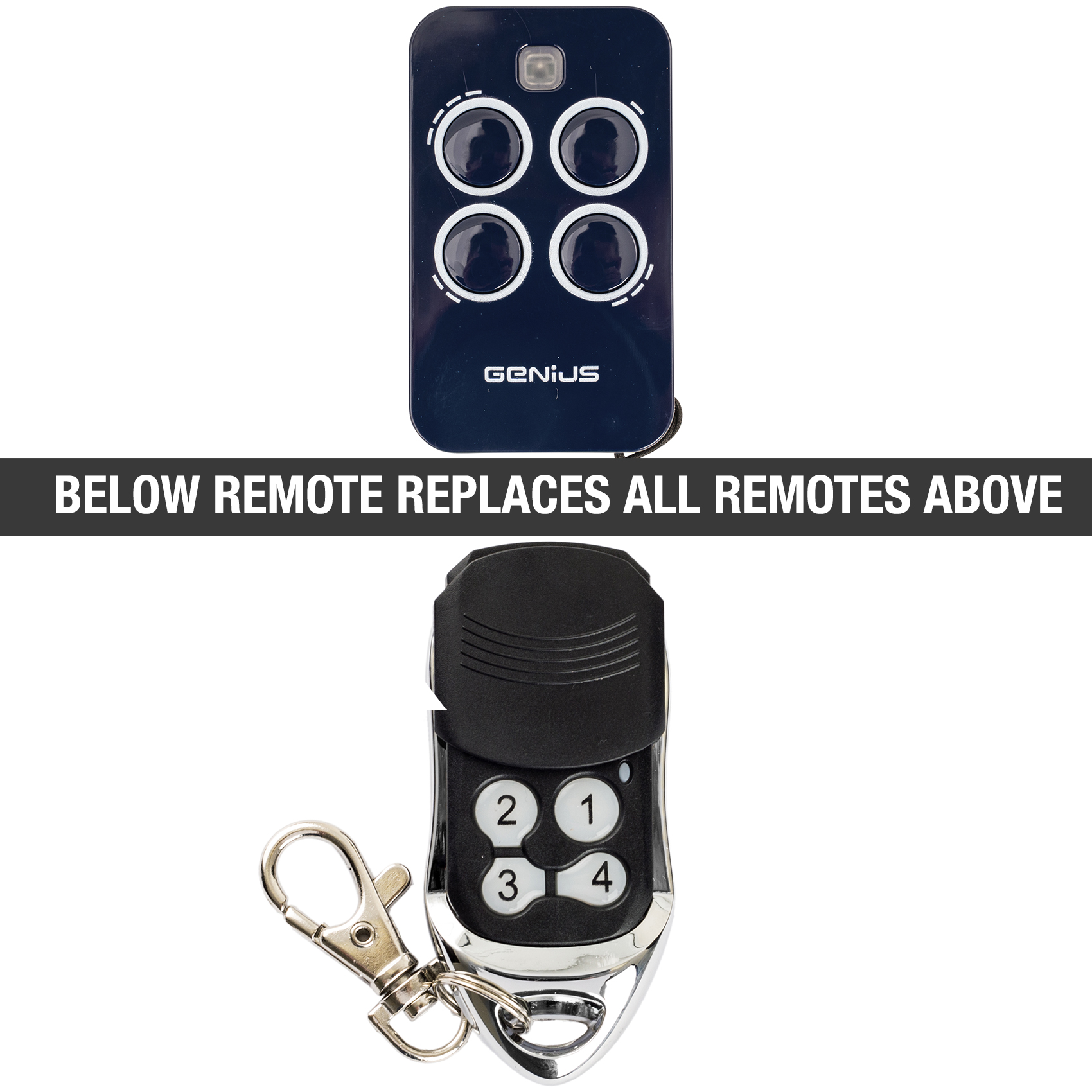

This Genius Echo aftermarket remote control will suit the remotes pictured in the main image. Please note, if your remote control is not pictured this may not suit. Your remote must have red terminals, it will not replace the white or gold terminal remotes.
Whilst this remote may look similar to other remotes in the industry, this is not a ‘universal’ garage door remote.
- Your original remote must look the same as pictured
- Mistral 324 Swing Gate Motor
- Trigon Swing Gate Motor
- Blizzard 4 Sliding Gate Motor
If you would like confirmation if this would work, please send a photo of your remote control to our team on our contact us page.
Genius Echo Gate Remote Features
Our grey Genius Echo aftermarket remote controls are specifically designed to suit Genius Echo garage door and gate openers. Its compact design makes it handy and easy to carry, so you don’t have to worry about bulky or cumbersome remotes. Moreover, this four-button, 4-channel remote is highly versatile, allowing you to effortlessly control multiple garage doors or gate systems with a single device.
This means you can now easily replace your old or lost remotes without breaking the bank. The four-button configuration empowers users to perform various functions or control multiple devices with ease. Additionally, the setup and programming process is extremely user-friendly, making it perfect for both tech-savvy individuals and those who might not be as comfortable with technology. Enhance your garage door experience with this sleek, robust, and multi-functional aftermarket remote control.
Genius Echo Gate Programming Instructions
CODING VIA RECEIVER
- On the motor receiver, press the button for the channel you wish to program:
• SW1 to store Channel 1 (CH1)
• SW2 to store Channel 2 (CH2) - LED 1 or LED 2 will illuminate steadily, indicating the receiver is in learning mode.
- Within 10 seconds, press and hold any button on the new remote for 1–2 seconds.
- If programming is successful, the LED on the receiver will flash twice.
- The receiver will remain in learning mode after the first remote is stored. To program additional remotes (up to 256 total), repeat Step 3.
- The receiver will automatically exit learning mode 10 seconds after the last remote is programmed.
- To exit learning mode manually, briefly press and release either SW1 or SW2 after programming is complete.
CODING FROM A WORKING REMOTE
- Stand within 1–2 metres of the motor with both a working remote and the new remote you wish to program.
- On the working remote, press and hold the P1 and P2 buttons at the same time until LEDs L1 and L2 on the motor receiver begin flashing. Release both buttons.
- While the receiver LEDs are flashing, press the button on the working remote that currently operates the door. The assigned LED (L1 or L2) will begin flashing.
- While the LED is flashing, press and hold the button on the new remote you wish to program.
- The receiver LED will flash and then remain illuminated steadily. Release the button on the new remote.
- After approximately 10 seconds, the receiver LED will turn off.
- Your new remote has now been successfully programmed.
