FAAC Garage Door Remote Specifications
| Remote Dimensions | Â 7.1 x 3.3 x 1.4(cm) |
| Remote Weight | Â 40g |
| Manufacturer | Â Wholesale Garage |
| Made To Suit | Â FAAC |
| Model Number | Â WGC301, RPC301 |
| Batteries Included | Â Yes |
| Battery Type | Â 27A 12V Alkaline Battery |
| Warranty | Â 1 Year |
FAAC Garage Door Remote Compatibility

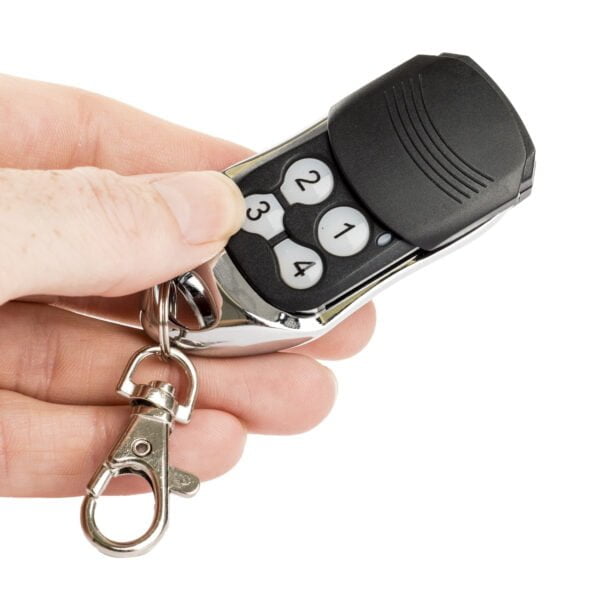

This FAAC aftermarket remote control will suit the remotes pictured in the main image. Please note, if your remote control is not pictured this may not suit.
Whilst this remote may look similar to other black sliding cover remotes in the industry, this is not a ‘universal’ garage door remote.
- 433LC
- 787452
- TE4433H
- XT2
- XT4
If you would like confirmation if this would work, please send a photo of your remote control to our team on our contact us page.
FAAC Garage Door Remote Features
Our black sliding cover FAAC aftermarket remote controls are specifically designed to suit FAAC garage door and gate openers. With a black casing, complemented by a sturdy metal trim, these remotes are not only aesthetically appealing but are also built to last. The sliding cover is a game-changer, ensuring that the buttons are protected from dust and accidental presses, thus prolonging the lifespan of the remote. Its compact design makes it handy and easy to carry, so you don’t have to worry about bulky or cumbersome remotes. Moreover, this four-button, 4-channel remote is highly versatile, allowing you to effortlessly control multiple garage doors or gate systems with a single device.
This means you can now easily replace your old or lost remotes without breaking the bank. The four-button configuration empowers users to perform various functions or control multiple devices with ease. Additionally, the setup and programming process is extremely user-friendly, making it perfect for both tech-savvy individuals and those who might not be as comfortable with technology. Enhance your garage door experience with this sleek, robust, and multi-functional aftermarket remote control.
FAAC Gate Remote Programming Instructions
Programming Your Gate Remote
- Open the Motor/Control Panel:
- Locate the motor/control panel, which will either be on the gate motor or inside a box mounted to a wall near the motor.
- Locate the Receiver Board:
- Once the cover is removed, find the receiver board. This is a small circuit board attached to a larger circuit board.
- Identify the Learn Button:
- After locating the receiver board, identify the learn button (refer to the image for guidance).
- Press the Learn Button:
- Press and release the learn button. A red light will illuminate for 10 seconds.
- Program the Remote:
- Press and hold the button on your new remote that you want to use to control the gate. Hold it for 2-3 seconds. The light on the receiver will flicker, indicating the remote has been learned.
- Test the Remote:
- Ensure your new remote operates the gate correctly.
- Program Additional Remotes:
- If you have additional remotes, repeat steps 4-6 for each one.
Alternative Programming Method
- Press the + or Logic Button:
- Press and hold the + or Logic button located on the right of the motor.
- Press the Setup Button:
- While holding the + or Logic button, press the setup button. The Radio 1 LED will start to flash.
- Program the Remote:
- Release both buttons. Then, press and hold the button on the new remote that you wish to use to operate the door. Release the remote button once the Radio 1 LED stops flashing.
- Test the Remote:
- Ensure the remote operates the door correctly.
