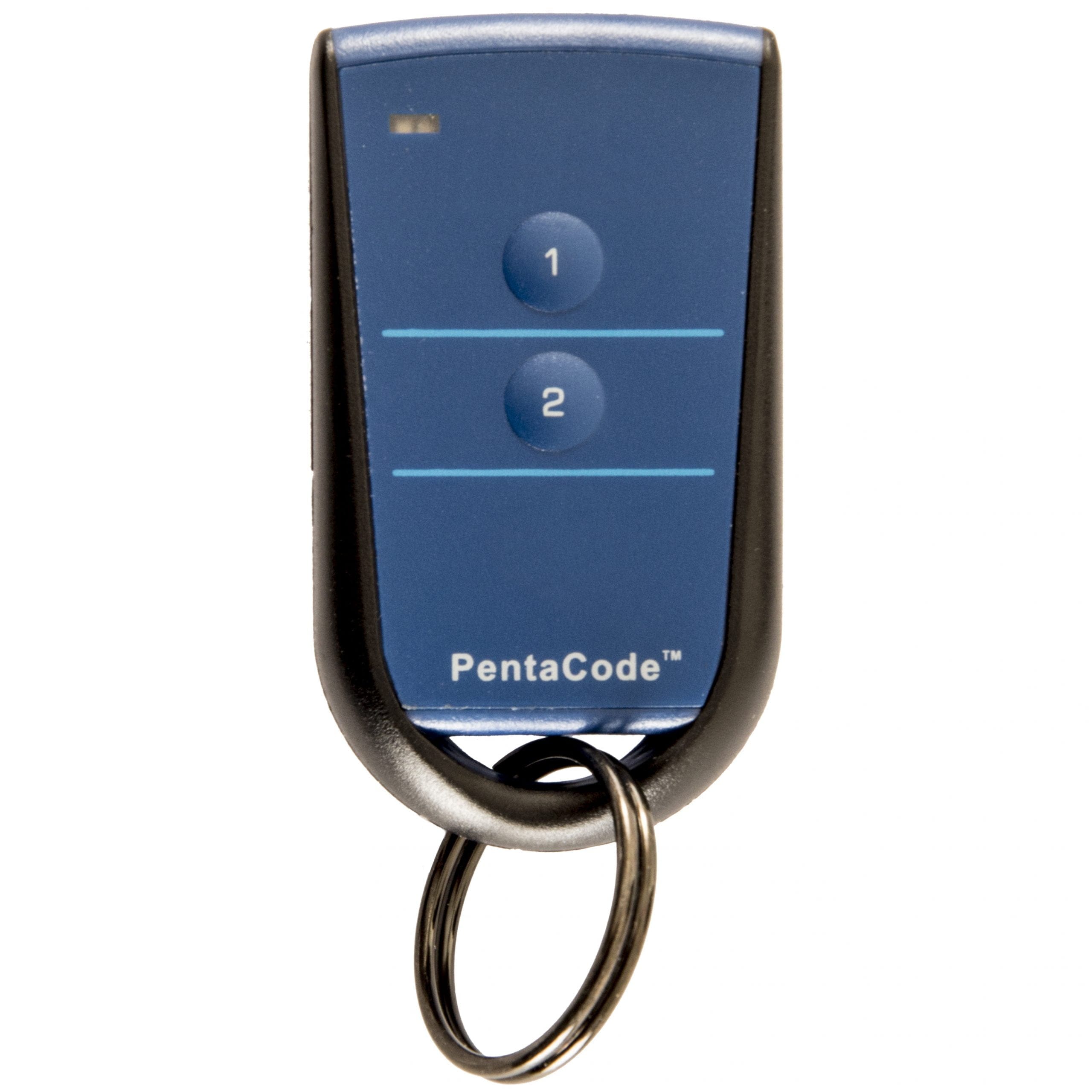

Elsema PCK43302 PentaCODE Blue Two Button Remote Control

Elsema PentaCODE PCK43302 Remote

1x Genuine Elsema PentaCODE PCK43302 Remote
1x A23 12v Lithium Battery

Elsema PentaCODE PCK43302 Remote Features

The PCK43302 remote control has two buttons, which will allow you to code this remote control to two door or gate openers. The PentaCode remote controls have a dual coding ability, which gives you the option to use either the classic 12 way dip switch coding or one of over 17 billion encrypted codes via a ‘Rolling Code’. The PentaCode series of remote controls are available in 2 or 4 button configurations. The keyring retainer is moulded as part of the chassis using reinforced nylon, making this one of the sturdiest remote controls on the market.

If you want to use the dipswitch encoding method, simply match the PentaCode remotes dipswitches to the receivers dipswitches and the remote control will be ready for use.

If you want to use the rolling code method, you switch all of the dipswitches in the rear of the remote control to off. The remote control can then be programmed into the Elsema receiver, enabling your high security remote control to operate the receiver.

The PentaCODE® series is an extremely versatile remote control that can be customized through a range of configurations and colors to suit your needs.

Elsema PentaCODE PCK43302 Remote Programming Instructions

1. Check that all switches are “OFF” on the receivers 12-way dip switch
2. Press and hold the program button on the receiver
3. Press the remote button for 2 seconds, receiver LED will flash and then turn Green
4. Release the button on the receiver and the remote
5. Press remote control button to test the receiver output

Elsema PentaCODE PCK43302 Remote Compatibility

The Elsema PentaCode remote controls are designed to with PentaCode and PentaFox remote controls and their associated receivers.

Compatible Elsema PentaCODE Receivers

Elsema PCR43301RE
Elsema PCR43301240R
Elsema PCR43302R
Elsema PCR43302240R
Elsema PCR43304R
Elsema PCR43305R
Elsema PCR433WG
Elsema PCR43302P
Elsema PCR43301240RE
Elsema PCR43302RE
Elsema PCR43302240RE
Elsema PCR43304RE
Elsema PCR43305RE
Elsema PCTR433
