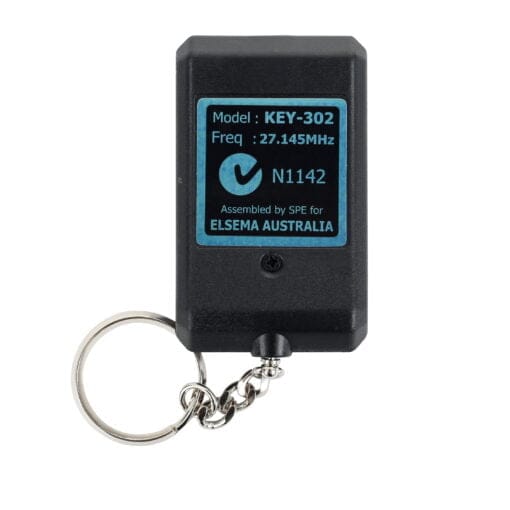

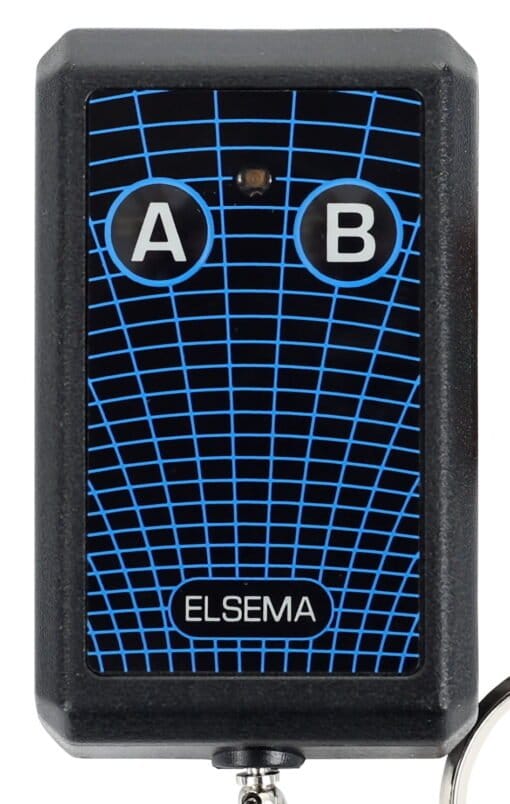

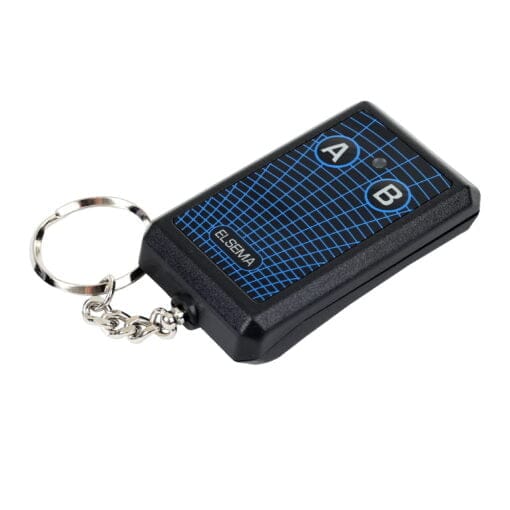

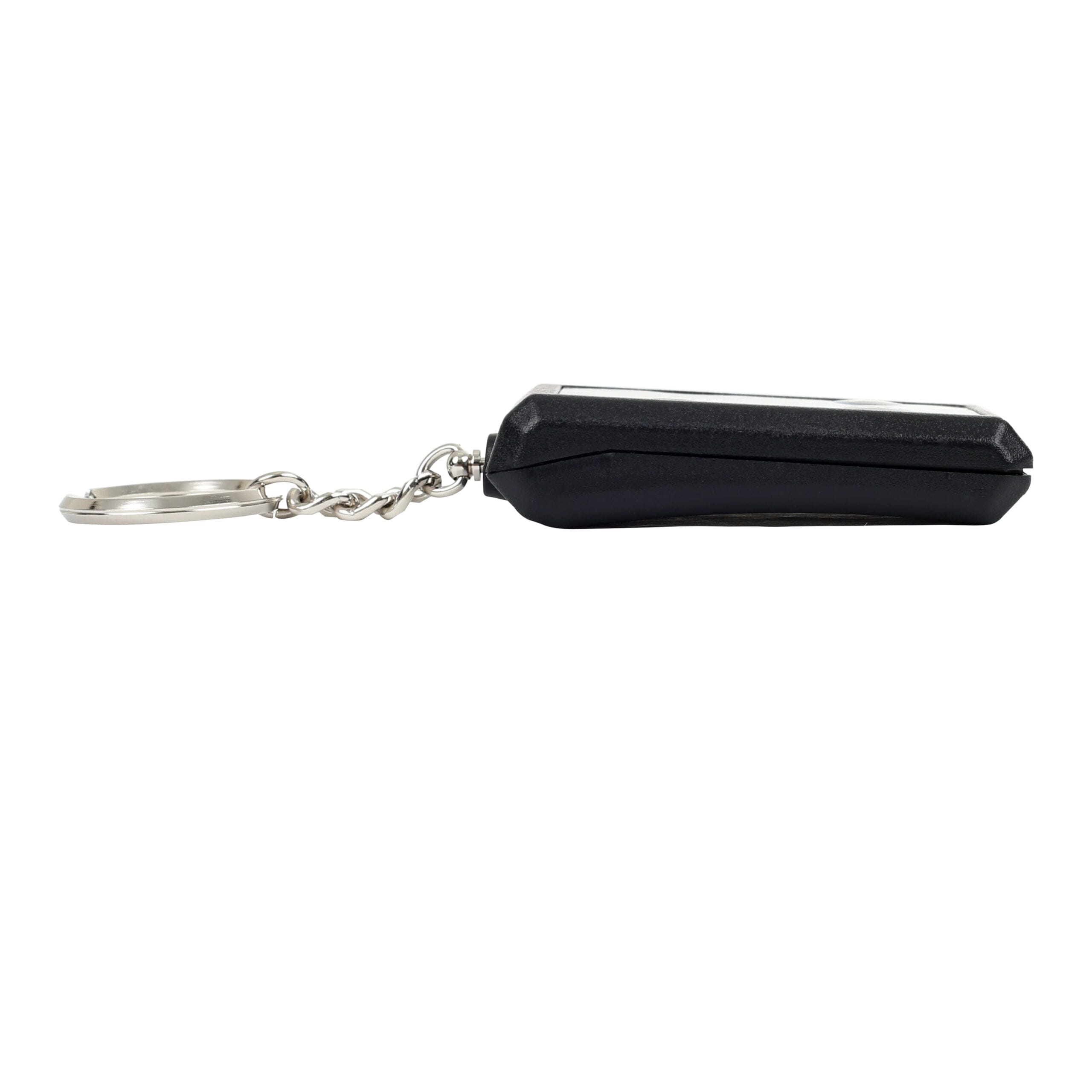

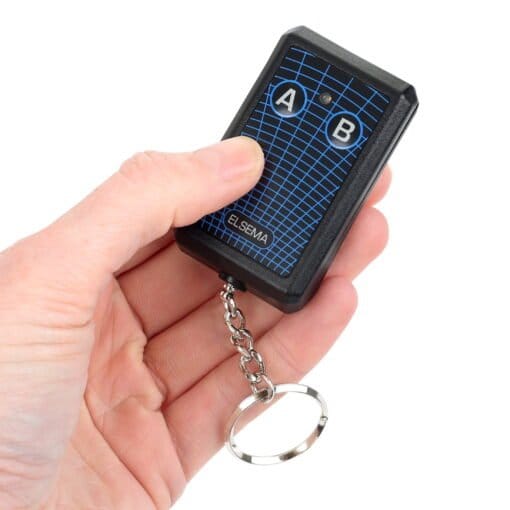

Elsema KEY-302 Keyring Remote Transmitter

Description

Elsema KEY302 Remote

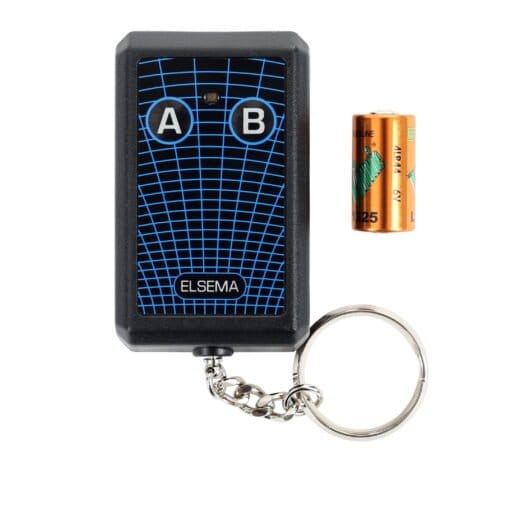

1x Genuine Elsema KEY302 Remote
1x L1325 Alkaline Battery
Easy To Read Instructions

Elsema KEY302 Remote Features

The KEY-302 remote control has two buttons, which will allow you to code this remote control into two different doors or gate openers. The Elsema KEY302 remote control is a smaller version of the Elsema FMT302 remote control. Operating in the 27MHz band, the KEY series achieves the highest possible standard of performance by using a crystal-controlled, frequency modulated (FM) radio signal.

Elsema KEY302 Remote Programming Instructions

Remote to Remote or Remote to Receiver Programming
Open your old remote and set the dip switches in your new remote control to exactly what your old remote is set to. Reverse the code (Dipswitch 12 in the ATA would be the position of dipswitch 1 in your Elsema remote, 11-2, 10-3, etc) if your old remote control is ATA branded. If you do not have an old remote control, you will need to find the receiver in your garage or gate motor to find what code you need to put into your new remote control. Again, if your garage door motor is ATA you will need to reverse the code.

Elsema KEY302 Remote Compatibility

The Elsema KEY-302 remote control will suit garage door openers operated by one of the below remote controls. Please note that when changing from a two or four button Elsema remote control to a single button Elsema remote, you might need to change the code found inside your garage door or gate opener as well as the code inside the remote control. This is also suitable for QuikCorp’s range of Quik Spray hose reel systems using Elsema Remote controls.

Compatible Remote Controls

ATA TX-2
ATA TXA-2
Elsema KEY-302
Elsema FMT-202
Elsema FMT-302
Elsema FMT-402
