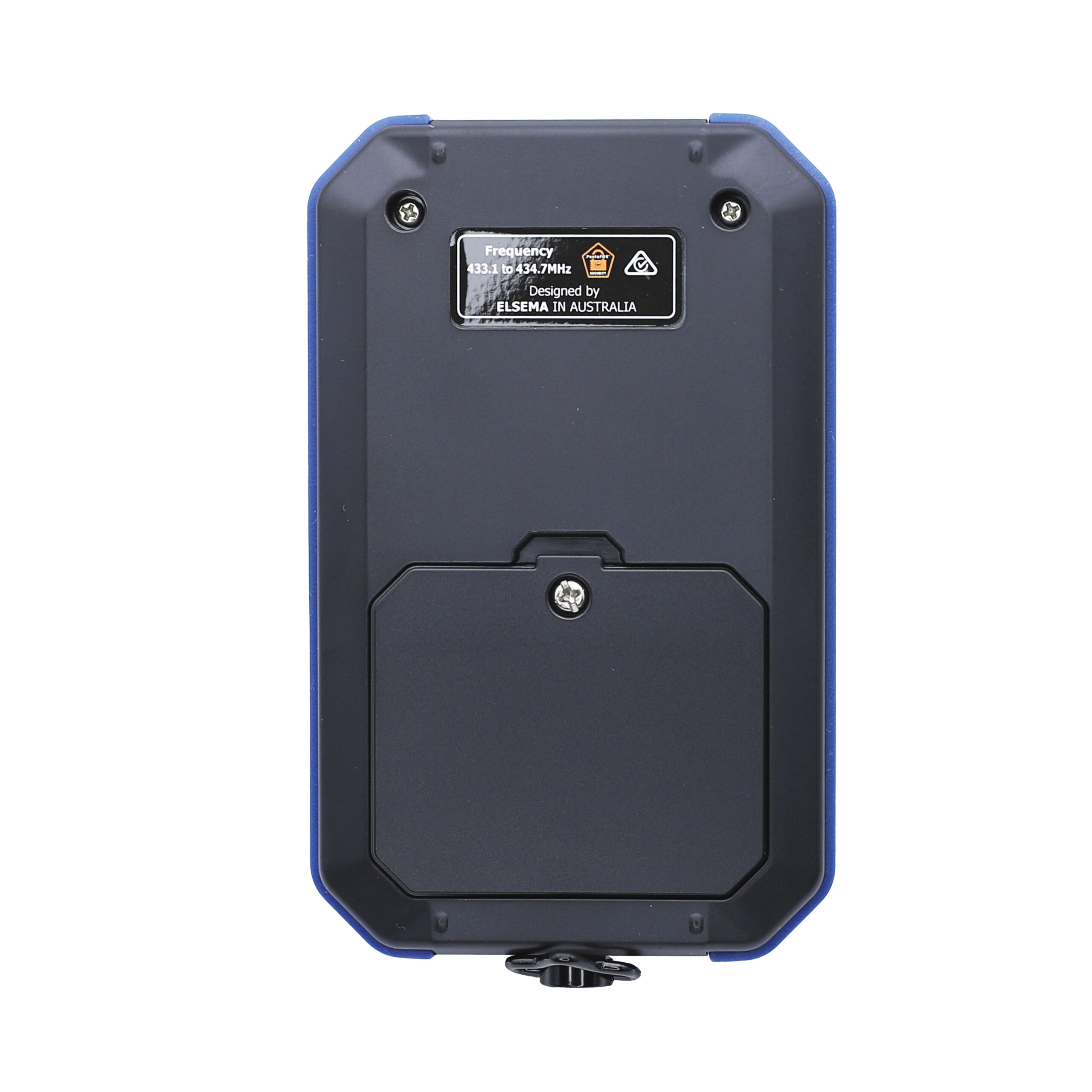

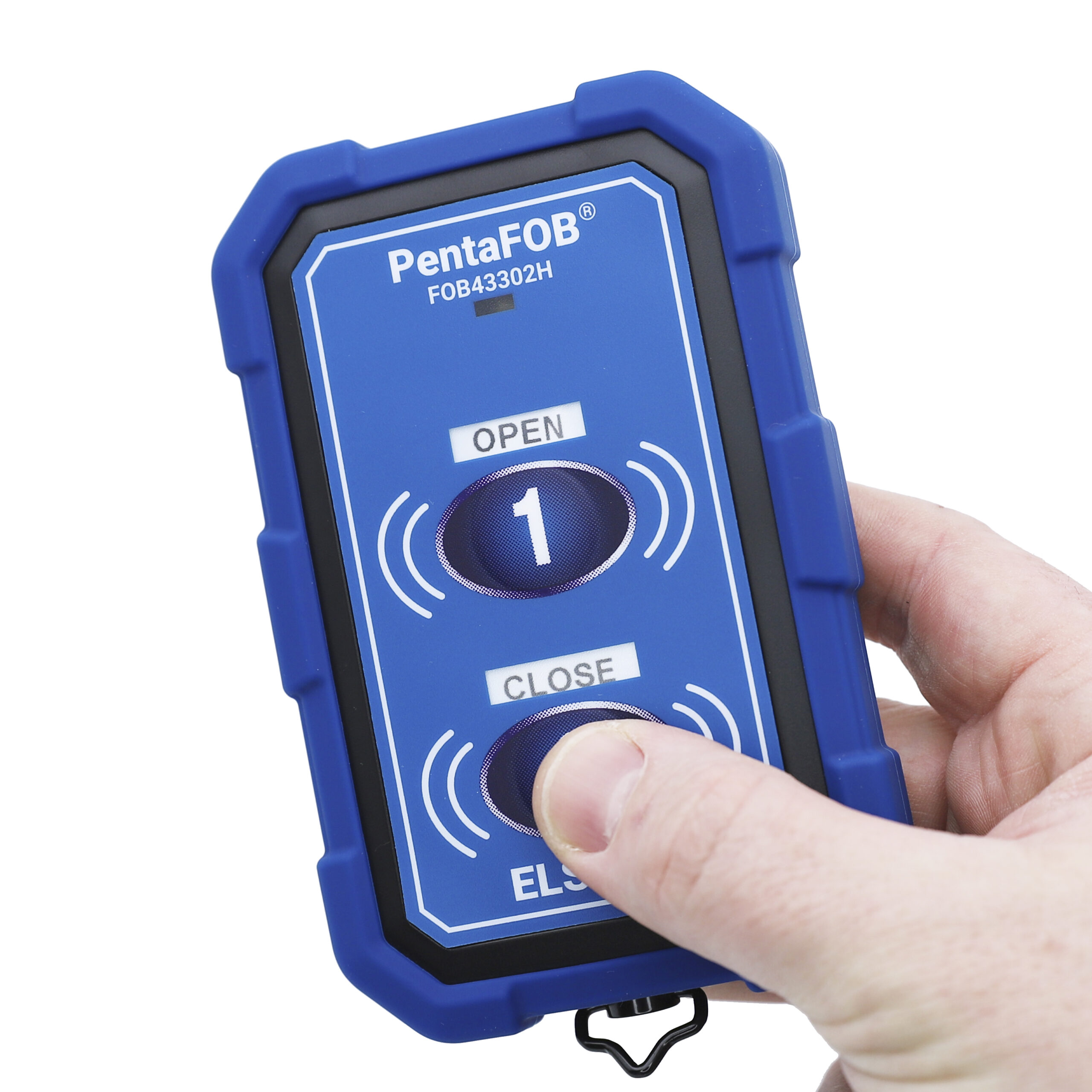

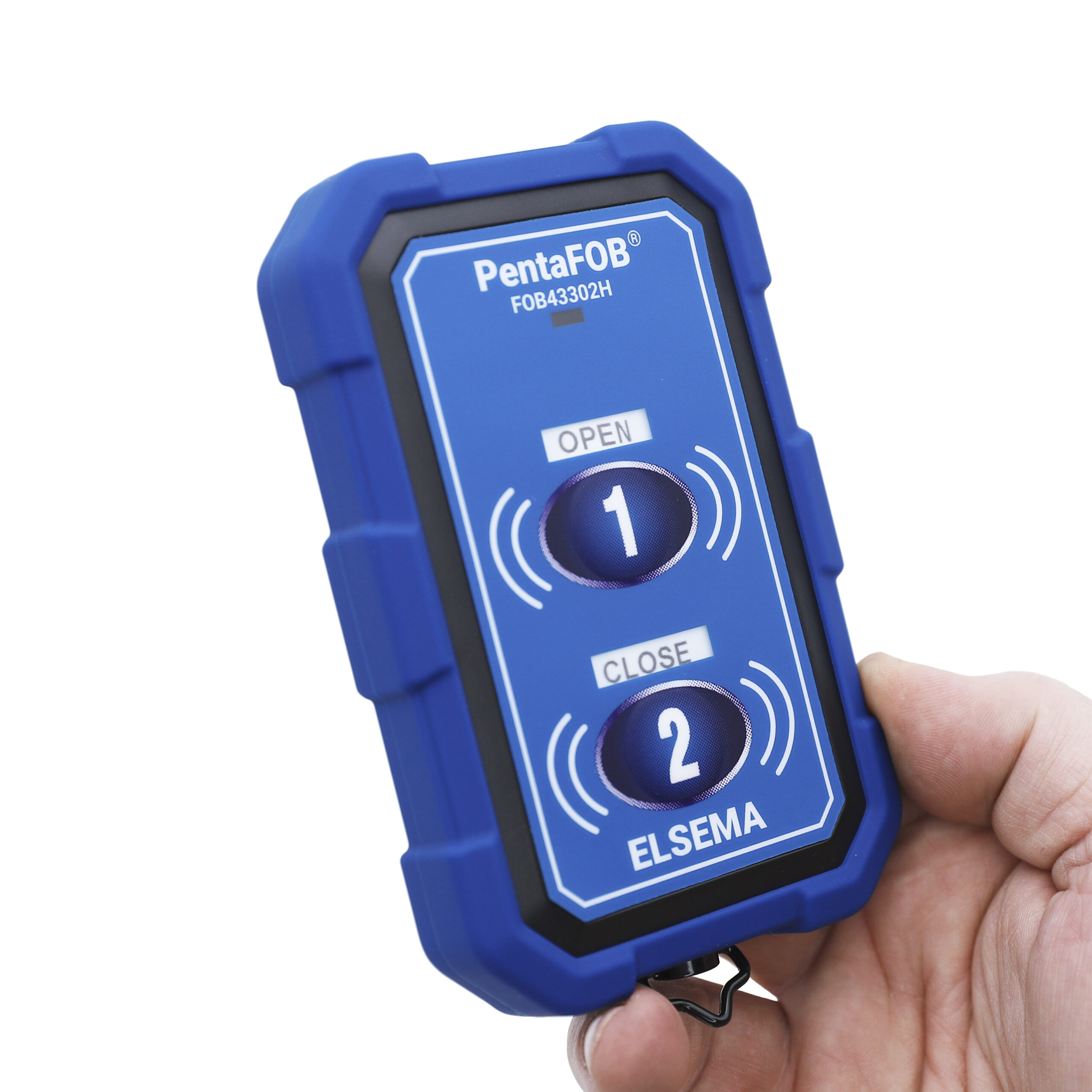

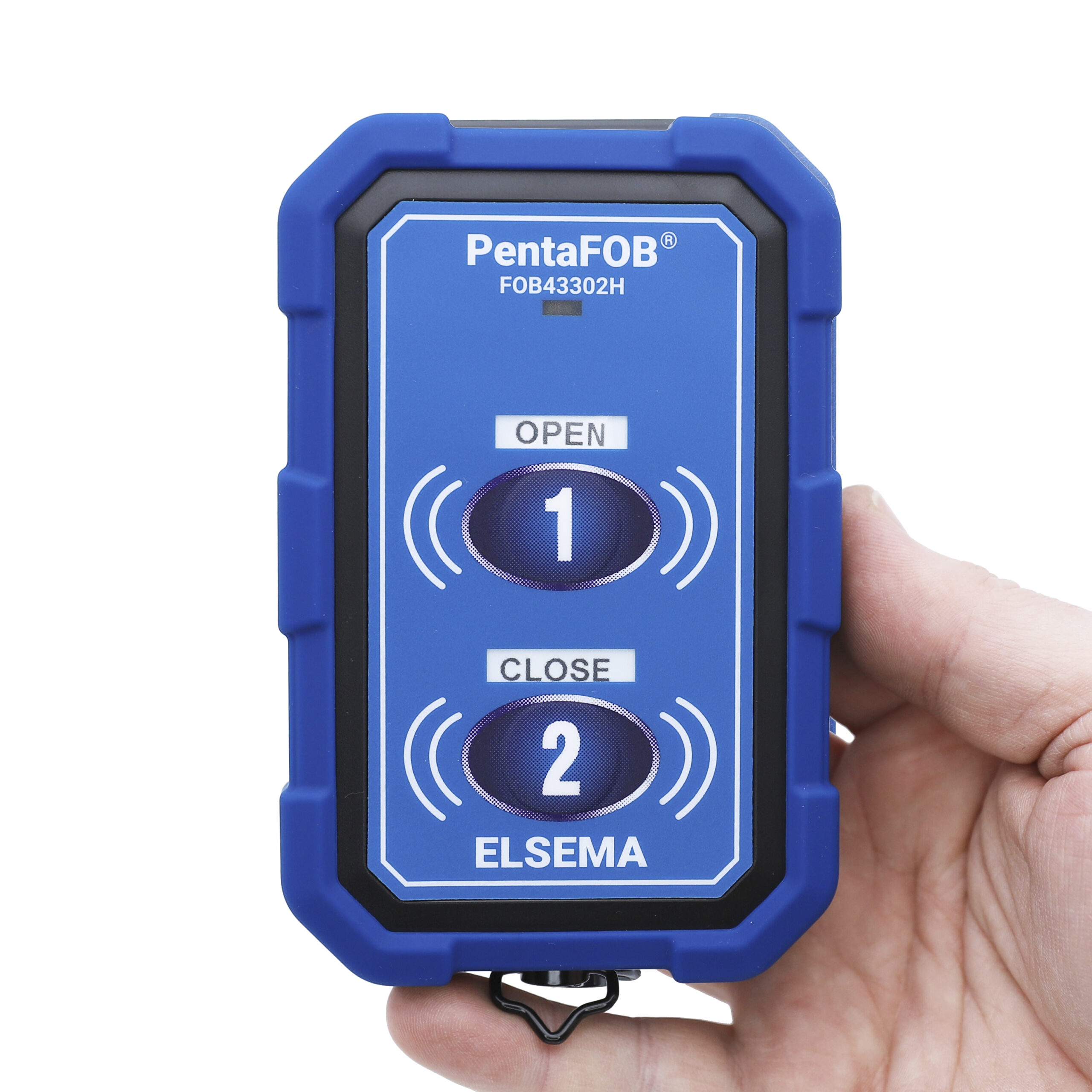

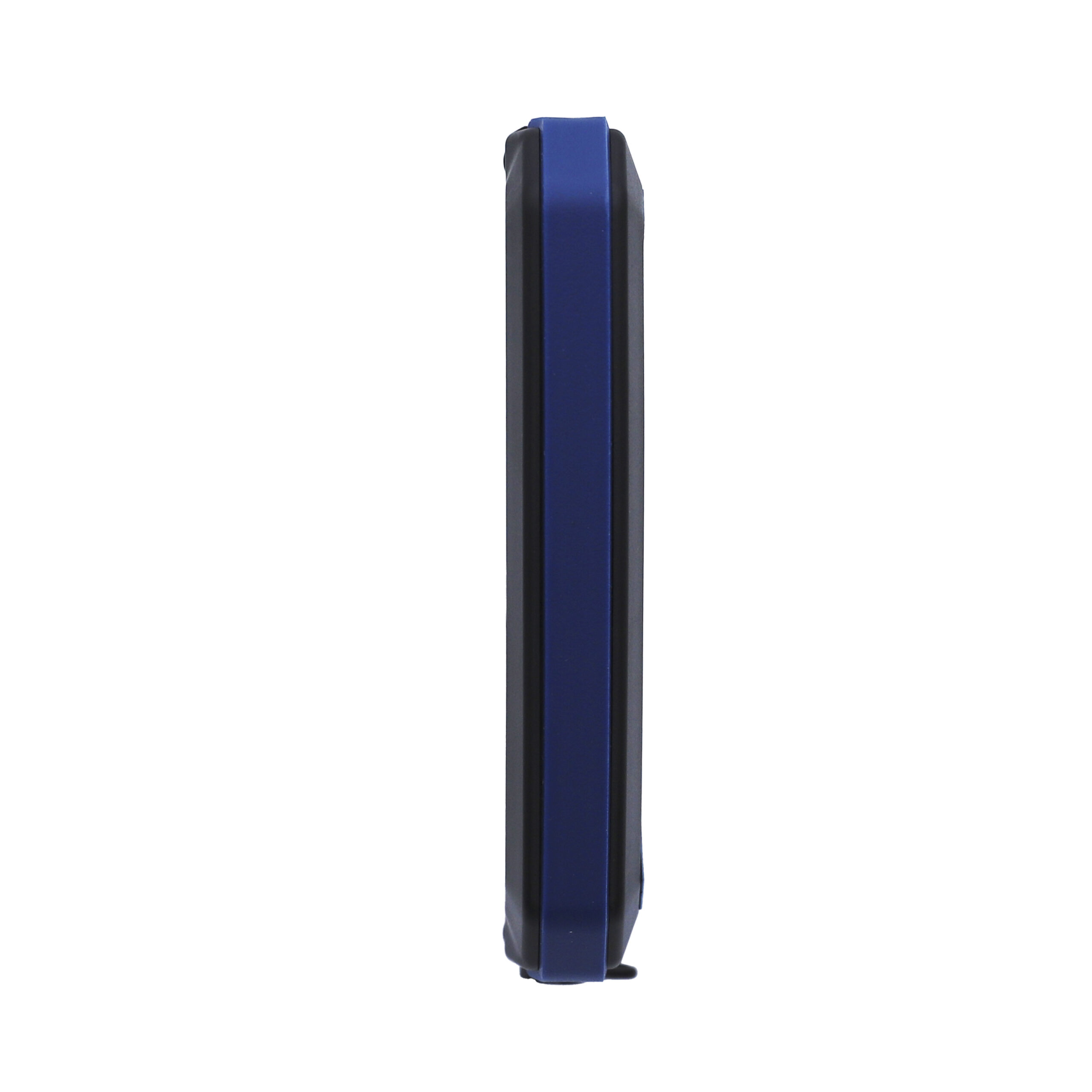

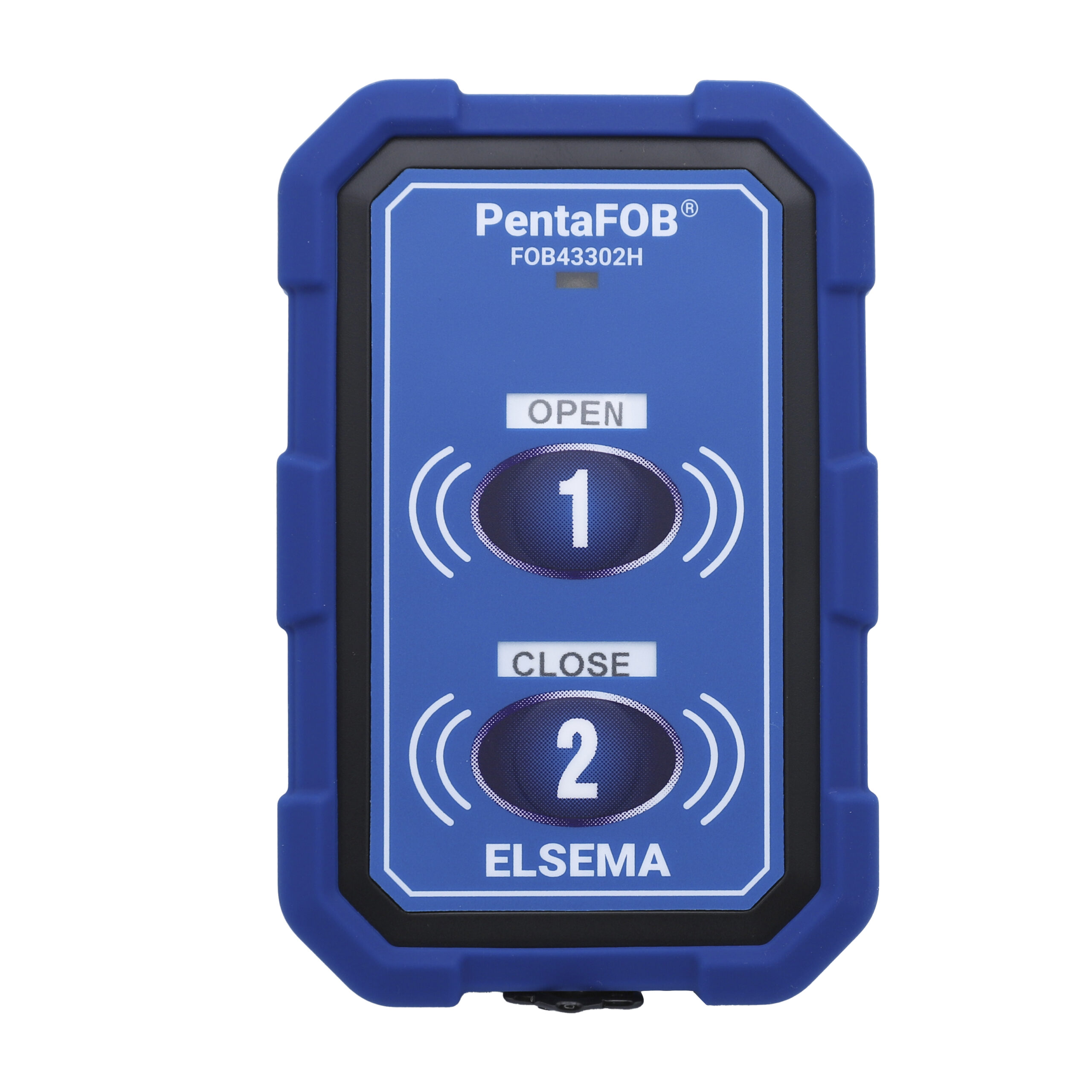

Elsema FOB43302H Industrial Grade Waterproof Remote

Elsema PentaFOB® Handheld Waterproof Remote Controls

The Elsema PentaFOB® series handheld remote controls are designed for reliable wireless operation across industrial, commercial and agricultural applications. Built for use with the Elsema PCR series receivers, these rugged waterproof remote controls are ideal for tow trucks, tilt trays, forklifts, tractors, mining equipment, irrigation systems, automatic gates, lighting control and many other ON/OFF applications.

Available in 8, 4 and 2 button configurations, the PentaFOB® range gives operators the flexibility to control multiple devices or functions from a single remote control. Whether operating lifting equipment, hydraulic systems, gates, pumps or lighting, the PentaFOB® series is built for dependable everyday use in demanding environments.

Using advanced Frequency Hopping Spread Spectrum (FHSS) technology, every button press is transmitted across five different frequencies simultaneously. Combined with encrypted rolling code security offering over 17 billion unique combinations, the PentaFOB® range provides exceptional protection against interference and unauthorised access.

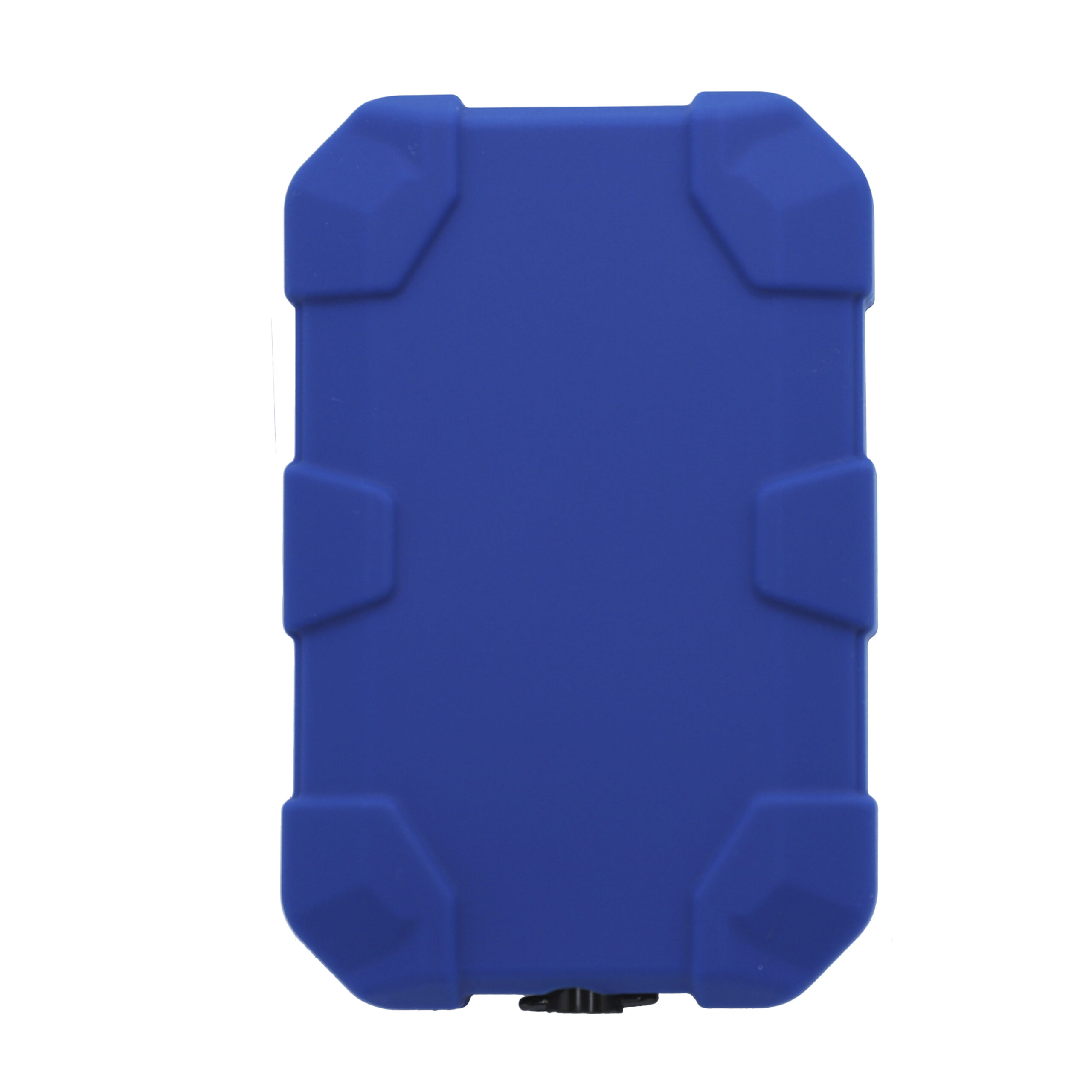

Designed for harsh Australian conditions, the PentaFOB® remote controls feature an IP66 rated waterproof housing with a durable rubber boot and lanyard included for easy carry and protection against dust, dirt and water ingress.

Elsema PentaFOB® Remote Control Features

• Industrial grade waterproof handheld remote controls
• Designed for use with Elsema PCR series receivers
• Frequency Hopping Spread Spectrum (FHSS) technology
• Encrypted rolling code security with over 17 billion combinations
• Suitable for industrial, agricultural and commercial applications
• IP66 rated housing with protective rubber boot
• Available in 8, 4 and 2 button configurations
• Long operating range of up to 400 metres
• Low battery indicator included
• Lanyard included for easy carrying and access

Elsema PentaFOB® Technical Specifications

Elsema PentaFOB® Compatibility

The Elsema PentaFOB® remote controls are compatible with the Elsema PCR receiver range, commonly used across industrial automation, transport equipment, agriculture and access control applications.

Compatible receiver models include:

• PCR43301RE
• PCR43301240R
• PCR43302R
• PCR43302240R
• PCR43304R
• PCR43305R
• PCR433WG
• PCR43302P
• PCR43301240RE
• PCR43302RE
• PCR43302240RE
• PCR43304RE
• PCR43305RE
• PCTR433

Elsema PentaFOB® Frequently Asked Questions

What is the Elsema PentaFOB® series?

The Elsema PentaFOB® range is a series of industrial grade waterproof remote controls designed for reliable wireless operation across commercial, industrial and agricultural applications.

What button options are available?

The PentaFOB® range is available in 8, 4 and 2 button models depending on the number of functions or devices you need to control.

What makes the PentaFOB® range industrial grade?

The remotes feature IP66 rated waterproof construction, encrypted rolling code security, FHSS transmission technology and durable housings designed for harsh environments.

How does Frequency Hopping Spread Spectrum work?

FHSS technology broadcasts each button press across five different frequencies simultaneously, helping improve reliability, reduce interference and enhance security.

What is the operating range?

Under ideal conditions, the Elsema PentaFOB® remotes can operate at distances of up to 400 metres.

What batteries are required?

The PentaFOB® remote controls use 2 x AAA batteries.

Can the remote be used while wearing gloves?

Yes. The large button layout and rugged design make the remotes suitable for operation while wearing work or safety gloves.

Can one button control multiple receivers?

Yes. Depending on system configuration, a single button can be programmed to operate multiple compatible Elsema receivers.
