ECA Red Garage Door Remote Specifications
| Remote Dimensions | 5.5 x 3 x 1.4 (cm) |
| Remote Weight | 24g |
| Manufacturer | Wholesale Garage |
| Made To Suit | ECA Red |
| Model Number | WGC446, RPC446 |
| Batteries Included | Yes |
| Battery Type | 27A 12V Alkaline Battery |
| Warranty | 1 Year |
ECA Red Garage Door Remote Compatibility

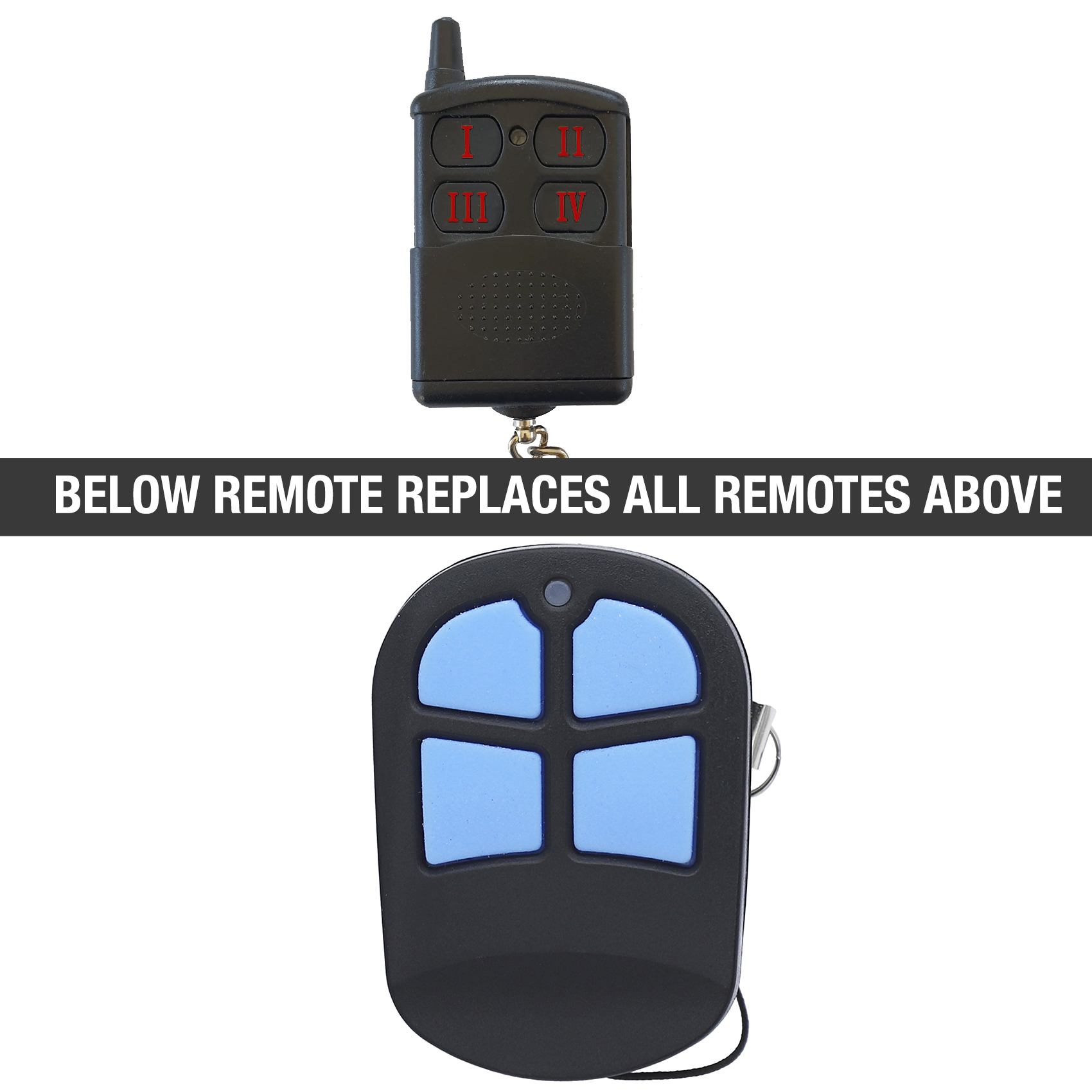

This ECA Red aftermarket remote control will suit the remotes pictured in the main image. Please note, if your remote control is not pictured this may not suit. Your remote must have red terminals, it will not replace the white or gold terminal remotes.
Whilst this remote may look similar to other black sliding cover remotes in the industry, this is not a ‘universal’ garage door remote.
- ECA TR-4Rs
- Must have red roman numerals
- Please Note: Only suitable for 433MHz and not suitable with 868MHz
If you would like confirmation if this would work, please send a photo of your remote control to our team on our contact us page.
ECA Red Garage Door Remote Features
Our black ECA Red aftermarket remote controls are specifically designed to suit ECA Red garage door and gate openers. With a black casing, complemented by a sturdy metal trim, these remotes are not only aesthetically appealing but are also built to last. Its compact design makes it handy and easy to carry, so you don’t have to worry about bulky or cumbersome remotes. Moreover, this four-button, 4-channel remote is highly versatile, allowing you to effortlessly control multiple garage doors or gate systems with a single device.
This means you can now easily replace your old or lost remotes without breaking the bank. The four-button configuration empowers users to perform various functions or control multiple devices with ease. Additionally, the setup and programming process is extremely user-friendly, making it perfect for both tech-savvy individuals and those who might not be as comfortable with technology. Enhance your garage door experience with this sleek, robust, and multi-functional aftermarket remote control.
ECA Red Remote Programming Instructions
FIRST METHOD: REMOTE TO REMOTE PROGRAMMING
- Take a working remote and stand approximately 2 metres away from the receiver.
- Press and hold buttons (III) and (I) together for 5 seconds.
• If this does not work, press and hold buttons (I) and (II) together instead. - Release the buttons on the original remote.
• The LED light on the receiver will turn on, indicating it is ready to learn a new remote. - On the NEW remote, press and hold the button you want to use for 5 seconds, then release it.
• The LED light on the receiver will turn off, confirming the remote has been successfully programmed.
Notes:
• This feature will only work if the WT jumper inside the receiver is set to OFF.
• To disable remote-to-remote programming, place the WT jumper back onto the receiver pins.
• Refer to the receiver diagram below for the WT jumper location.
SECOND METHOD: PROGRAMMING VIA THE RECEIVER / MOTOR
- Remove the jumper (circled in purple
• The LED light will turn on. - On the new remote, press and release the button you want to operate the receiver.
- Reinstall the jumper into its original position.
- Repeat Steps 1–3 for any additional remotes.
