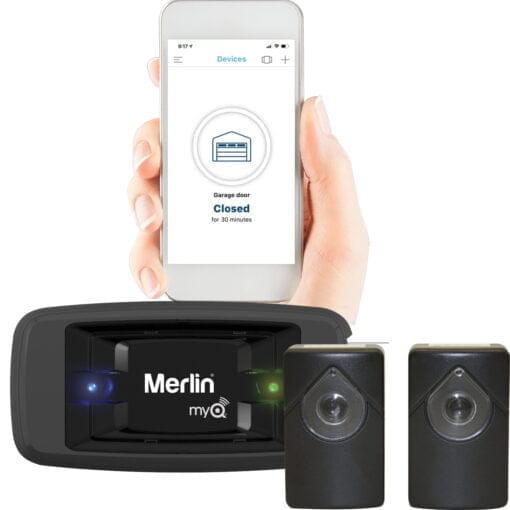

myQ Connectivity Bundle Includes
1x Merlin M828AU MYQ Phone Hub
1x Merlin 774ANZ PE Beams
Instructions
Merlin MYQ Connectivity Kit Specifications
 Hub Dimensions |  11 x 5.5 x 2.8 (cm) |
 Hub Weight |  59g |
 Manufacturer |  Merlin |
 Model Number |  M828AU774 |
 Batteries Included |  Yes |
 Power Source |  240V Plug |
 Warranty |  1 Year |
Merlin MYQ Connectivity Kit Compatibility
This Merlin MYQ Connectivity Bundle will suit the below garage door and gate motors. The Merlin MYQ Connectivity Kit is compatible with most modern smartphones, watches and other devices.
We have instructions available here.
Compatible Merlin Roller Door Openers
MR555MYQ Weatherdrive
MR655MYQ SilentDrive Essential
MR855MYQ SilentDrive Elite
CR655MYQ Rollerlift
CR855MYQ Rollerlift Plus
Compatible Merlin Door Openers
CS65MYQ SectionalLift Plus
MS65MYQ Commander Essential
MS105MYQ Commander Elite
MS125MYQ Commander Extreme
MJ3800MYQ Commander Elite
Compatible Merlin Gate Openers
MGLSK & MGLSK-LV Swing Gate Opener
MGADK & MGADK-LV Swing Gate Opener
MGASK-S & MGASK-S-LV Swing Gate Opener
MGSK600 & MGSK600-LV Sliding Gate Opener
GLD-GO & GLD-GO-LV Sliding Gate Opener
Merlin MYQ Connectivity Kit Features

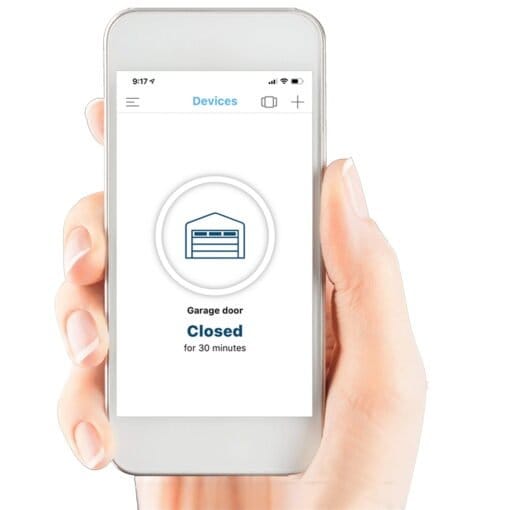

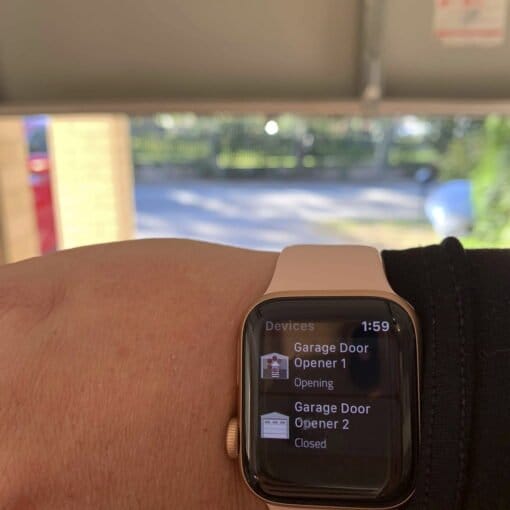

The Merlin MYQ Phone Kit allows you to monitor and control your garage door or gate away from home. Simply open the Chamberlain Merlin MYQ app on your smart watch or mobile device for simple remote operation. The Merlin MYQ Connectivity Kit also includes the Merlin 774ANZ safety beams, to reliably stop the garage door opener from closing the garage door when the beam is obstructed or broken. This helps protect your family and posessions.
Photoelectric safety beams mount on either side of the opening of your garage door or gate to transmit an infrared beam, wired to your garage or gate motor. Depending on the position and action of your door or gate, when this beam is broken different functions occur:
If broken whilst closing, the motor will stop and auto-reverse back to the top. If on a gate, the gate will stop and open.
When broken whilst opening, the motor will continue to open.
If broken whilst not in motion, the motor will refuse to operate, preventing accidental closure on a person or object.
When fitted correctly, PE Beams can protect your family and property. The Merlin MYQ Connectivity Kit requires the beams to be installed for remote operation. Multiple countries regard PE Beams as a legal requirement for garage or gate openers as a matter of safety, due to the potential of injury. The Australian Industry highly recommends PE Beams for installation on all garage doors and are a requirement for Smartphone Kits to operate.
