Merlin PE Beam 774ANZ Specifications
| Beam Dimensions | 11.3 x 6.5 x 2.5 (cm) (including steel bracket) |
| Beam Weight | 167g (including steel bracket) |
| Manufacturer | Merlin |
| Model Number | 774ANZ |
| Batteries Included | Yes |
| Power Source | Wired |
| Warranty | 1 Year |
Merlin PE Beam 774ANZ Compatibility
This Merlin PE Beam 774ANZ kit will suit the below garage door and gate motors.
We have instructions available here.
Compatible Merlin Roller Door Openers
CR550 Roller Door Motor
CR650EVO
CR655MYQ RollerLift
CR675EVO HandyLift Deluxe 2.0
HE60R Roller Door Motor
MR550EVO WeatherDrive
MR60 Roller Door Motor
MR600 Roller Door Motor
MR600a Roller Door Motor
MR650 Roller Door Motor
MR650EVO Quiet Drive
MR655EVO Quiet Drive
MR655MYQ SilentDrive Essential
MR800 Roller Door Motor
MR800a Roller Door Motor
MR850 Roller Door Motor
MR850EVO Silent Drive
MR855EVO Silent Drive
MR855MYQ SilentDrive Elite
MR865MYQ SilentDrive Elite
MR1000 Roller Door Motor
MJ3800R Jackshaft Roller Door Motor
MRC950 Light Industrial Roller Door Motor
MRC950EVO OverDrive Light Commercial Opener
GLD-RDO ‘LR Drive’
Compatible Merlin Door Openers
CS65MYQ SectionalLift
CS100EVO Powerlift Plus
HE60 Sectional Door Motor
MJ3800MYQ Commander Elite
MS65MYQ Commander Essential
MT60 Panel Door Motor
MT60EVO PowerAce
MT60P Panel Door Motor
MT100EVO Tiltmaster
MT100MYQ Tiltmaster
MS105MYQ Commander Elite
MT120EVOPS Cyclone Pro
MS125MYQ Commander Extreme
MS125MYQX Commander Extreme
MT600 Panel Door Motor
MT800 Panel Door Motor
MT1000 Panel Door Opener
MJ3800 Jackshaft Panel Door Opener
MT3850 Panel Door Motor
MT3850EVO WhisperDrive
MT5580 Sectional Door Opener
MT5580P Panel Door Motor
ML700 Sectional Door Opener
ML750 Sectional Door Opener
ML850 Sectional Door Opener
ST50EVOB
ST50EVO
Compatible Merlin Gate Openers
MGA300 Gate Operator
MGS400 Gate Operator
MGS500 Gate Operator
MGS1000 Gate Operator
HC100ML Gate Operator
HC300ML Gate Operator
HC400ML Gate Operator
HC500ML Gate Operator
HC600ML Gate Operator
MGLDK & MGLDK-LV Swing Gate Opener
MGLSK & MGLSK-LV Swing Gate Opener
MGADK & MGADK-LV Swing Gate Opener
MGASK-S & MGASK-S-LV Swing Gate Opener
MGSK600 & MGSK600-LV Sliding Gate Opener
GLD-GO & GLD-GO-LV Sliding Gate Opener
Merlin PE Beam 774ANZ Features

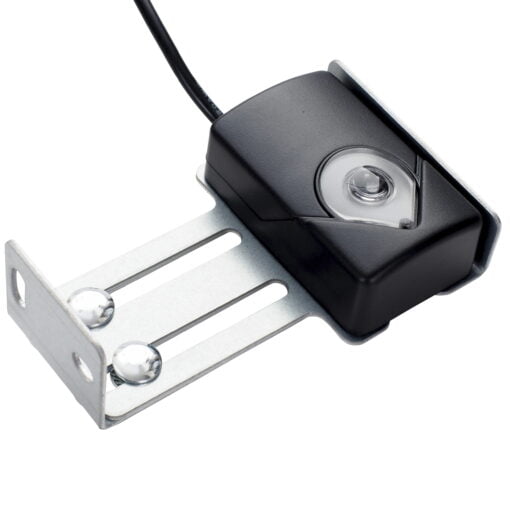

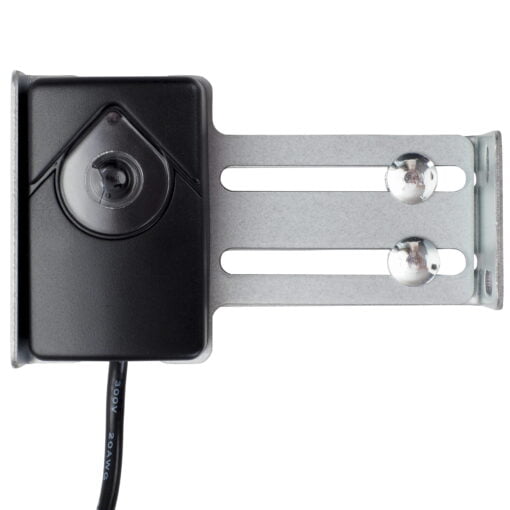

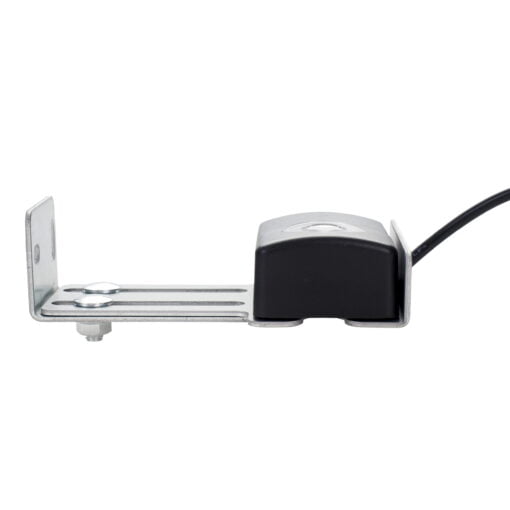

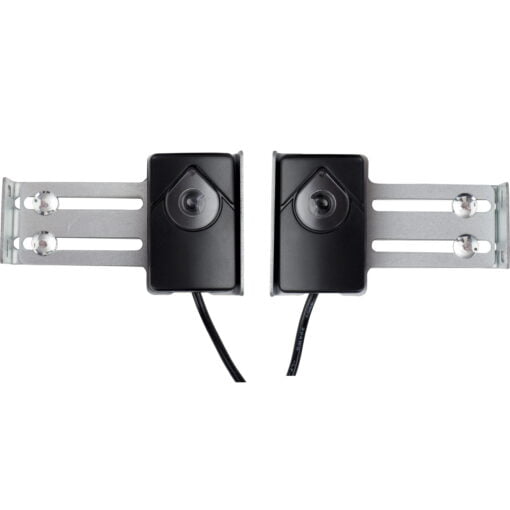

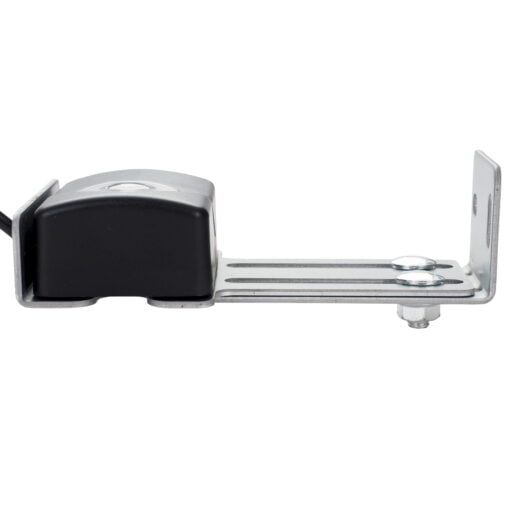

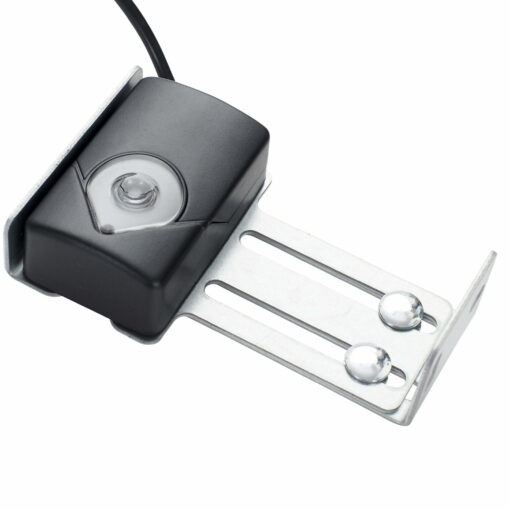

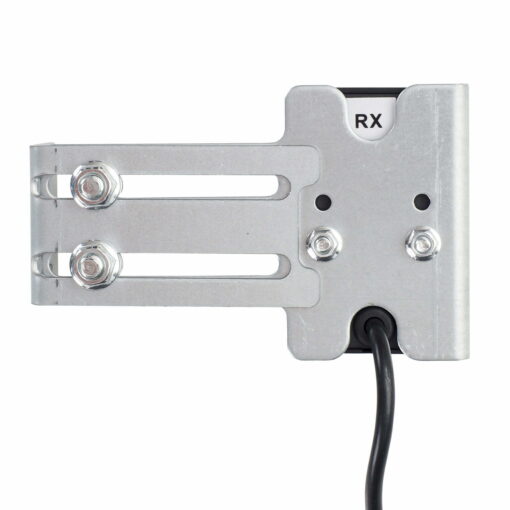

Photoelectric safety beams mount on either side of the opening of your garage door or gate to transmit an infrared beam, wired to your garage or gate motor. Depending on the position and action of your door or gate, when this beam is broken different functions occur:
If broken whilst closing, the motor will stop and auto-reverse back to the top. If on a gate, the gate will stop and open.
When broken whilst opening, the motor will continue to open.
If broken whilst not in motion, the motor will refuse to operate, preventing accidental closure on a person or object.
When fitted correctly, PE Beams can protect your family and property. The Merlin MYQ Connectivity Kit requires the beams to be installed for remote operation. Multiple countries regard PE Beams as a legal requirement for garage or gate openers as a matter of safety, due to the potential of injury. The Australian Industry highly recommends PE Beams for installation on all garage doors and are a requirement for Smartphone Kits to operate.
