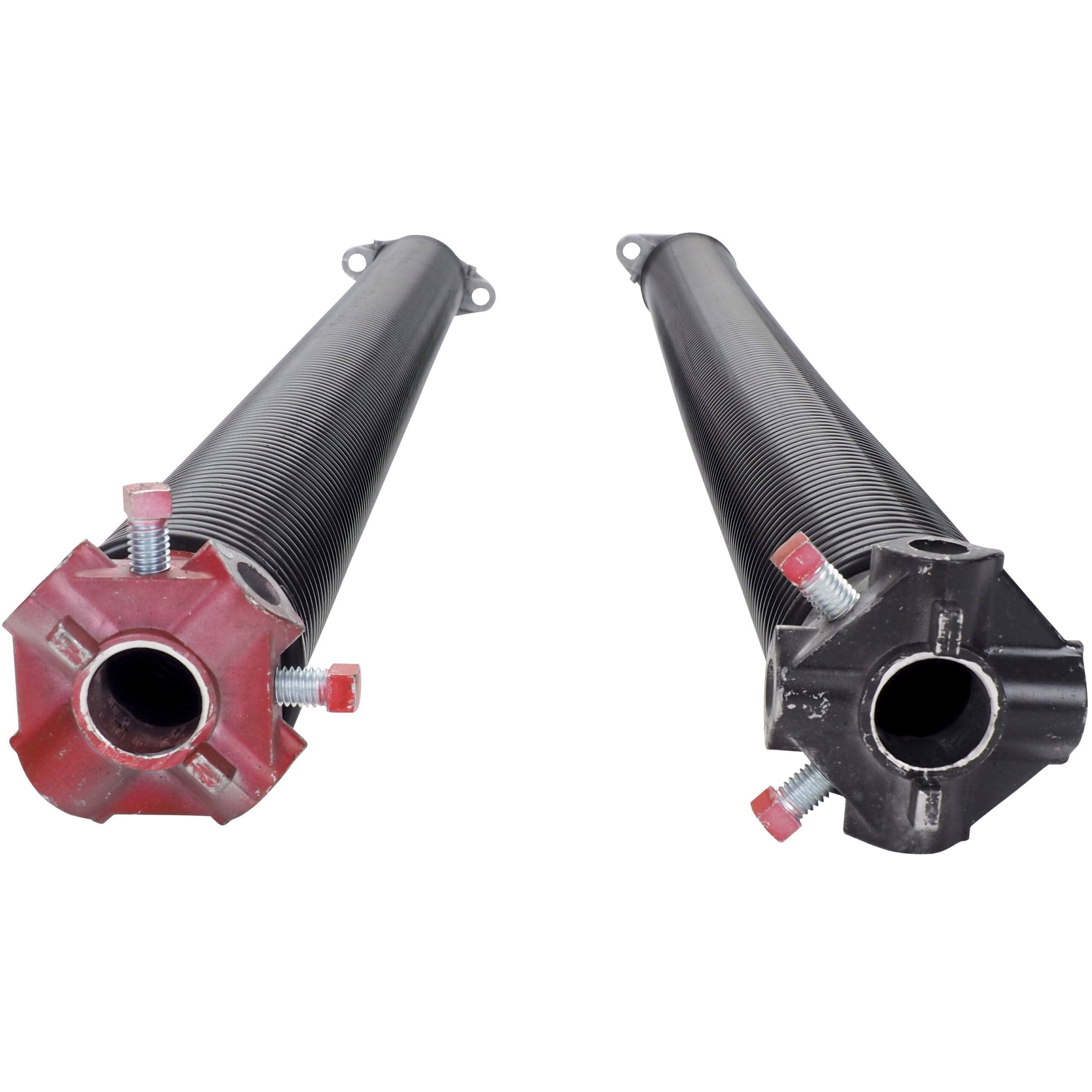

Garage Door Torsion Springs Replacements
Each of our spring sets, or code, suit a particular size of door. To find your correct spring code, please measure the height and width of your garage door, then compare it to our chart below. Each Spring Code will come with the correct number of springs required. Certain door sizes only require a single springs, this is indicated below.
|Garage Door Dimensions||Spring Code||# Of Springs|
|1920 to 2180 High x 3001 to 3200 Wide||Code 2||1x Included|
|1920 to 2180 High x 4151 to 4450 Wide||Code 3||2x Included|
|1920 to 2180 High x 4451 to 4950 Wide||Code 4||2x Included|
|1920 to 2180 High x 4951 to 5510 Wide||Code 5||2x Included|
|2200 to 2450 High x 3201 to 3700 Wide||Code 7||2x Included|
|2200 to 2450 High x 2501 to 2800 Wide||Code 8s||1x Included|
|2200 to 2450 High x 4151 to 4950 Wide||Code 8||2x Included|
|2200 to 2450 High x 4951 to 5510 Wide||Code 9||2x Included|
|2451 to 2725 High x 4151 to 4450 Wide||Code 10||2x Included|
|2451 to 2725 High x 4451 to 4950 Wide||Code 11||2x Included|
|2451 to 2725 High x 4951 to 5510 Wide||Code 12||2x Included|
Winding Bars are not included, but are highly recommended.
We offer a range of different size springs, to suit a wide range of standard garage doors. We define a standard garage door as being a sectional panel door having 3-6 sections, with no insulation, cladding or timber additions that add weight to the door.
Garage Door Torsion Spring Safety & Installation
It is important to understand that installing garage door springs can be incredibly dangerous if installed incorrectly. Please ensure you wear proper PPE, including but not limited to safety glasses & gloves, with no loose clothing. We recommend that only a qualified, licensed professional install or adjust torsion springs by carefully and properly following the manufacturer’s instructions also using the proper specialized tools required.
For informational purposes, you can see how garage door springs can be replaced on this video here.
Garage Door Torsion Spring Specifications
- Lubrication of the critical moving parts including chain drive, tracks, wheels or cable drum. This ensures your door travels smoothly and quietly.
- Tightening of door mounting points along with door bolts, screws, cables and connectors. Delivering integrity of the door and tracks and preventing failure associated with parts pulling apart or away from fixing points.
- Adjustment of spring tension to limit ‘spring fatigue’ or undue strain on the opener, reducing likelihood of failure over time.
- Adjustment of opener travel limits and force margin to ensure the door opens and closes to specification, without causing damage to the door or opener.
- Assessment and adjustment of safety components and accessories including safety beams, assessment of the door alignment and the diagnosis of irregular operation remedies.
|Country of Manufacture||New Zealand|
|Expected Life||15 Years (6 Cycles Per Day)|

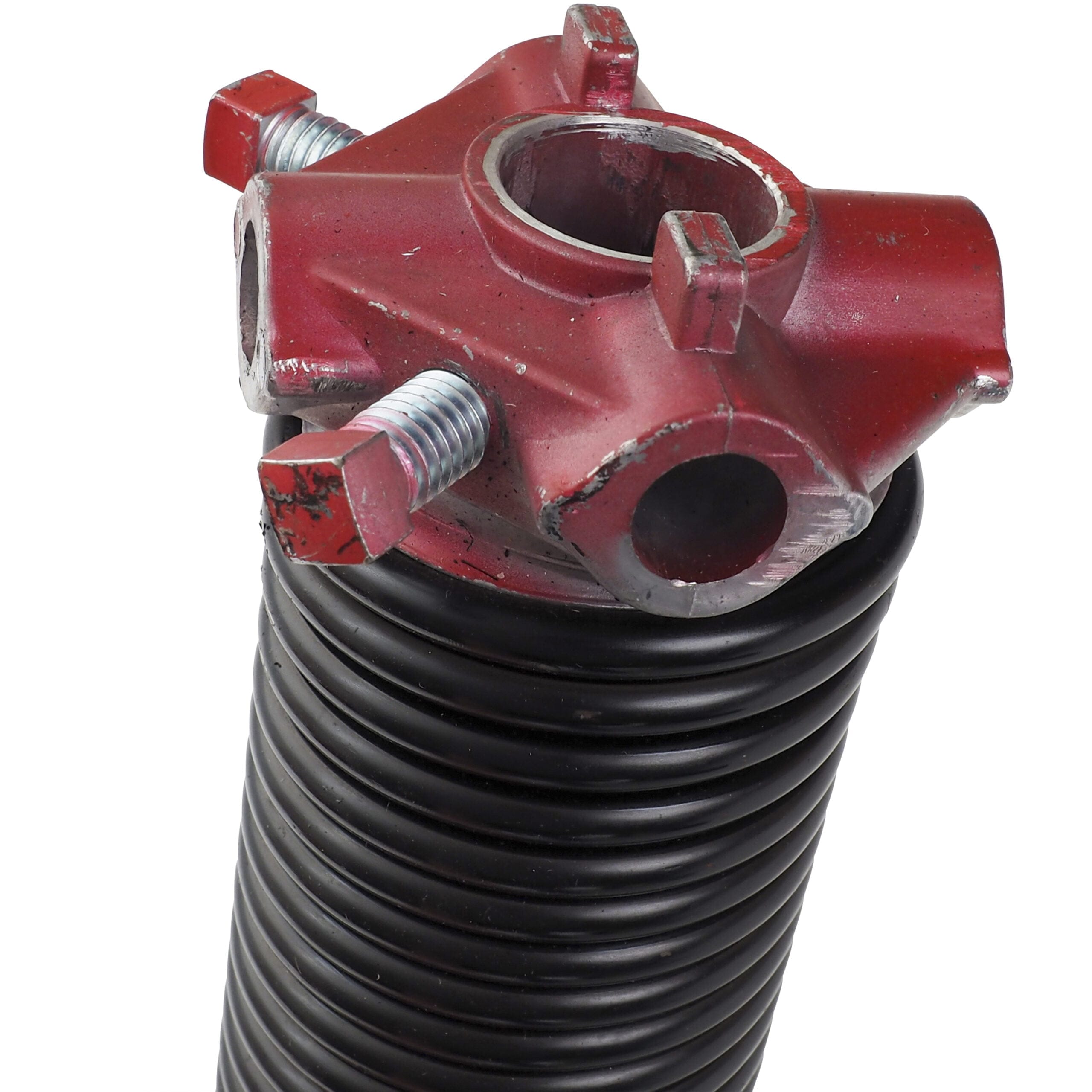

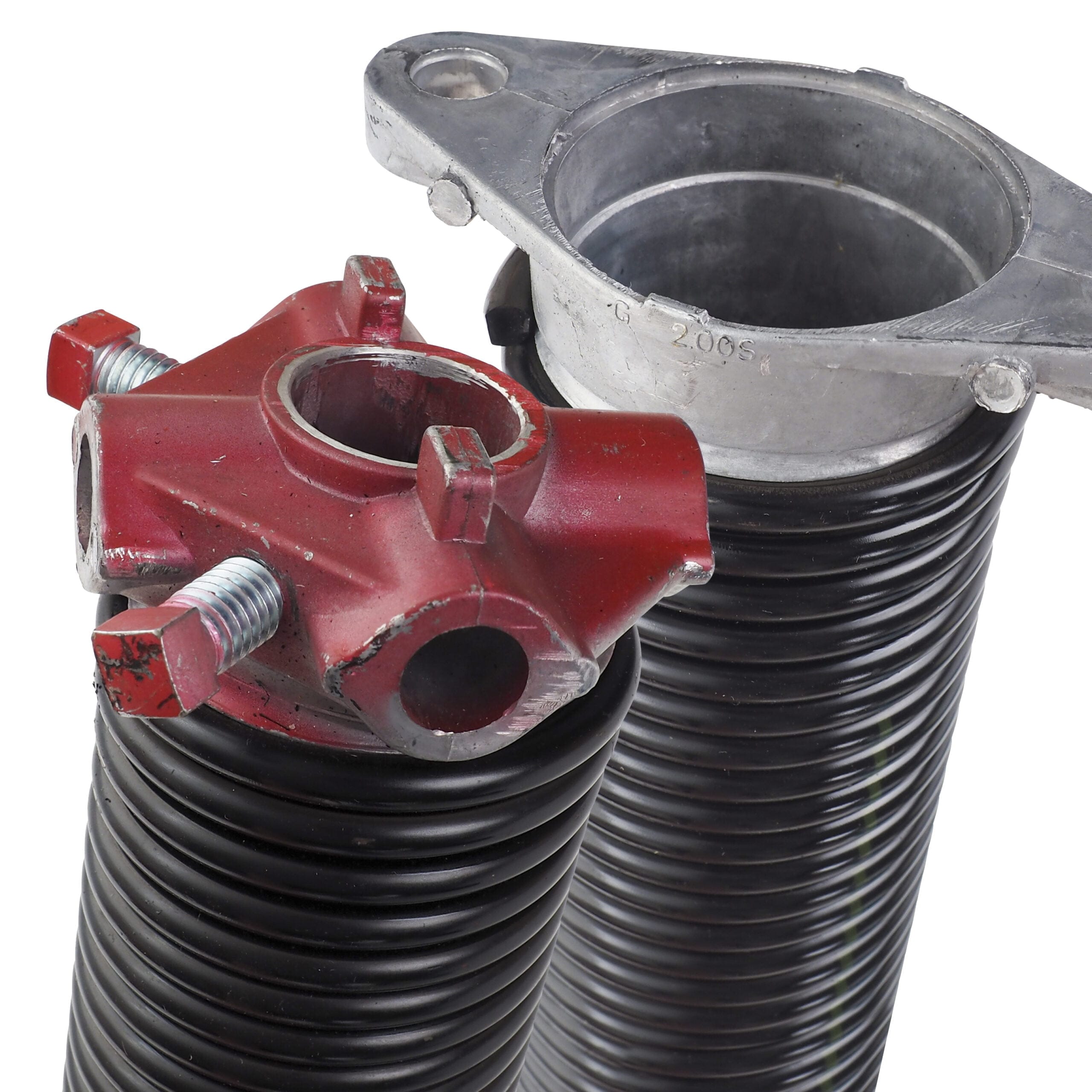

|Material||Oil Tempered Steel, Aluminium Cast Anchor|
|Finish||Rust Resistant Black Enamel|
Garage Torsion Springs
Garage door torsion springs are an important part of your garage door. For one thing, they do all of the heavy lifting. When you press the button on your garage door opener remote, it doesn’t open the door itself—the power opened by the motor merely activates the torsion springs, which pull the door up along the tracks.
The major benefit of a torsion spring system is that the door moves much more smoothly. With torsion springs, high-tension steel rods are used instead of extension springs, providing a smoother opening and closing action.
The sectional nature of the door is another advantage to this design. Most roll-up doors are made from one piece of thin metal that can bend, dent or warp over time. That’s not so with sectional garage doors, which are comprised of several interlocking metal panels. This allows for greater stability and durability and also helps them to better withstand impacts during severe weather events, such as hail storms.
Another advantage to a sectional door is that it is more versatile in terms of how it can be opened and closed. Garage door openers can be installed either overhead or on the side of your garage door frame. It’s also possible to install an opener on the wall inside your garage if you have a side-hinged door, which opens horizontally along a track instead of vertically like most traditional garage doors do.
The garage torsion spring is the mechanical device that lifts most of the weight of a garage door so that the door can be opened manually or by an electric opener. The torsion spring is mounted on a metal rod, called a torsion tube, which is suspended from the header wall above the garage door. The springs are coil-shaped and made of metal, with either ends anchored to an end bearing plate or attached to two cable drums.Torsion springs are a common garage door parts replacement. When springs become weak or broken, it can cause a lot of problems for the garage door and may start to damage your home. Because they do this heavy lifting every time you open and close your garage door, garage torsion springs are under a lot of tension and are very dangerous to handle without the proper training.
Because they do this heavy lifting every time you open and close your garage door, garage torsion springs are under a lot of tension and are very dangerous to handle without the proper training.
Garage doors are heavy and lift using springs that are under extreme pressure. These springs require special tools and knowledge to replace. To prevent injury, we recommend that you work with a professional garage door technician. We also recommend measuring the existing springs and looking in our catalog for the springs we have listed for your door weight to find the closest match. Please feel free to contact us for assistance with selecting a new torsion spring.
Garage door torsion springs experience a lot of wear and tear because they have to bear the weight of the entire garage door. That includes the panels, hardware, and anything else on the garage door itself. When something happens to your garage door, it’s usually these springs that end up breaking first. They’re also under a lot of tension — which is why they can be dangerous if you don’t know what you’re doing when you replace them.
Torsion springs, extension springs, and related door hardware can cause serious injury or death if not handled and installed properly. Professional installation is recommended.
Purchase your garage torsion spring with us
Get garage torsion springs with us. They’re a perfect choice to upgrade any garage door. We carry various types such as sectional and more. Offering the latest styles and patterns at reasonable prices and made of high-quality materials. Contact us today!
