Elsema PCR43305R 5-Channel Penta Receiver Specifications
| Frequency Range | 433.10 to 434.70MHz with Frequency Hopping |
| Coding Options | 12-Way Dip Switch or Encrypted Coding |
| Relay Outputs | 5 Independent Relay Outputs |
| Remote Compatibility | PentaFOB® and PentaCODE® remotes |
| Output Modes | Momentary, Latching, and Security Latching |
| Signal Reliability | Antenna Diversity for Extended Range |
| Operating Voltage | 12-24V AC/DC |
| Diagnostic LEDs | Power, Reception, and Relay Activation |
Elsema PCR43305R 5-Channel Receiver Compatibility
- Works with Elsema’s PentaFOB® and PentaCODE® remotes
- Compatible with gate openers, garage doors, lighting, and industrial automation
- Seamlessly pairs with multiple remotes for large-scale installations
Elsema PCR43305R 5-Channel Receiver Features

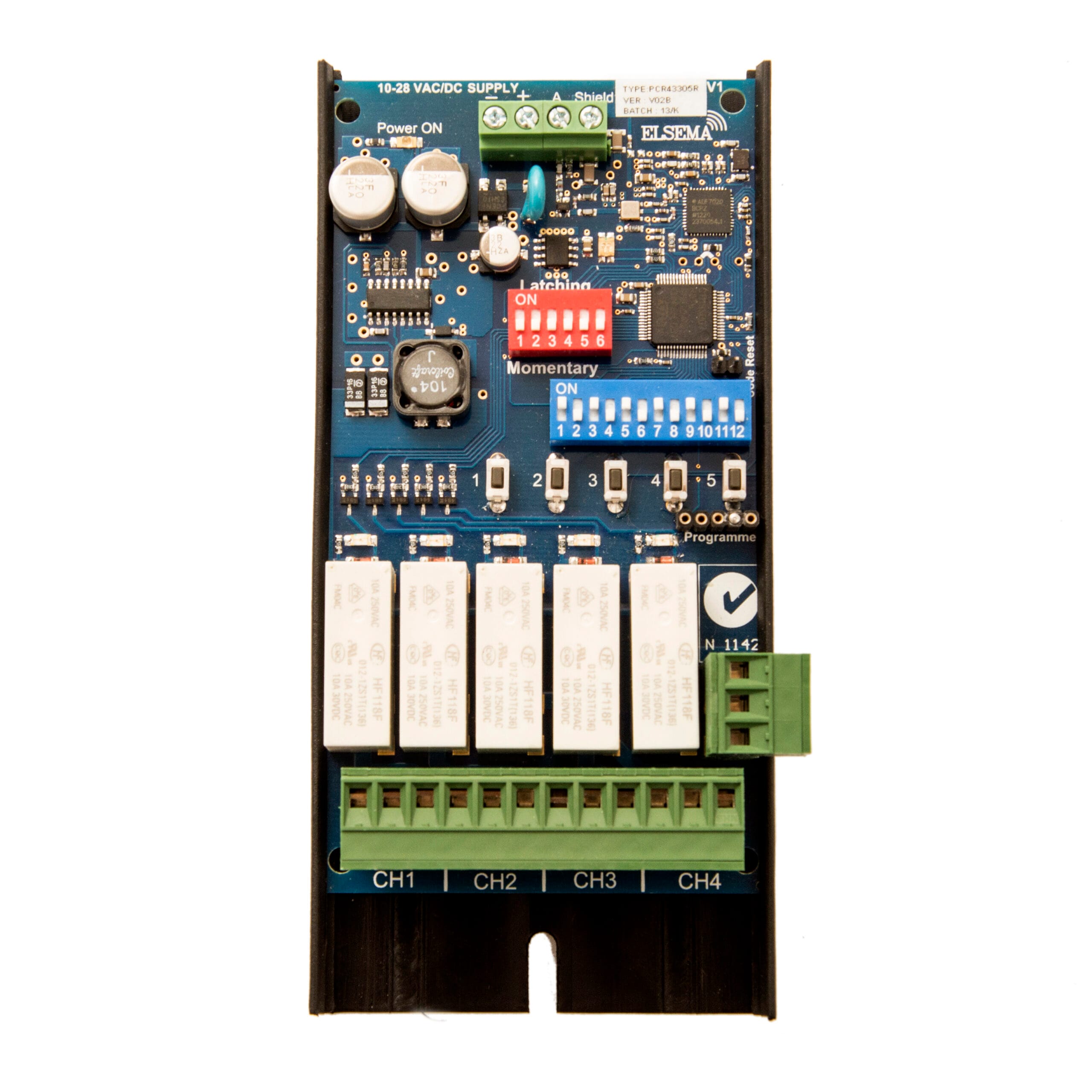

The **Elsema PCR43305R 5-Channel Penta Receiver** is a highly versatile solution for secure, wireless control. Operating in the 433MHz frequency range with advanced frequency hopping, this receiver minimizes interference, ensuring stable communication. Designed for ease of use in diverse applications like automatic gate openers, garage doors, and machinery control, the PCR43305R provides flexibility with five relay outputs, each programmable in momentary, latching, or security latching modes.
This receiver supports unlimited pairing with Elsema’s PentaFOB® and PentaCODE® remotes, making it an excellent choice for environments needing multi-user access. The dual coding options allow users to choose between a 12-way dip switch or encrypted coding with over 17 billion combinations for enhanced security. Antenna diversity technology extends range and reliability, making this receiver suitable for short and long-range applications alike. Equipped with on-board diagnostic LEDs for easy troubleshooting, the PCR43305R simplifies setup and maintenance.
With a wide operating voltage range (12-24V AC/DC) and low power consumption, this receiver is ideal for both commercial and industrial uses, including keyless access control, home automation, and factory machinery control.
- Secure Communication: Frequency hopping technology ensures interference-free communication in the 433MHz range.
- Diverse Coding Options: 12-way dip switch or encrypted coding with over 17 billion combinations for added security.
- Flexible Output Modes: Momentary, latching, and security latching modes for varied applications.
- Enhanced Range: Antenna diversity provides robust and extended range.
- Wide Voltage Range: Supports 12-24V AC/DC, ideal for various power setups.
- Diagnostic LEDs: On-board LEDs for power, signal reception, and relay activation aid troubleshooting.
