Elsema PCR43304R Receiver Specifications
| Receiver Dimensions | 13 x 7 x 2 (cm) |
| Receiver Weight | -g |
| Manufacturer | Elsema |
| Model Number | PCR43304R |
| Remote Encryption | PentaCode & PentaFob |
| Connection Type | Wired |
| Warranty | 2 Year |
Elsema PCR43304R Receiver Compatibility
This receiver is compatible with both the PentaCode and PentaFob series of Elsema remotes. The PentaCODE® dual coding system allows you to program a remote control using the older dipswitch settings, or via digital ‘Learning’.
Elsema PCR43304R Receiver Features

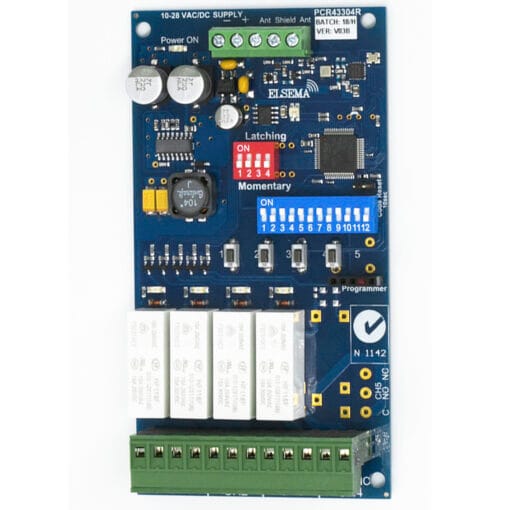

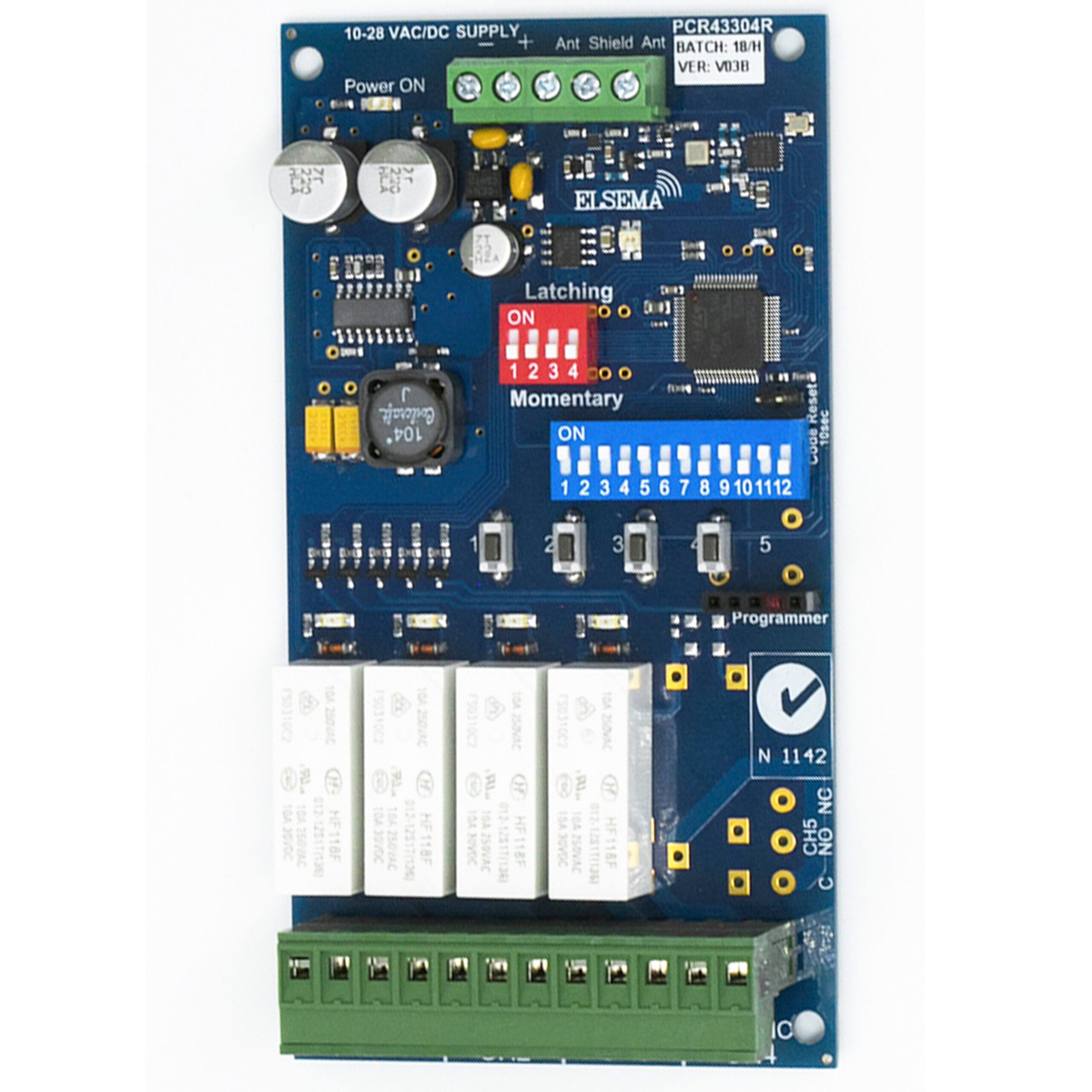

This receiver is compatible with “PentaFOB®” and “PentaCODE®” remotes. The receiver is small and can be easily installed into your existing automatic gate opener or garage door controls. Other applications include light control, security shutters or anywhere else you need a wireless signal to transmit a contact closure.
The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.
With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.
- Coding using 12-way dipswitch or digital codes
- Momentary and Latching modes are user selectable
- Antenna diversity for robust link with extended range
- Compatible with PentaFOB® and PentaCODE® remotes
- Narrow-band hopping transmission across multiple channel frequencies (433.1MHz to 434.7MHz)
