Elsema PCR43302R 2-Channel Receiver Specifications
| Frequency Range | 433.10 to 434.70MHz with Frequency Hopping |
| Coding Options | 12-Way Dip Switch or Encrypted Coding |
| Relay Outputs | 2 Channels |
| Remote Compatibility | PentaFOB® and PentaCODE® remotes |
| Output Modes | Momentary, Latching, Delayed Off, On-Off, Roller Shutter |
| Signal Reliability | Antenna Diversity for Extended Range |
| Operating Voltage | Wide Voltage Range with Low Current Consumption |
| Diagnostic LEDs | Power, Reception, and Relay Status |
Elsema PCR43302R 2-Channel Receiver Compatibility
- Works seamlessly with Elsema PentaFOB® and PentaCODE® remotes
- Ideal for gates, garage doors, lighting, and home automation systems
- Perfect for both residential and commercial applications
Elsema PCR43302R 2-Channel Receiver Features

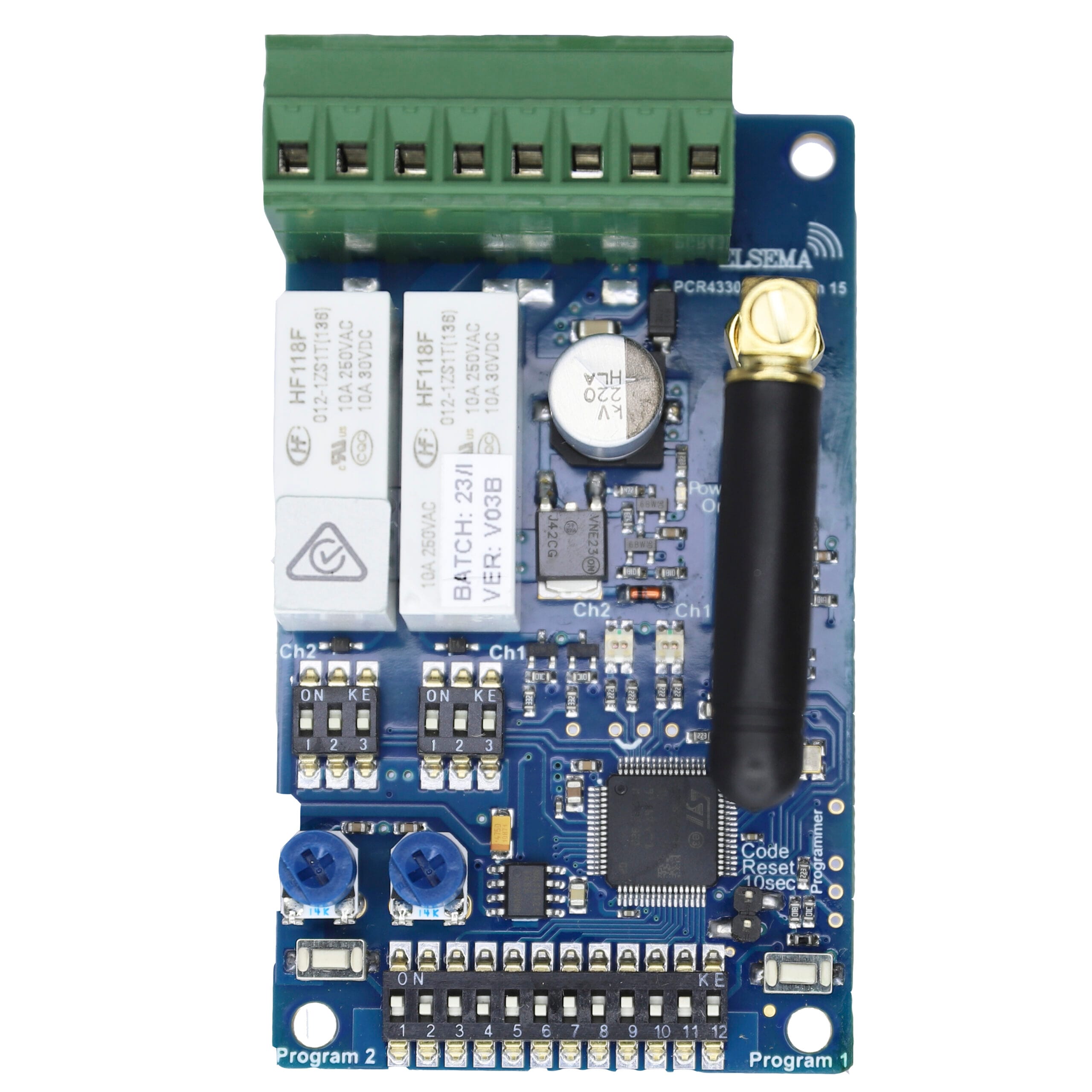

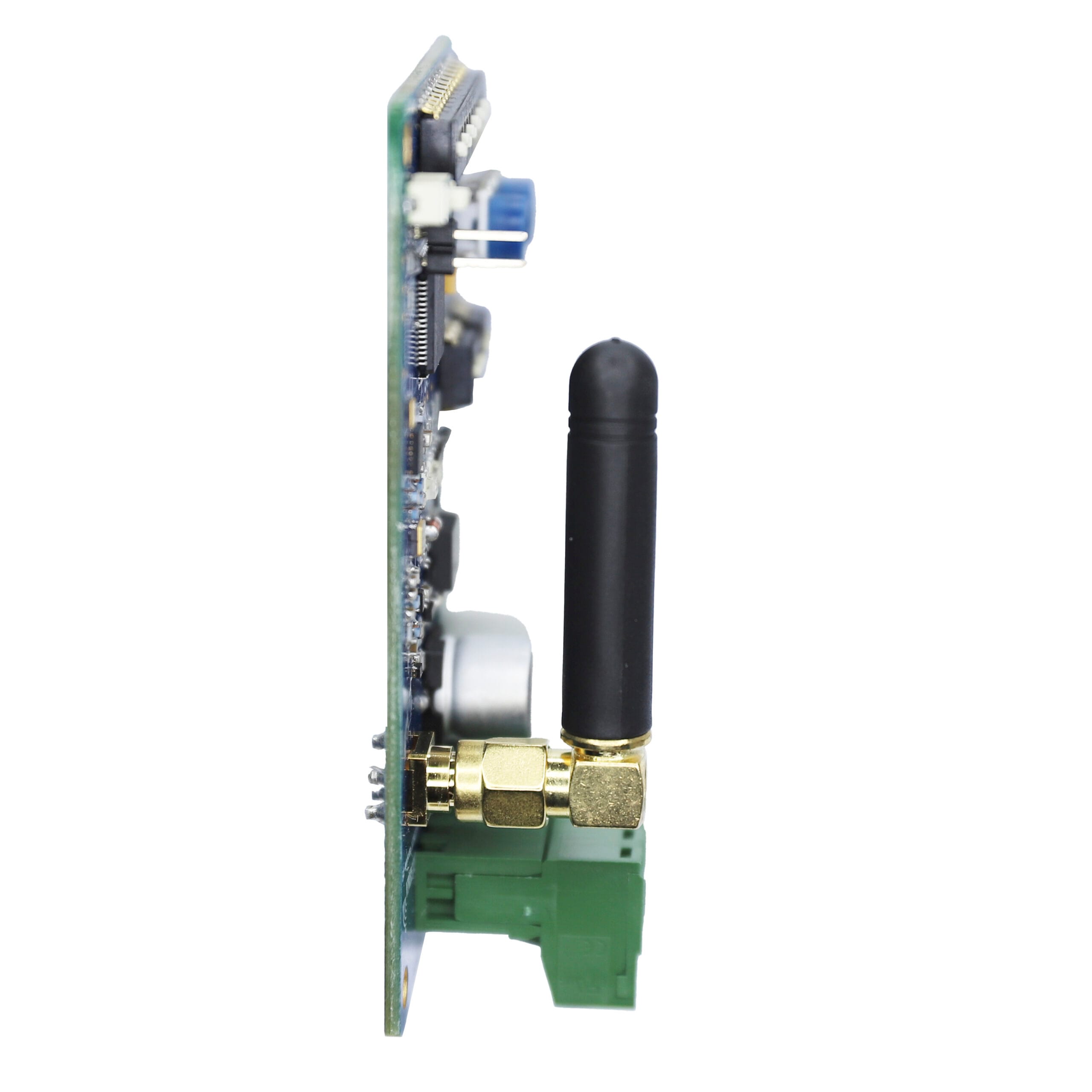

The Elsema PCR43302R 2-Channel Receiver is a powerful, versatile wireless receiver designed for various applications, including automatic gates, garage doors, lighting, and security systems. Operating in the 433MHz frequency range, this receiver uses frequency hopping technology to maintain secure, interference-free communication, ideal for settings with multiple wireless devices.
With a dual coding system, users have the option of quick 12-way dip switch coding or highly secure encrypted coding with 17 billion unique combinations, making the PCR43302R an excellent choice for high-security installations. Installers can easily add, edit, or delete individual remotes using a programmer, enabling customized control over access and security.
The receiver offers multiple user-selectable output modes—momentary, latching, delayed off, on-off, and roller shutter—suiting a wide range of uses. For example, momentary mode is ideal for brief activations, while roller shutter mode allows for open/stop/close cycles, perfect for blinds or shutters. Antenna diversity supports robust, long-range connections, ensuring reliable performance even in areas with obstructions.
- Secure Frequency Hopping: Operates between 433.10 to 434.70MHz, minimizing interference and enhancing security.
- Diverse Coding Options: Choose between quick dip switch coding or encrypted coding with 17 billion combinations.
- Selectable Output Modes: Momentary, latching, delayed off, on-off, and roller shutter modes for versatile applications.
- Enhanced Signal Strength: Antenna diversity allows extended range and reliable communication.
- Unlimited Remote Pairing: Compatible with PentaFOB® and PentaCODE® remotes for multi-user setups.
- Diagnostic LEDs: Power, reception, and relay status LEDs aid in troubleshooting and monitoring.
