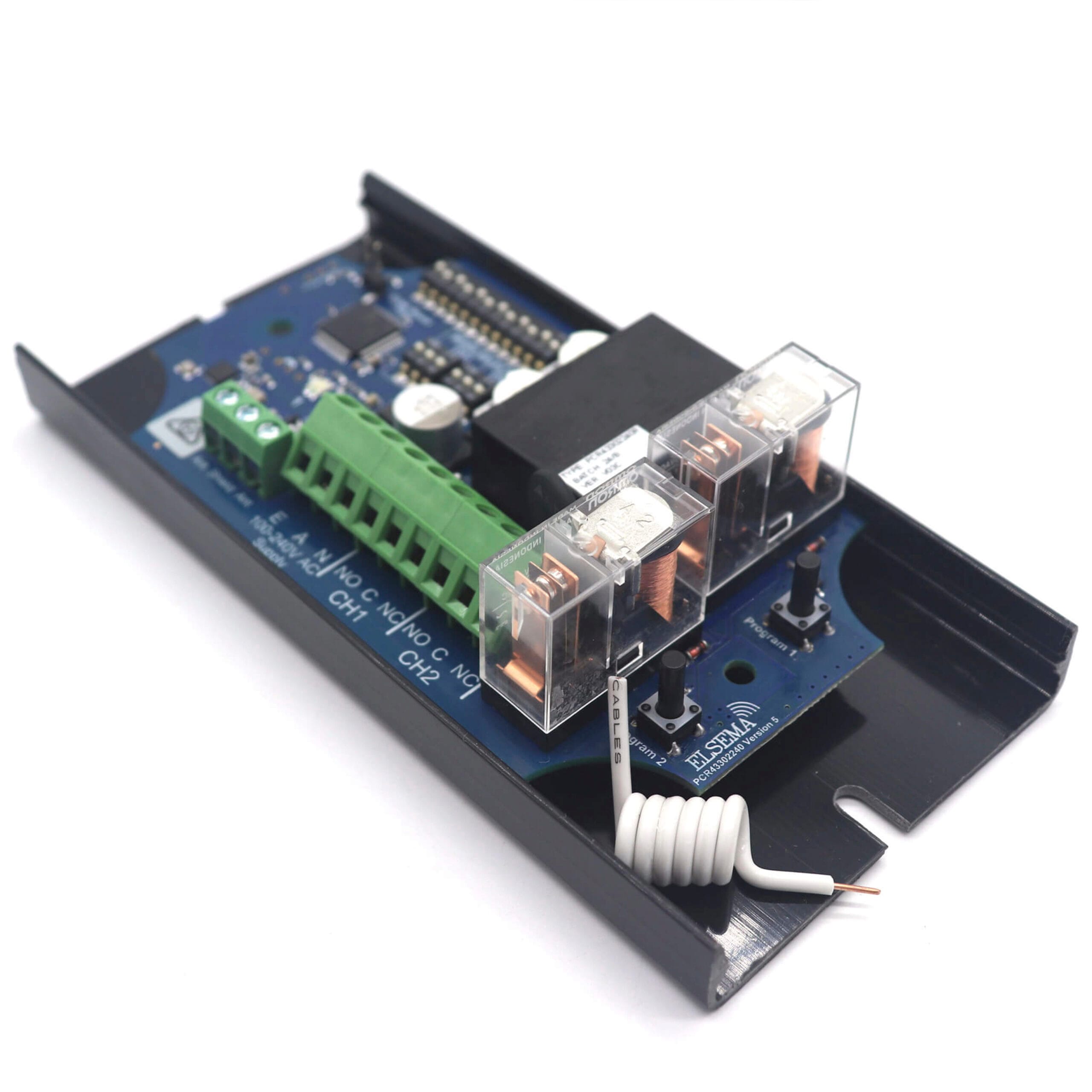

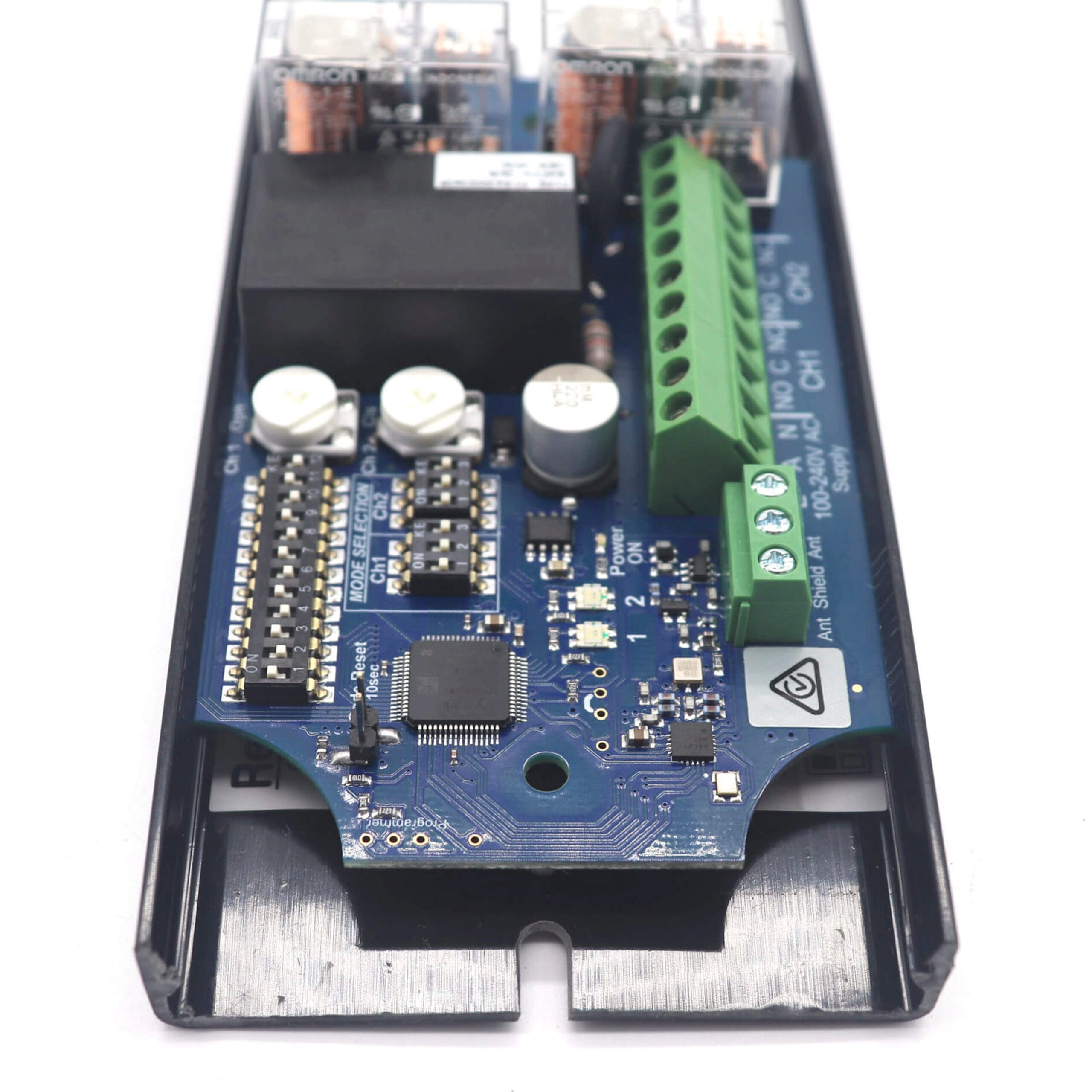

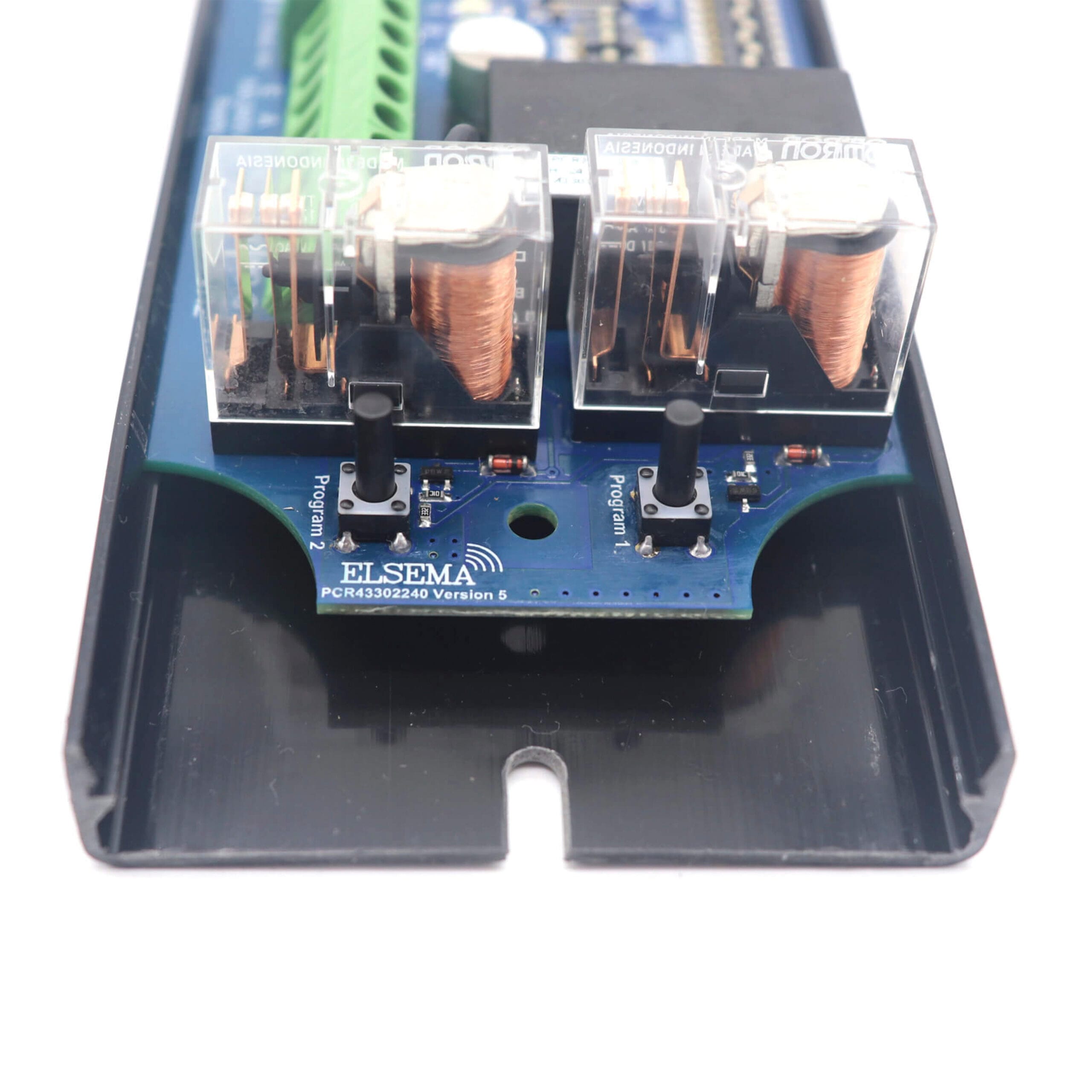

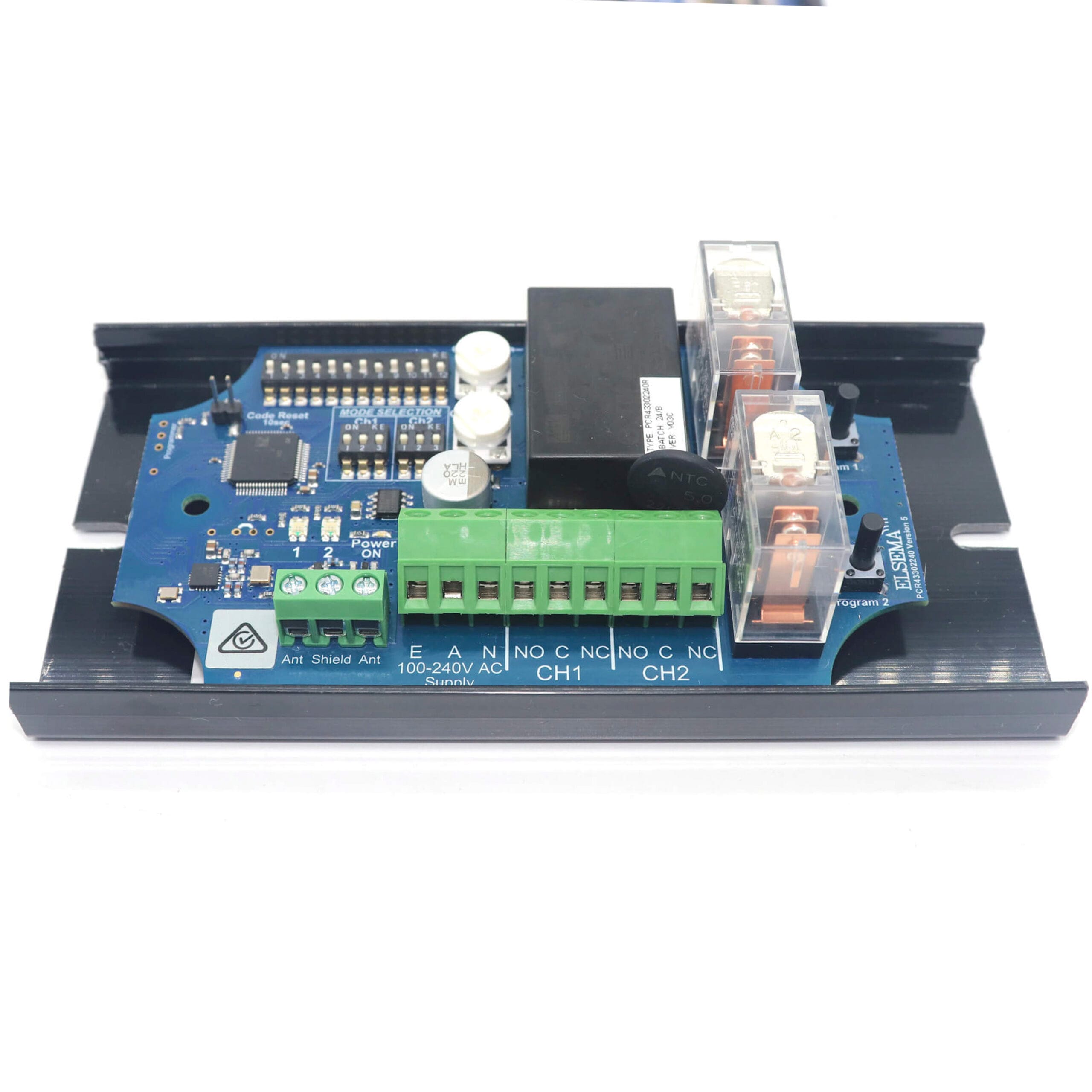

Elsema PCR43302240R 2 Channel 240V Penta Receiver

Elsema PCR43302240R Penta Receiver.
Free Shipping (FREE): 2-10 Business Days
Tracked Shipping ($5.95): 2-5 Business Days
Express Shipping ($12): 1-3 Business Day

$149.95 inc. GST

  • Free shipping on all orders
  • 60 days returns policy
  • Order before 1pm for same day despatch
  • Stuck on finding what you need? Text us!
    0419 198 148

Elsema Penta PCR43302240R 240V 2 Channel Receiver Specifications

Power Supply 100-240V AC Mains Supply
Relay Outputs 2 Independent Outputs (8 Amps, 240V AC)
Frequency Range 433.10 to 434.70MHz with Frequency Hopping
Coding System 12-Way Dip Switch or Encrypted (17 Billion Combinations)
Remote Compatibility PentaFOB® and PentaCODE® remotes
Output Modes Momentary, Latching, Delayed Off, Roller Shutter
Signal Reliability Antenna Diversity
Warranty 2-Year Manufacturer’s Warranty

Elsema Penta PCR43302240R 240V Receiver Compatibility

  • Compatible with FOB433 and PCK remote series
  • Seamlessly integrates with roller shutters, automatic gates, garage doors, and more
  • Ideal for industrial machinery, home automation, and lighting control

Elsema Penta PCR43302240R 240V Receiver Features

The Elsema Penta PCR43302240R 240V 2 Channel Receiver offers robust, wireless control for both industrial and home automation applications. Operating directly on 100-240V AC mains supply, this receiver is equipped with two independent relay outputs, each capable of handling loads up to 8 Amps at 240V AC. It’s suitable for a wide array of applications, from controlling roller shutters and gates to managing machinery in factories and automated systems in warehouses.
With Elsema’s PentaFOB® and PentaCODE® compatibility, the PCR43302240R supports unlimited remote pairings, making it ideal for large-scale installations requiring multiple user access. The receiver’s frequency hopping technology across the 433.10 to 434.70MHz range ensures secure communication and reduces interference. The dual coding system, offering both a 12-way dip switch and encrypted coding, provides versatile security options for different installation needs.

Antenna diversity enhances range and signal reliability, while user-selectable relay output modes—including momentary, latching, delayed off, and roller shutter modes—allow for customized control. This receiver is versatile enough to adapt to demanding industrial environments and flexible enough to be used in home automation.

  • 240V AC Power Supply: Operates directly on mains power, with 2 independent relay outputs rated at 8 Amps.
  • Frequency Hopping: Provides interference-free communication across the 433.10 to 434.70MHz range.
  • Diverse Coding Options: Supports 12-way dip switch and encrypted coding, with over 17 billion combinations for enhanced security.
  • Remote Compatibility: Works with PentaFOB® and PentaCODE® remotes, allowing unlimited remote pairings.
  • Selectable Output Modes: Choose from momentary, latching, delayed off, and roller shutter modes for versatile operation.
  • Signal Reliability: Antenna diversity ensures extended range and consistent signal reception.
Weight 0.5 kg
Dimensions 23 × 20 × 5 cm
