Elsema PCR43301240RE Receiver Specifications
| Receiver Dimensions | 12.5 x 8 x 7.5 (cm) |
| Receiver Weight | -g |
| Manufacturer | Elsema |
| Model Number | PCR43301RE |
| Remote Encryption | PentaCode & PentaFob |
| Connection Type | Wired |
| Warranty | 2 Year |
Elsema PCR43301240RE Receiver Compatibility
This receiver is compatible with both the PentaCode and PentaFob series of Elsema remotes. The PentaCODE® dual coding system allows you to program a remote control using the older dipswitch settings, or via digital ‘Learning’.
Elsema PCR43301240RE Receiver Features

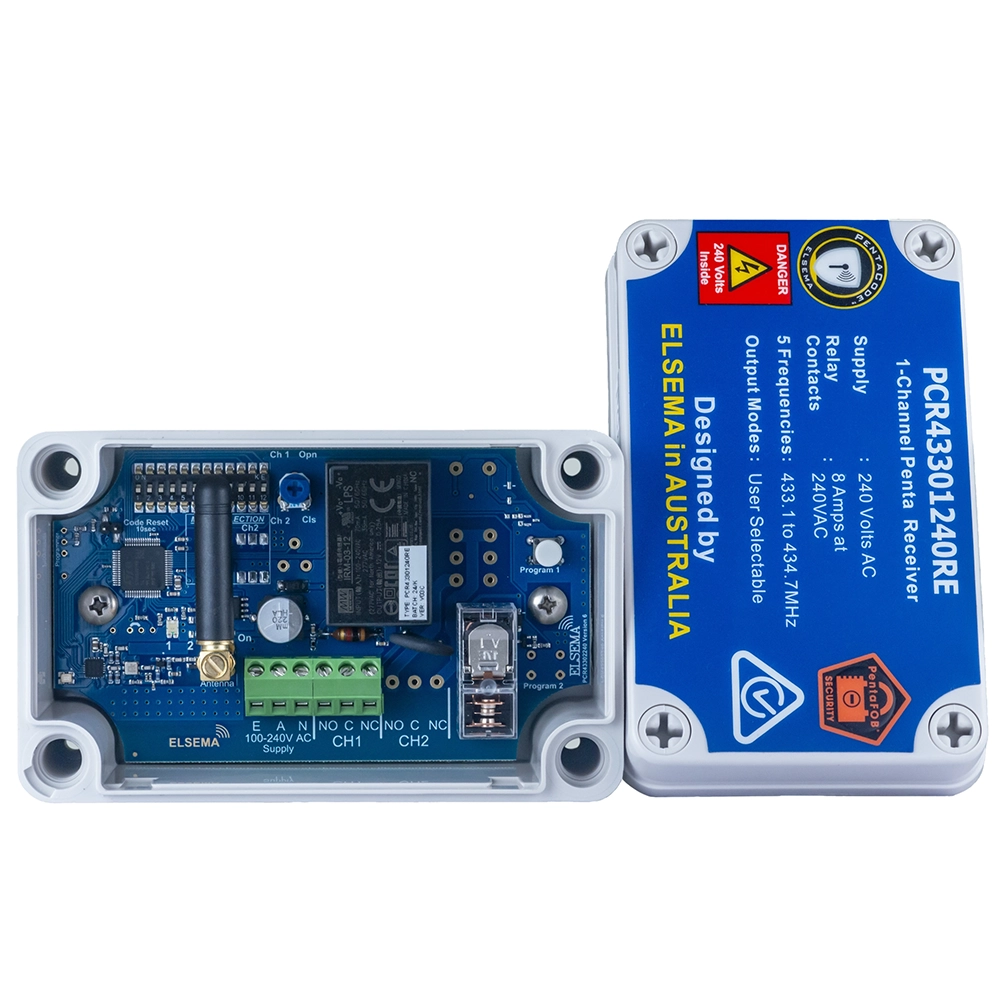

This receiver is wired directly to the mains and powered by 240VAC. PentaCODE® and PentaFOB® remote controls work with it. The relay has a switching capacity of 16 Amps at 240 volts AC for loads. Applications include security shutters, light control, and other places where a wireless signal is required to convey a contact closure
With the PentaCODE® dual coding system, the installer has the choice of using one of more than 17 billion encrypted codes or the traditional 12-way dip switch coding.
Simply match the keyring remotes with the dip switch on the receiver using the 12-way dip switch, and it will be coded. When you use the encrypted code, the remote and receiver immediately enter the encrypted coding once you turn off all of the 12-way dip switches. The encrypted coding process is described in the coding instructions.
- Coding using 12-way dipswitch or digital codes
- Momentary and Latching modes are user selectable
- Antenna diversity for robust link with extended range
- Compatible with PentaFOB® and PentaCODE® remotes
- Narrow-band hopping transmission across multiple channel frequencies (433.1MHz to 434.7MHz)
