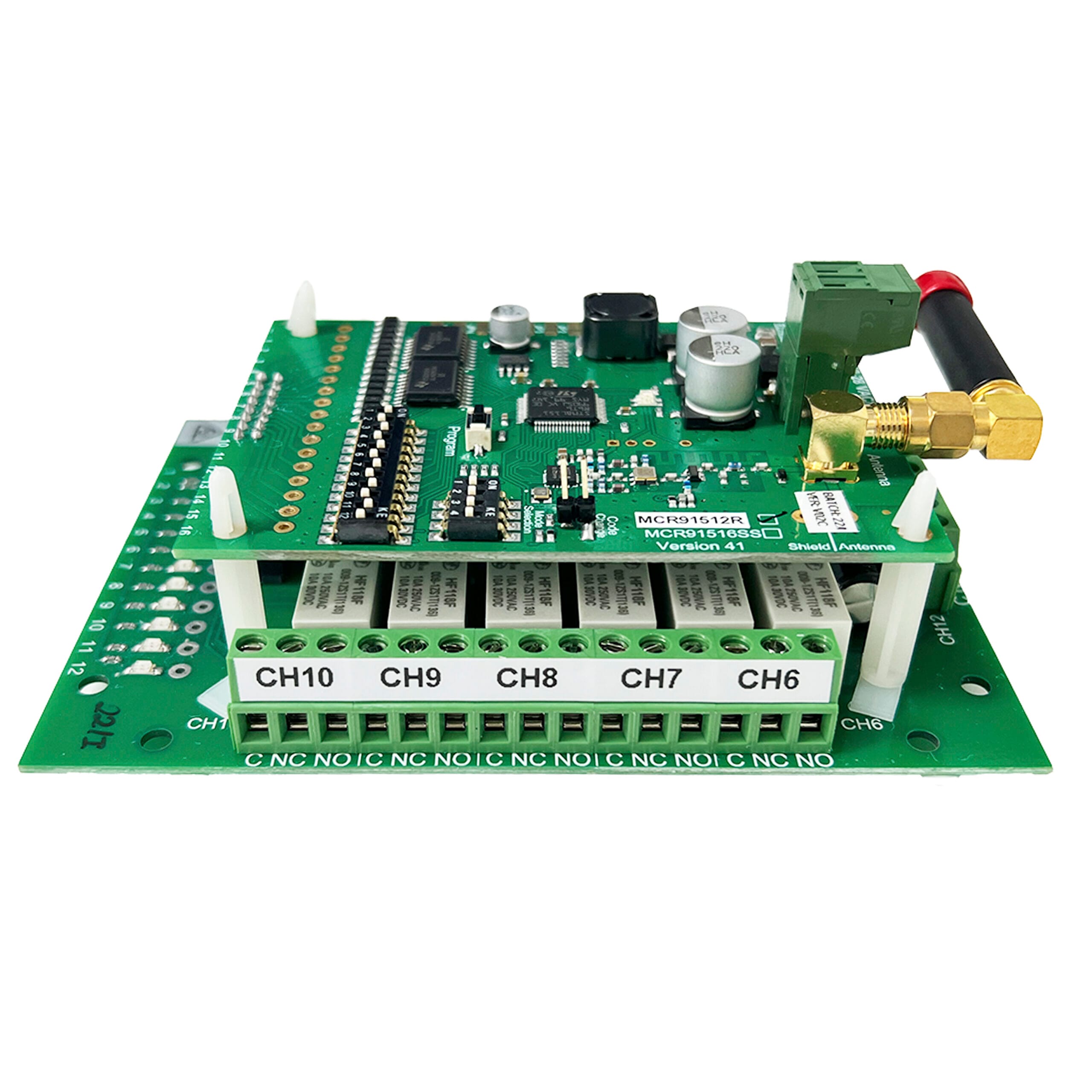

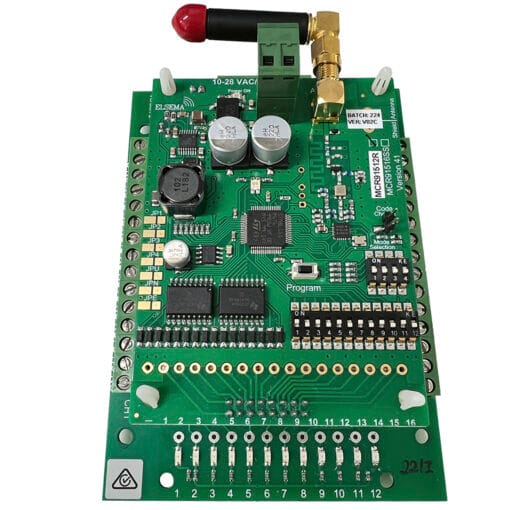

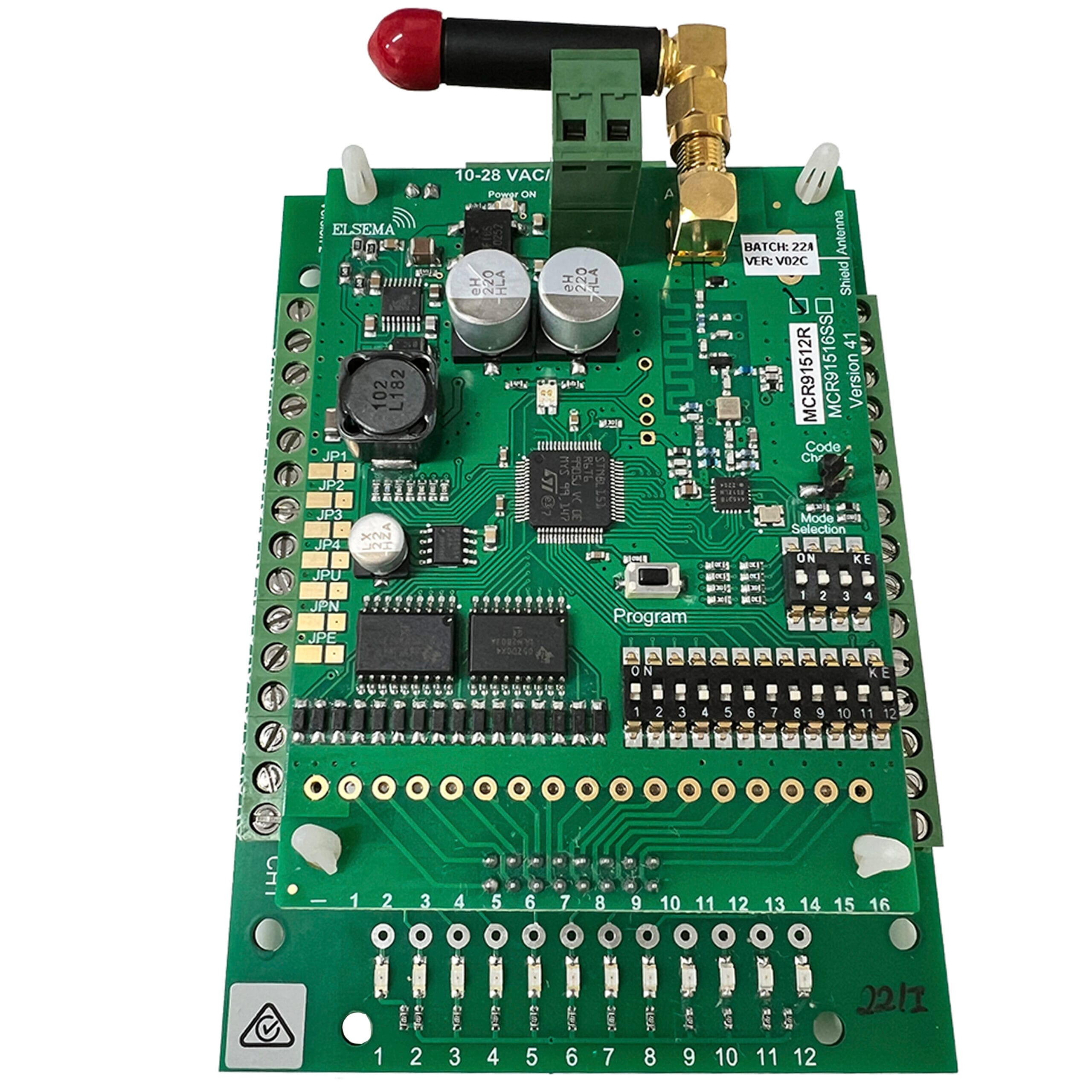

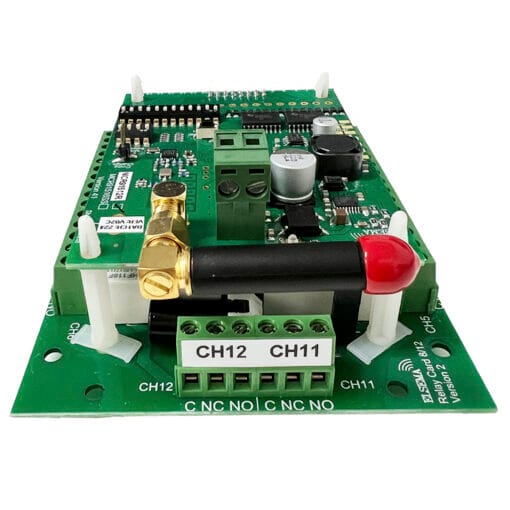

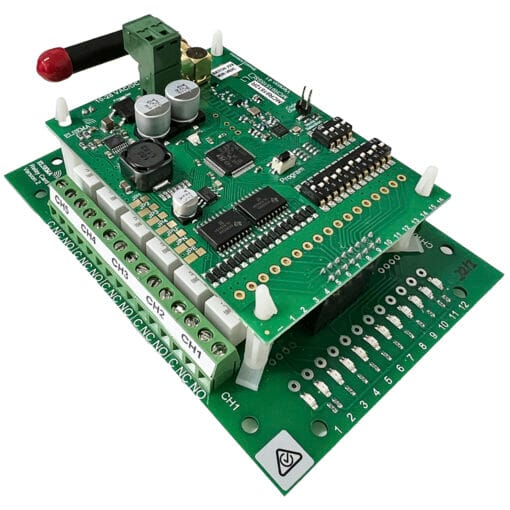

Elsema MCR91512R 12-Channel Receiver Specifications
| Frequency Range | 915-928MHz with Fast Frequency Hopping |
| Coding Options | 12-Way Dip Switch or Encrypted Coding |
| Relay Outputs | 12 Independent Channels |
| Remote Compatibility | Elsema PentaFOB® and PentaCODE® remotes |
| Output Modes | 9 Selectable Modes via 4-Way Dip Switch |
| Signal Indicator | On-board Red LED |
| Operating Voltage | Wide Range with Low Power Consumption |
| Stability | Crystal Controlled |
| Warranty | 2-Year Manufacturer’s Warranty |
Elsema MCR91512R 12-Channel Receiver Compatibility
- Works with Elsema PentaFOB® and PentaCODE® remotes
- Ideal for gates, garage doors, lighting, security systems, and automation setups
- Suitable for both residential and commercial applications
Elsema MCR91512R 12-Channel Receiver Features
The **Elsema MCR91512R 12-Channel Receiver** provides a powerful solution for wireless control applications, ideal for environments with multiple devices operating in close proximity. Utilizing fast frequency hopping between 915 and 928MHz, this receiver minimizes interference, ensuring stable, reliable communication even in settings with numerous wireless devices.
The MCR91512R offers versatile control options with 12 independent relay outputs and a dual coding system. Users can choose between 12-way dip switch coding for straightforward installations or encrypted coding with 17 billion combinations for added security, making it ideal for high-security installations. The receiver’s 9 selectable user modes, configured through a 4-way dip switch, enable tailored functionality for different applications, from access control to industrial automation.
This receiver also features a red LED to indicate signal reception, providing visual feedback during operation. Its wide operating voltage and low power consumption make it energy-efficient and adaptable across varied installation setups. With the ability to pair with an unlimited number of Elsema remotes, the MCR91512R supports large-scale installations and complex multi-user environments.
- Fast Frequency Hopping: Reduces interference and jamming within the 915-928MHz range for secure communication.
- Diverse Coding Options: Supports 12-way dip switch coding or encrypted coding for enhanced security.
- Flexible Output Modes: Offers 9 selectable modes, including momentary and latching, for versatile control.
- Robust Signal Reliability: Crystal-controlled stability with an on-board red LED for signal indication.
- Wide Operating Voltage: Low power consumption across a wide voltage range, making it energy efficient.
