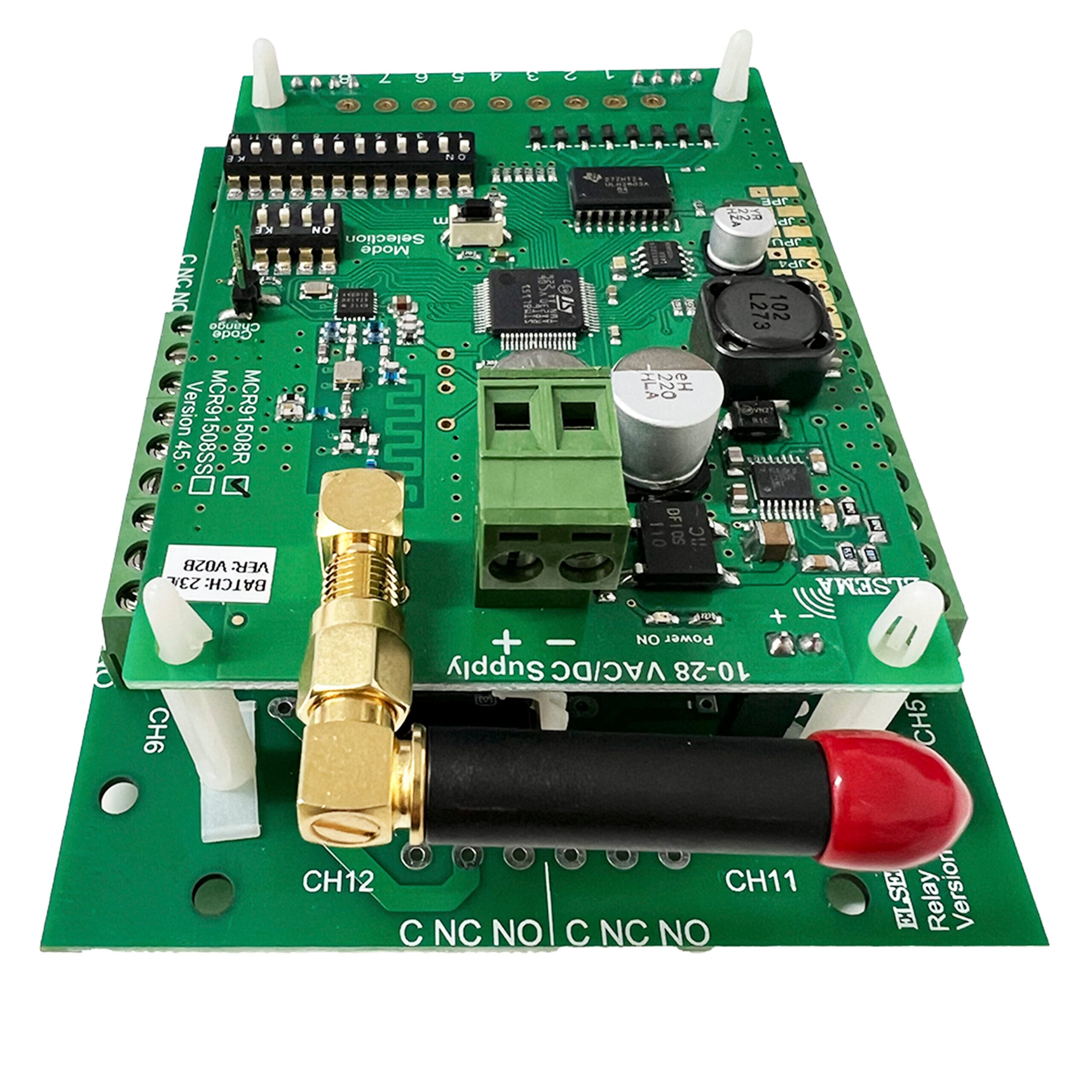

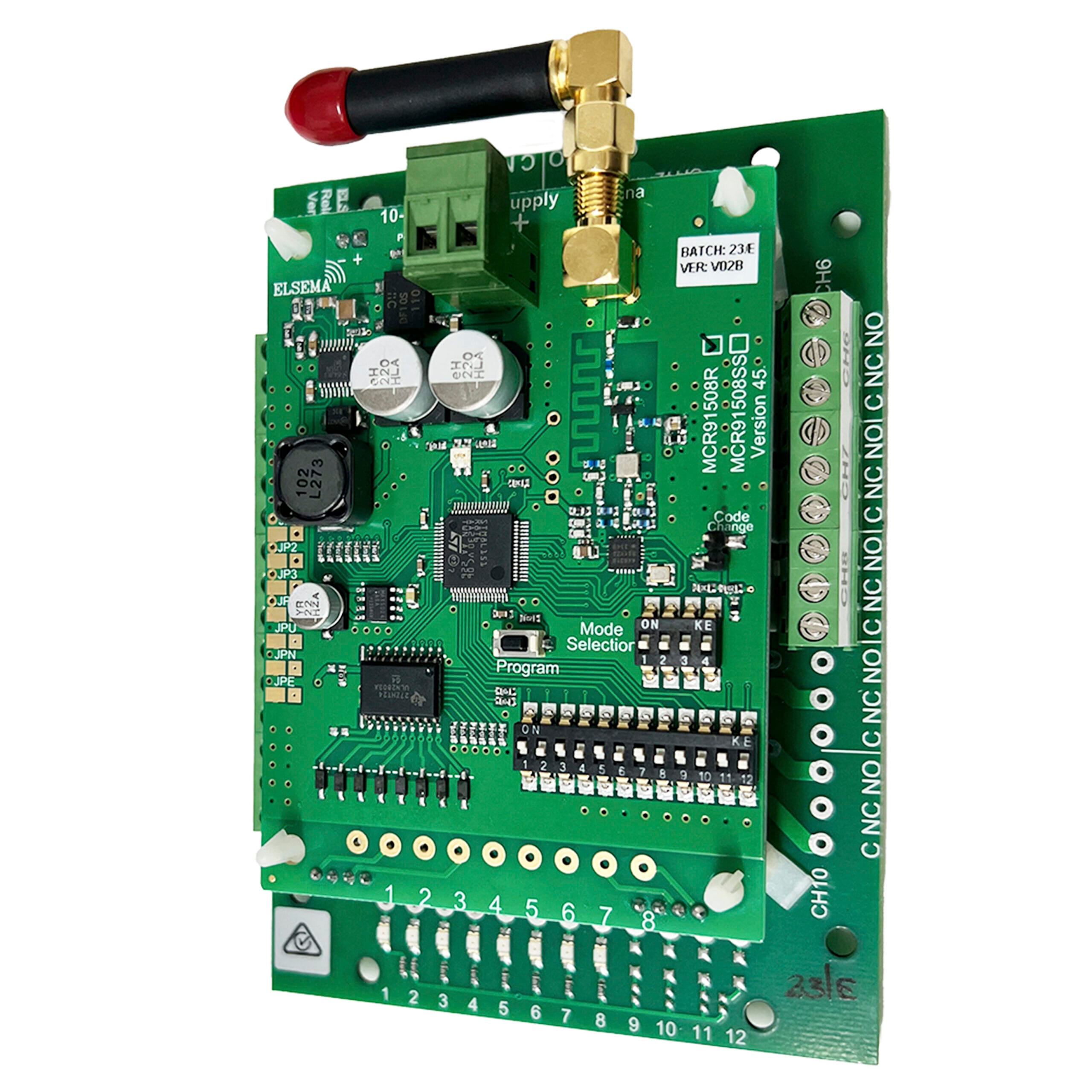

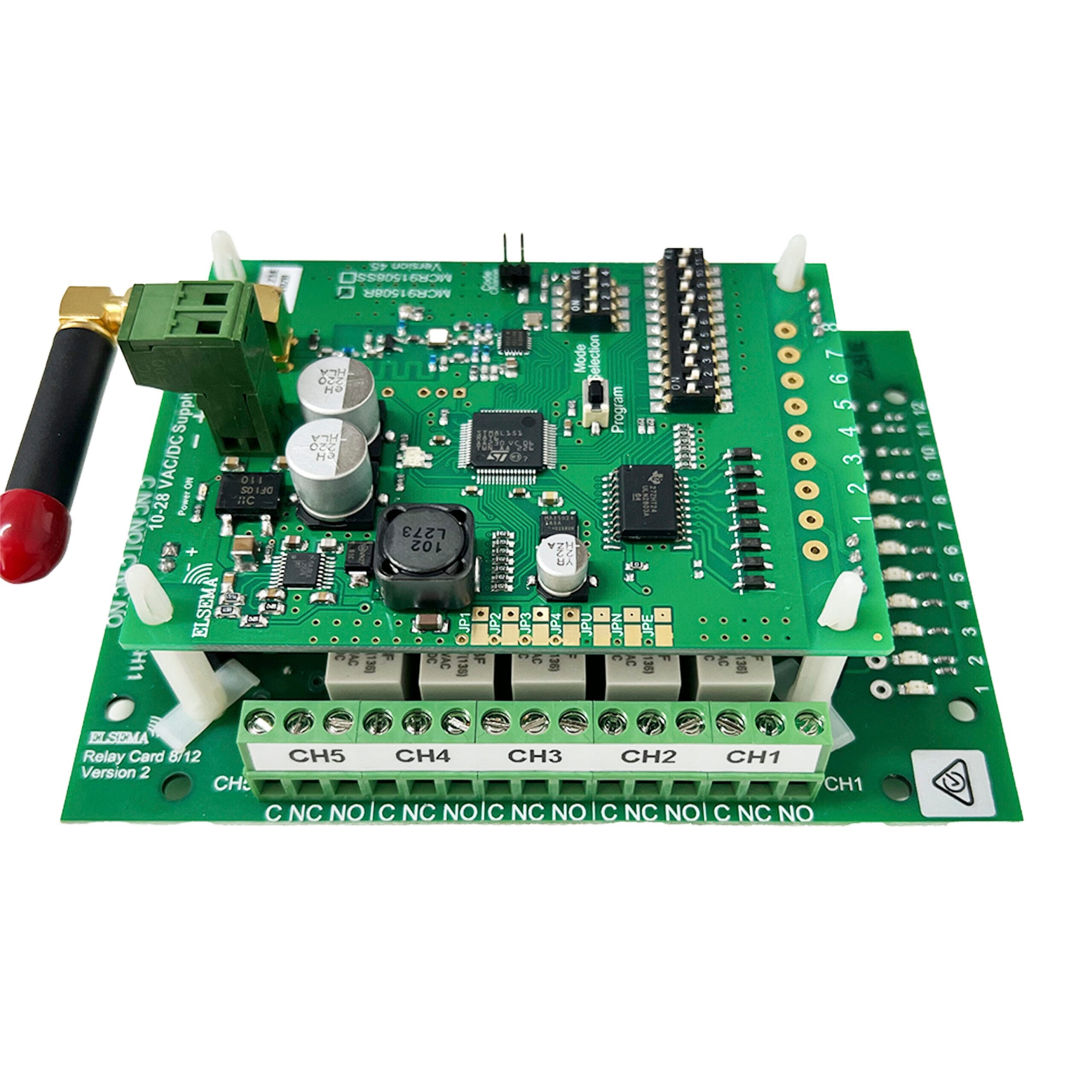

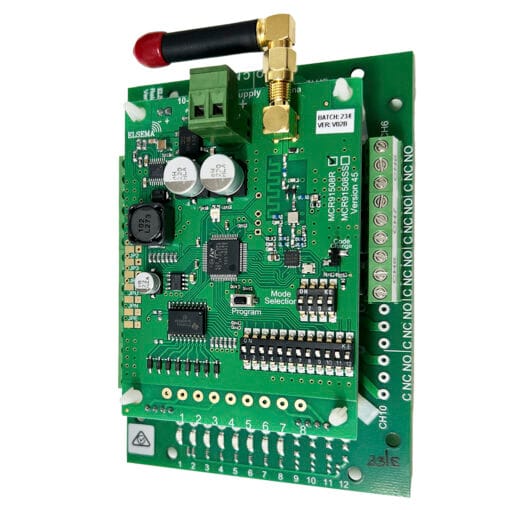

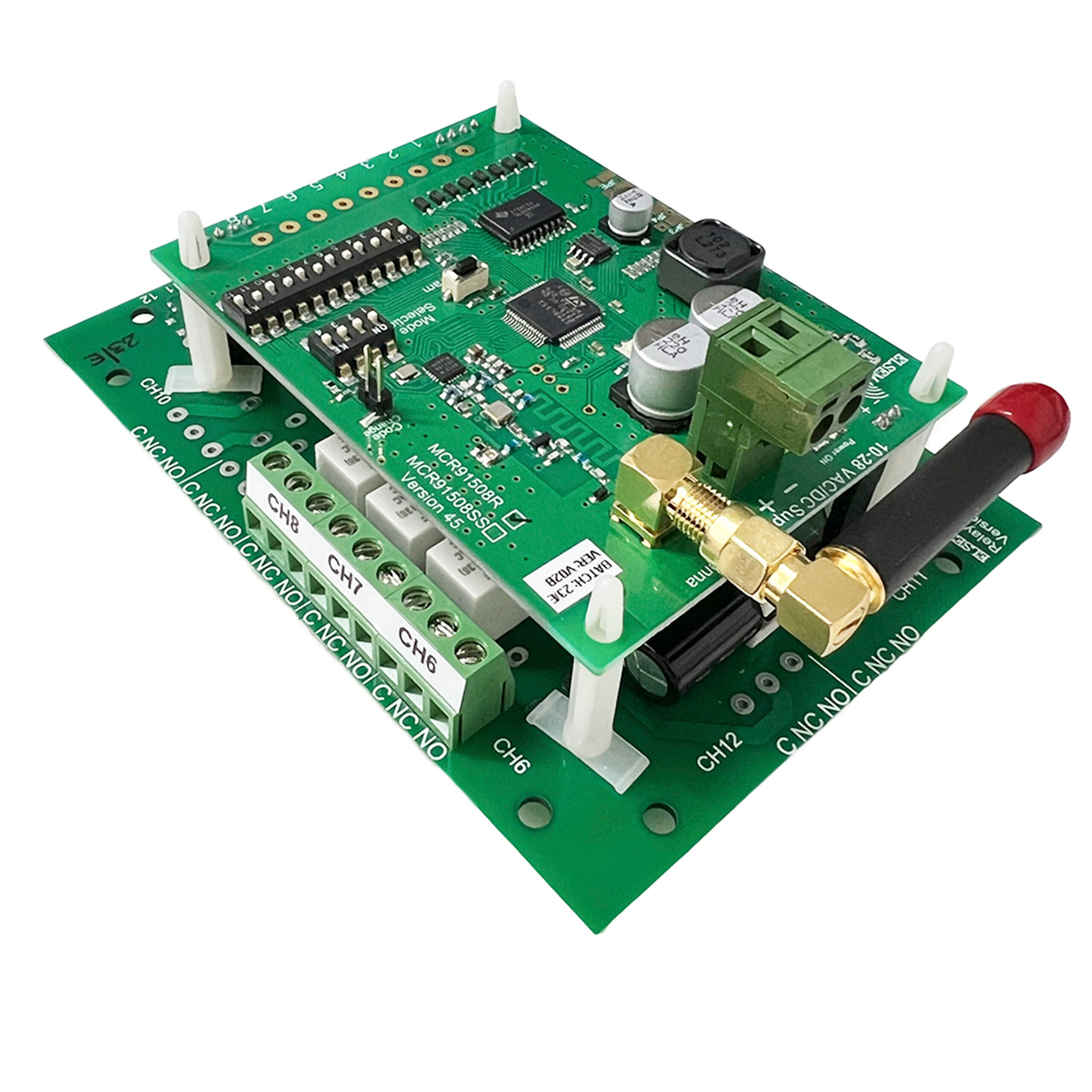

Elsema MultiCode MCR91508R 915MHz 8 Channel Wired Receiver

Elsema MCR91508R 915MHz 8 Channel Receiver Specifications

Elsema MCR91508R 915MHz Receiver Compatibility

• Compatible with Elsema transmitters within the 915MHz frequency range
• Seamless operation with gates, garage doors, lighting systems, and industrial setups
• Designed to handle multiple receivers and transmitters in close proximity without interference

Elsema MCR91508R 915MHz Receiver Features

The **Elsema MCR91508R 915MHz 8 Channel Receiver** offers extensive control with eight channels, making it ideal for complex automation and remote access applications. Equipped with fast frequency hopping between 915 and 928MHz, this receiver significantly reduces interference, ensuring reliable operation even in crowded wireless environments. It supports both traditional 12-way dipswitch coding and encrypted coding, providing flexible security options for sensitive installations. The MCR91508R is energy-efficient with low current consumption and a wide operating voltage, making it highly adaptable across various power setups.
This receiver’s 9 user-selectable modes, controlled via a 4-way dipswitch, offer tailored functionality for diverse needs. Its IP66-rated construction is suited for outdoor and indoor use, providing robust protection in challenging environments. Whether for access control, industrial automation, or remote switching, the Elsema MCR91508R provides reliable, high-performance control for a range of applications.

• Fast Frequency Hopping: Reduces interference or jamming within the 915-928MHz range.
• Flexible Coding Options: 12-way dipswitch or encrypted coding for secure installations.
• Low Power Consumption: Operates across a wide supply voltage range efficiently.
• Signal Reception Indicator: On-board red LED confirms signal activity.
• High Stability: Crystal-controlled design ensures precise and consistent performance.
• 9 User Modes: Selectable via a 4-way dipswitch, allowing customized configurations.
