The Centsys D10 SMART Includes

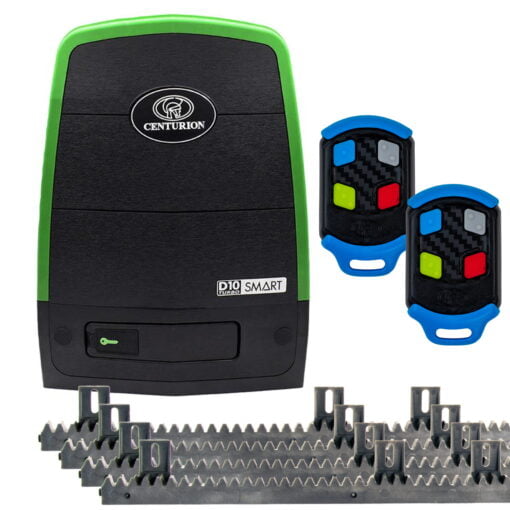

1x Centsys “D10 SMART” Industrial Sliding Gate Opener
2x Centsys Nova Remote Controls
1x Pair of Manual Override Keys
1x Mounting Hardware Pack
Battery Backup System
2 Year Manufacturer Warranty
Built For The Heaviest Gates Centsys Makes
The D10 SMART is the top of the Centsys sliding gate range, rated to 1000kg, double the D6’s 600kg. It suits commercial and heavy industrial sites where the D6 and D5-Evo do not have the reach.
The 24V DC motor runs on battery power charged from mains, with 40kgf starting force and 30kgf rated pull force, enough to move a full tonne of gate reliably day after day. Rated for up to 750 operations a day at a 45% duty cycle, it is built for busy commercial entrances rather than occasional residential use.
Note this is the standard D10 SMART, not the D10 Turbo. The Turbo trades weight capacity for speed, topping out around 250kg but moving nearly twice as fast. If your gate is genuinely up to a tonne, the SMART is the correct unit.
Centsys D10 SMART Specifications
| Model Number | D10 SMART |
| Max Gate Weight | 1000kg |
| Max Gate Length | 50m |
| Cycles Per Day | Up to 750 |
| Duty Cycle (Mains Present) | 45% |
| Motor | 24V DC, 40kgf starting force, 30kgf rated |
| Opening Speed | Up to 26m/min |
| MHz Frequency | 433.92MHz, code-hopping |
| Memory Register | 1500 remotes |
| Water Protection | IP54 |
| Warranty | 2 Year Manufacturer |
Centsys D10 SMART Features
The D10 SMART is Centsys’ commercial and heavy industrial sliding gate motor, engineered for the businesses and properties that ask the most of their gate. A die-cast aluminium gearbox pairs with a high-torque 24V DC motor for power and durability, sealed against the elements and backed by a patented theft-deterrent cage with an integral vibration sensor.
Battery backup keeps the gate working through a power outage, running roughly 93 full cycles a day in normal mode or 118 in power-saving mode before needing to recharge from mains. Hall Effect positioning gives accurate, reliable gate tracking, and a dedicated accessory tray leaves room for GSM devices and other add-ons without a messy install.
The onboard receiver stores up to 1500 Centsys Nova remotes with 433.92MHz code-hopping encryption, and the SMART universal controller is compatible across the whole Centsys SMART sliding gate range, so accessories and diagnostics carry over if you upgrade later.
