BFT Mitto Gate Remote Specifications
| Remote Dimensions | 5.5 x 3 x 1.4(cm) |
| Remote Weight | 24g |
| Manufacturer | Wholesale Garage |
| Made To Suit | BFT |
| Model Number | WGC407, RPC407 |
| Batteries Included | Yes |
| Battery Type | 27A 12V Alkaline Battery |
| Warranty | 1 Year |
BFT Mitto Gate Remote Compatibility

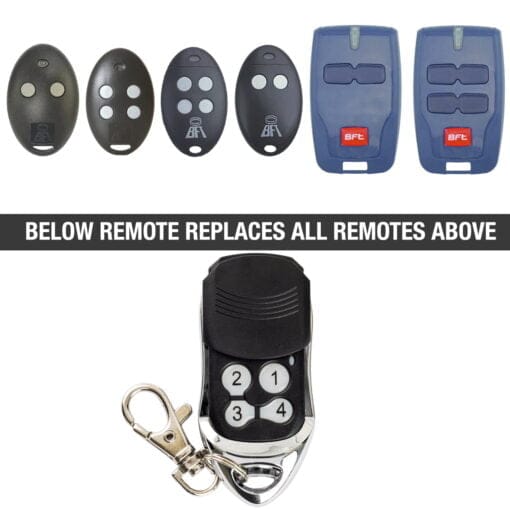

This BFT aftermarket remote control will suit the remotes pictured in the main image. Please note, if your remote control is not pictured this may not suit.
Whilst this remote may look similar to other black sliding cover remotes in the industry, this is not a ‘universal’ garage door remote.
Compatible BFT Gate Openers
BFT ARES ULTRA BT A1000
BFT DEIMOS BT A400
BFT DEIMOS BT A600
BFT DEIMOS ULTRA BT A400
BFT DEIMOS ULTRA BTA 600
BFT GIUNO ULTRA BT A50
BFT ICARO SMART 2000
BFT PHOBOS BT A40
BFT SP3500 TRI 400
The BFT Mitto 2B is suitable for use on gate openers operated by the below remote controls.
Compatible BFT Gate Remote Controls
BFT MITTO4
BFT MITTO2A
BFT MITTO4A
BFT B RCB02
BFT B RCB04
BFT KLEIOB RCA04
BFT TRC1/TRC2/TRC4
If you would like confirmation if this would work, please send a photo of your remote control to our team on our contact us page.
BFT Mitto Gate Remote Features
Our black sliding cover BFT aftermarket remote controls are specifically designed to suit BFT garage door and gate openers. With a black casing, complemented by a sturdy metal trim, these remotes are not only aesthetically appealing but are also built to last. The sliding cover is a game-changer, ensuring that the buttons are protected from dust and accidental presses, thus prolonging the lifespan of the remote. Its compact design makes it handy and easy to carry, so you don’t have to worry about bulky or cumbersome remotes. Moreover, this four-button, 4-channel remote is highly versatile, allowing you to effortlessly control multiple garage doors or gate systems with a single device.
This means you can now easily replace your old or lost remotes without breaking the bank. The four-button configuration empowers users to perform various functions or control multiple devices with ease. Additionally, the setup and programming process is extremely user-friendly, making it perfect for both tech-savvy individuals and those who might not be as comfortable with technology. Enhance your garage door experience with this sleek, robust, and multi-functional aftermarket remote control.
BFT Mitto Gate Remote Programming Instructions
There are many different types of receivers, so coding varies based on the type of receiver that you have.
If your receiver has a digital screen, use OPTION 2. If your receiver does not have a digital screen, use OPTION 1.
OPTION 1: Receiver without digital screen
1. Open your motor and try and find the receiver. If your receiver is in a case, then remove the casing. You are trying to find something that looks like a control board.
2. If you wish the transmitter to activate output 1, press push button SW1, otherwise press push button SW2 to activate output 2. The LED light on receiver will start to flash.
3. Press and release the number “3” and the number “4” button on your new remote control at the same time. The will cause the LED to stop flashing, and remain illuminated.
4. Press and release the number any button on your new remote control that you want to use to control your garage/gate. This will cause the LED to flash fast. This indicates that that button on your new remote has been coded. After about 1 second, the LED will continue flashing, but will be flashing slowly.
5. If you would like to code in additional remotes, this is the time to do it. You will need to start again using the additional remote and complete steps 3 & 4 for each additional remote. Whether you code additional remotes or not, once you have finished coding your remote(s), the LED should be flashing slowly.
6. Wait 15 seconds.
7. Your new remote control/s are now programmed.
OPTION 2: Receiver with digital screen
1. Press the “OK” button on your receiver twice. The screen displays “PARA.”
2. Press the “-“ button on your receiver twice. The screen displays “RADIO.”
3. Press the “OK” button on your receiver once. The screen displays “ADJ STRT.”
4. Press the “OK” button on your receiver once. The screen displays “Hidden Button.”
5. Press the number “3” and the number “4” button on your new remote control at the same time. Keep them pressed down.
6. Keep holding the buttons down until the screen displays “released”. Let the buttons go. The screen displays “Desired Button”.
7. Press and release the button on your new remote control that you want to use to control your gate/garage. The screen displays “OK”.
8. If you would like to program an additional remote: When “ADJ STRT” appears, press “OK” to code an additional remote, and follow the instructions displayed.
9. After coding the remote(s), wait about 30 seconds. Now you remote is coded.
