Description
Complete NES-500 Sliding Gate Kit Includes
1x ATA “NeoSlider” NES-500 Sliding Gate Kit
Sliding Gate Kit (See below for breakdown)
2x ATA PTX5v2 Keyring Transmitters
4x 1m ATA Gate Racking & Fixings
Installation Instructions
2 Year Warranty
ATA NES-500 Sliding Gate Kit Features
The NeoSlider has been in use by ATA for over 15 years as one of Australia’s most reliable gate operators. When looking for your next gate operator, know that ATA offer proven longevity and quality at an affordable price, unlike other unknown imported brands.
By being designed in Australia, the ATA NES-500 Sliding Gate Kit has been built for the Australian conditions and requirements. The internal gearing also prevents intruders from gaining access to your yard, ensuring your security and privacy. Finally, the remote controls this unit utilizes feature a rolling code encryption called TrioCode128, which generates a new code each time the button is pressed from trillions upon trillions of possibilities.
By transmitting across three frequencies the remote controls all but eliminate interference problems, meaning your gate will open each time, every time. Due to the remotes high security, only your PTX5v2 remotes will ever open your NeoSlider preventing code grabbing devices from ‘replaying’ the code to open your gate. Click here to see how you would program your remote controls into your motor.

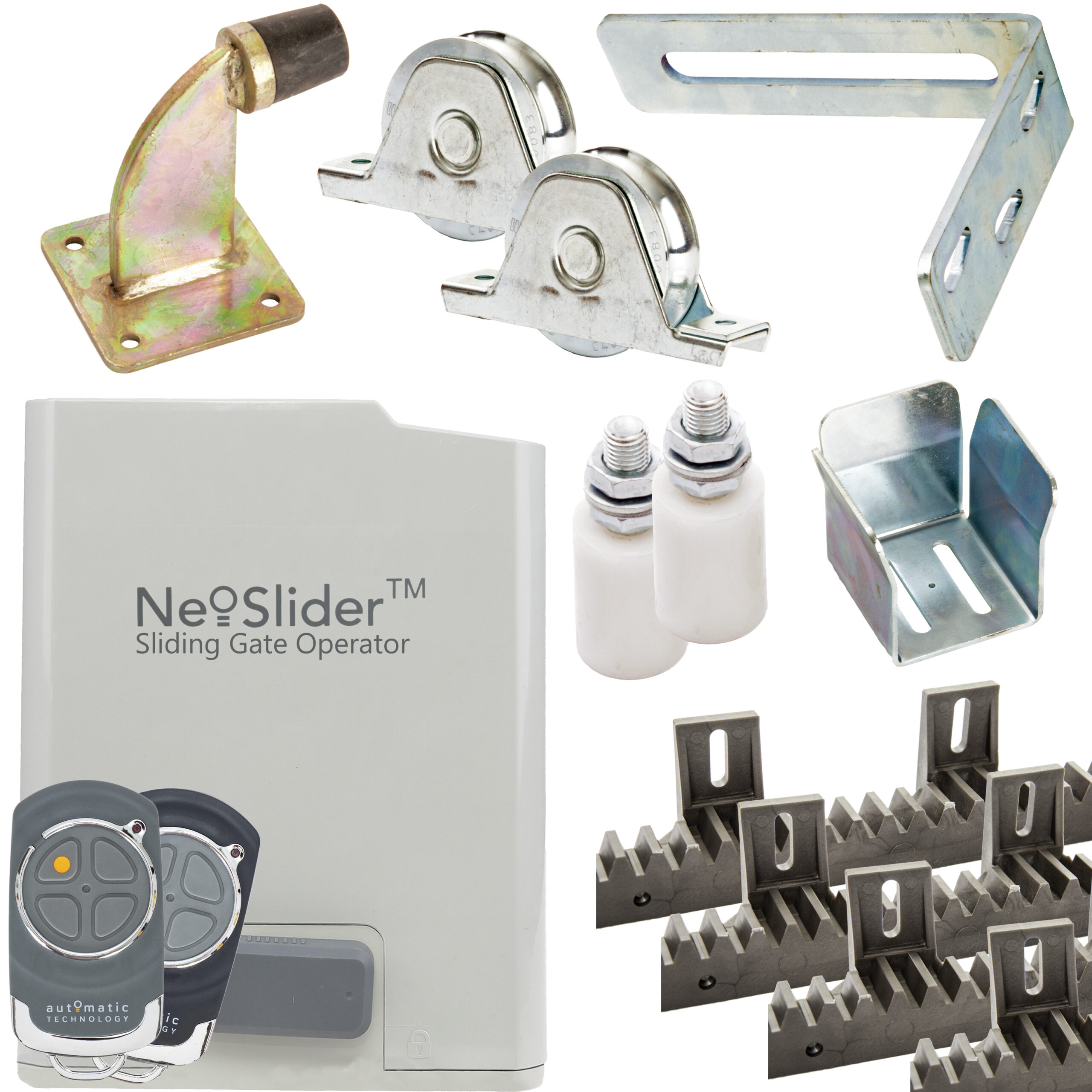

This listing also includes the sliding gate kit. This kit will allow a brand new fabricated gate to be mounted to it’s opening and be movable by hand. This listing then also includes a NES-500 gate operator to automate it. The complete part breakdown is:
6m ‘U’ Track (Bolted to the ground)
2x Gate Wheels (Rolls on the U Track)
1x Gate Bracket (Bolted over the gate)
2x Nylon Rollers (Fixed to bracket, on either side of gate)
2x Nylon Rollers (Fixed to bracket, on either side of gate)
1x Gate Meeting Point (Holds gate when opened fully)
1x Gate Stopper (Stops gate when closed fully)
Optional accessories include a smartphone control kit, battery backup, PE Safety Beams or a keypad.
ATA NES-500 Sliding Gate Kit Specifications
| Max Gate Length |
6m |
| Max Gate Weight |
500kg |
| Model Number | NES-500 |
| Peak Driving Force |
280N |
| Motor Type | 24V d.c. Permanent Magnet |
| Standby Power | 2.2W |
| Gate Travel Speed | 200mm/sec |
| Remote Frequency | FM 433.92 TrioCode 128 |
| Memory Register | 64 |
| Water Protection | IP44 |
| Warranty | 2 Year / 5,000 Cycle |
ATA NES-500 Sliding Gate Kit Warranty
2. In the event the fault cannot be resolved over the phone, we’ll need for the motor to be returned to us (at your cost).
