Sliding Gate Accessory – Twin Telescopic Sliding Gate Kit

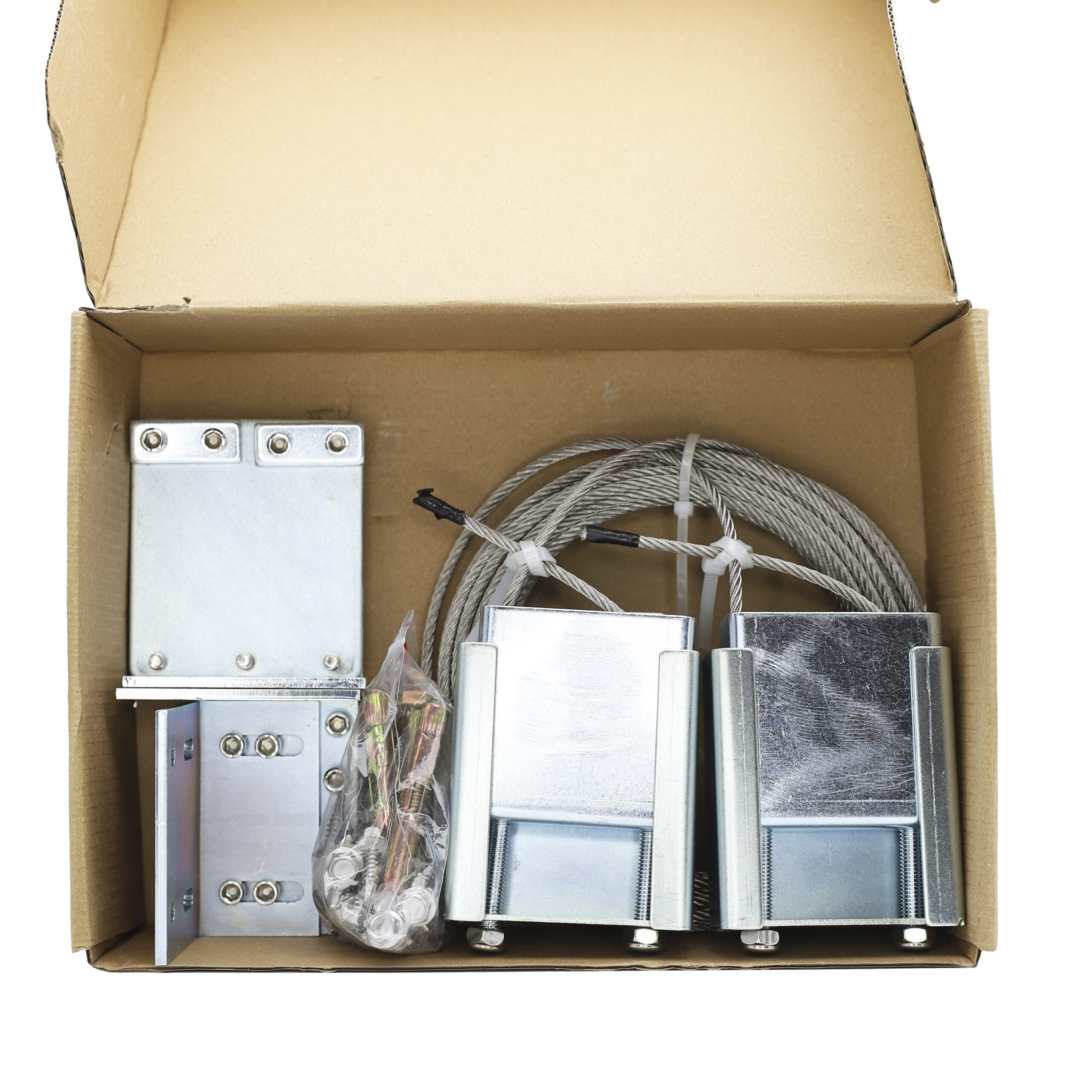

This Listing Includes

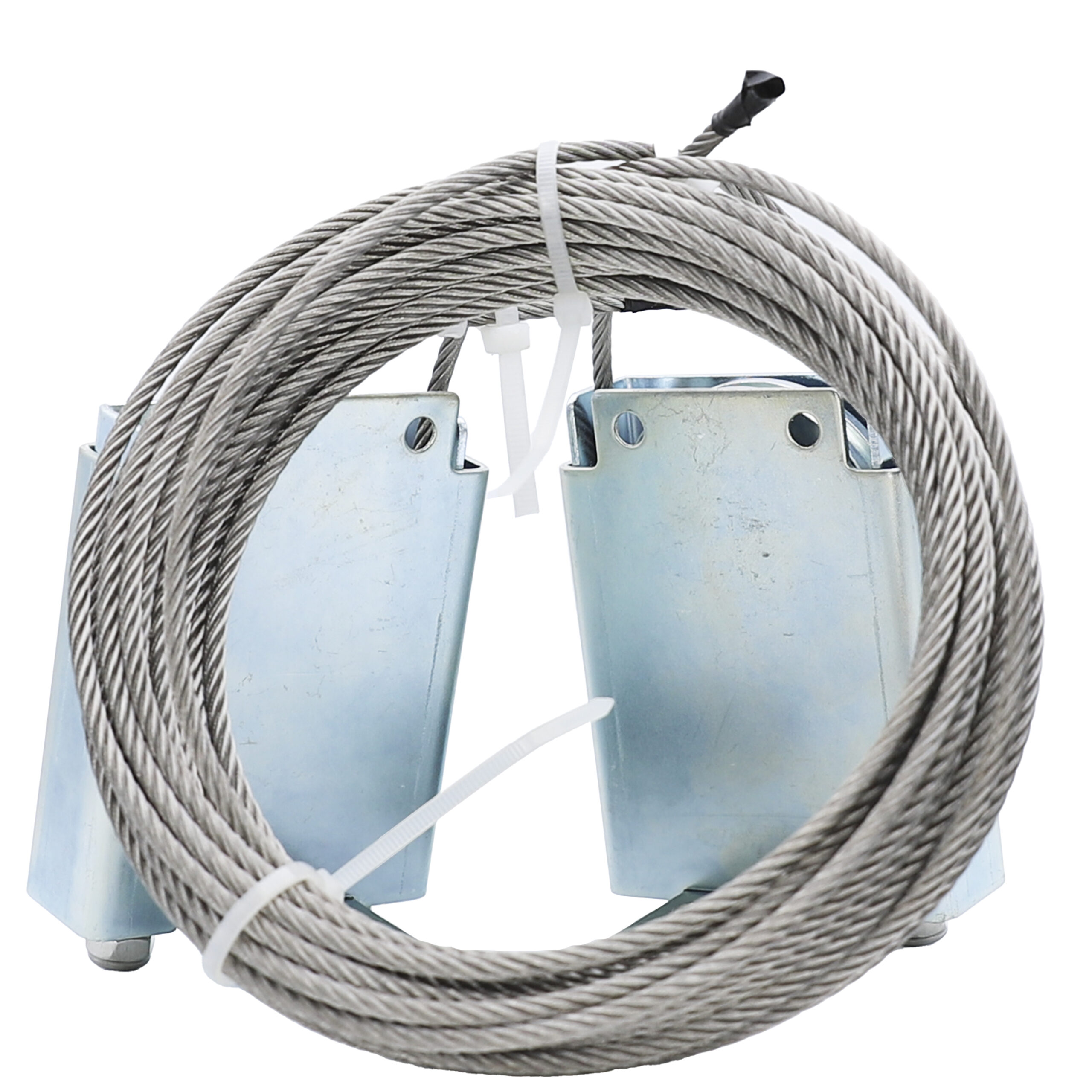

1x Drive Gate Cable Assembly
1x Slave Gate Cable Assembly

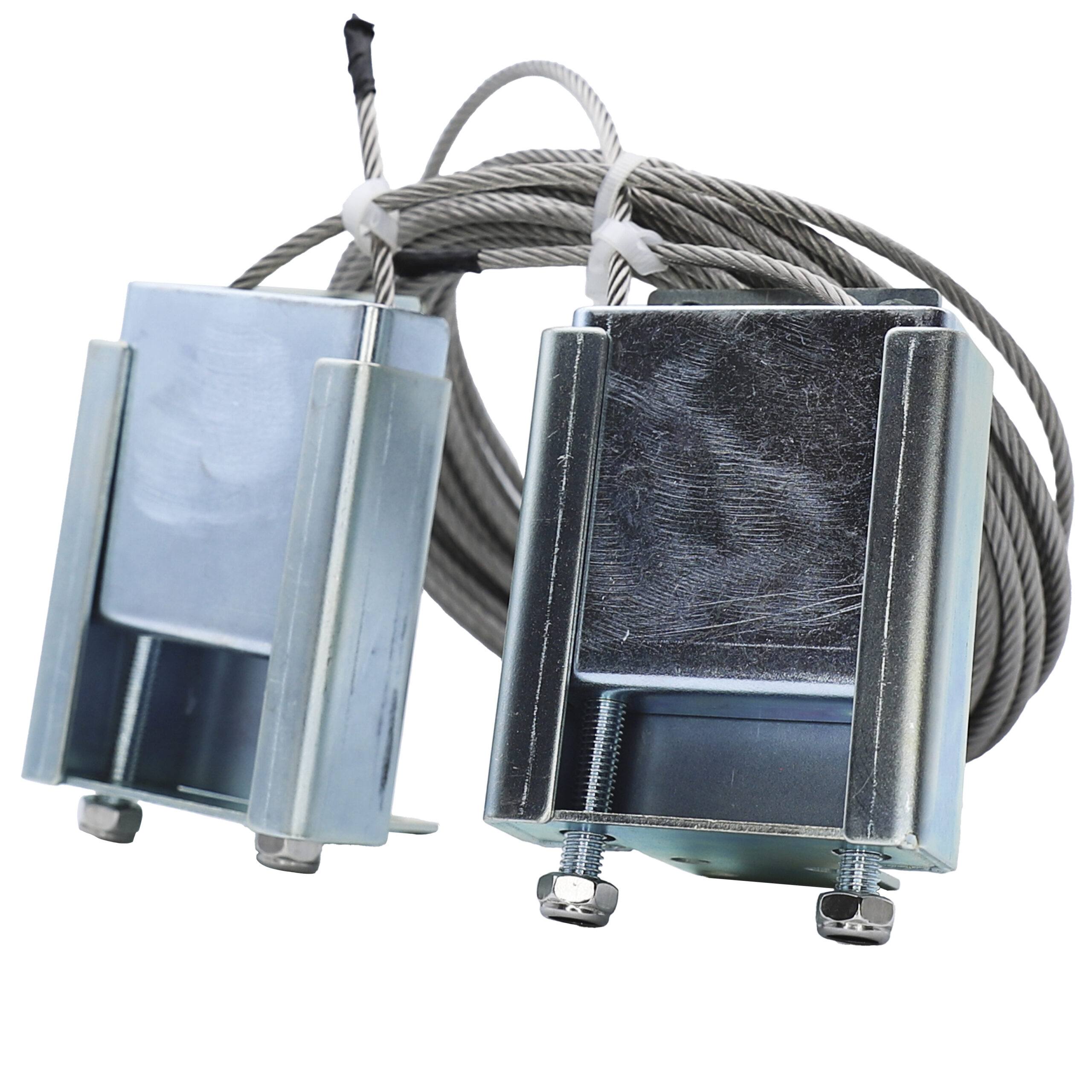

1x Drive Gate Carriage Assembly
1x Slave Gate Carriage Assembly
1x Fixed Pulley Bracket Assembly
1x Floating Pulley Tensioner Assembly

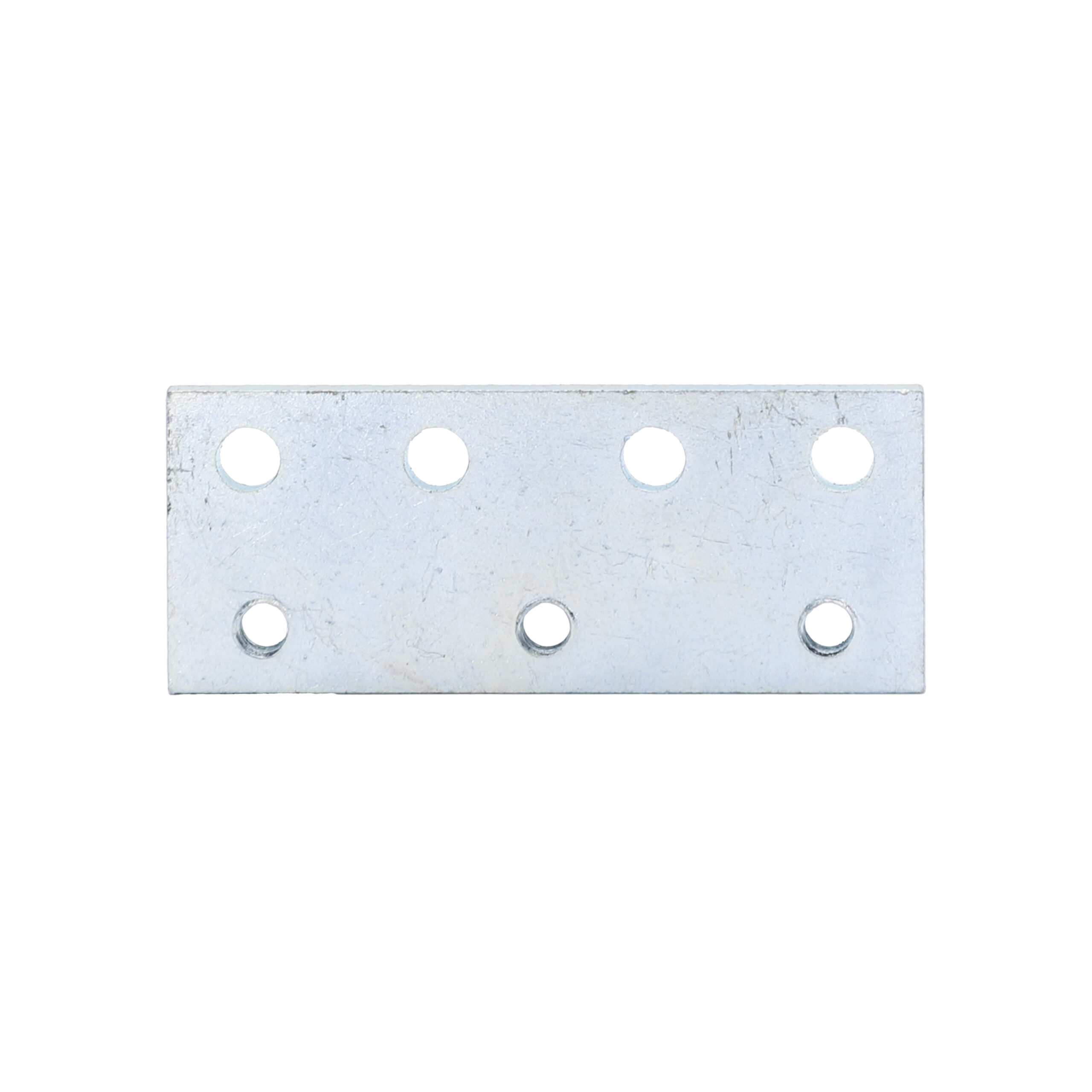

1x Cable Equaliser / Joiner Plate
Multiple Galvanised Cable Pulleys
Multiple Mounting Brackets & Plates
Cable Guides & Retainers
Adjustment Hardware & Fasteners

Twin Telescopic Gate Kit Features

Create a wide driveway opening where space is limited with our twin telescopic sliding gate hardware kit. Designed for two sliding gate panels that travel together, this system allows large openings to be achieved while only requiring roughly half the run-back space of a traditional sliding gate.

The cable driven synchronisation system links the leading and trailing gate panels so both move together during operation, allowing automation with a single motor.

This is a complete telescopic synchronising kit designed for openings up to 8.5 metres. Please note this kit does not include the standard sliding hardware required for each individual gate panel to actually slide, which is available separately or in bundle kits. This kit assumes your gate is already sliding by hand (gate motor still required).

Manufactured from galvanized steel with sealed bearing pulley carriers, the system is built for long term outdoor durability and smooth operation. Final cable tensioning can be performed from either end of the gate rather than between the panels, simplifying installation and improving reliability.

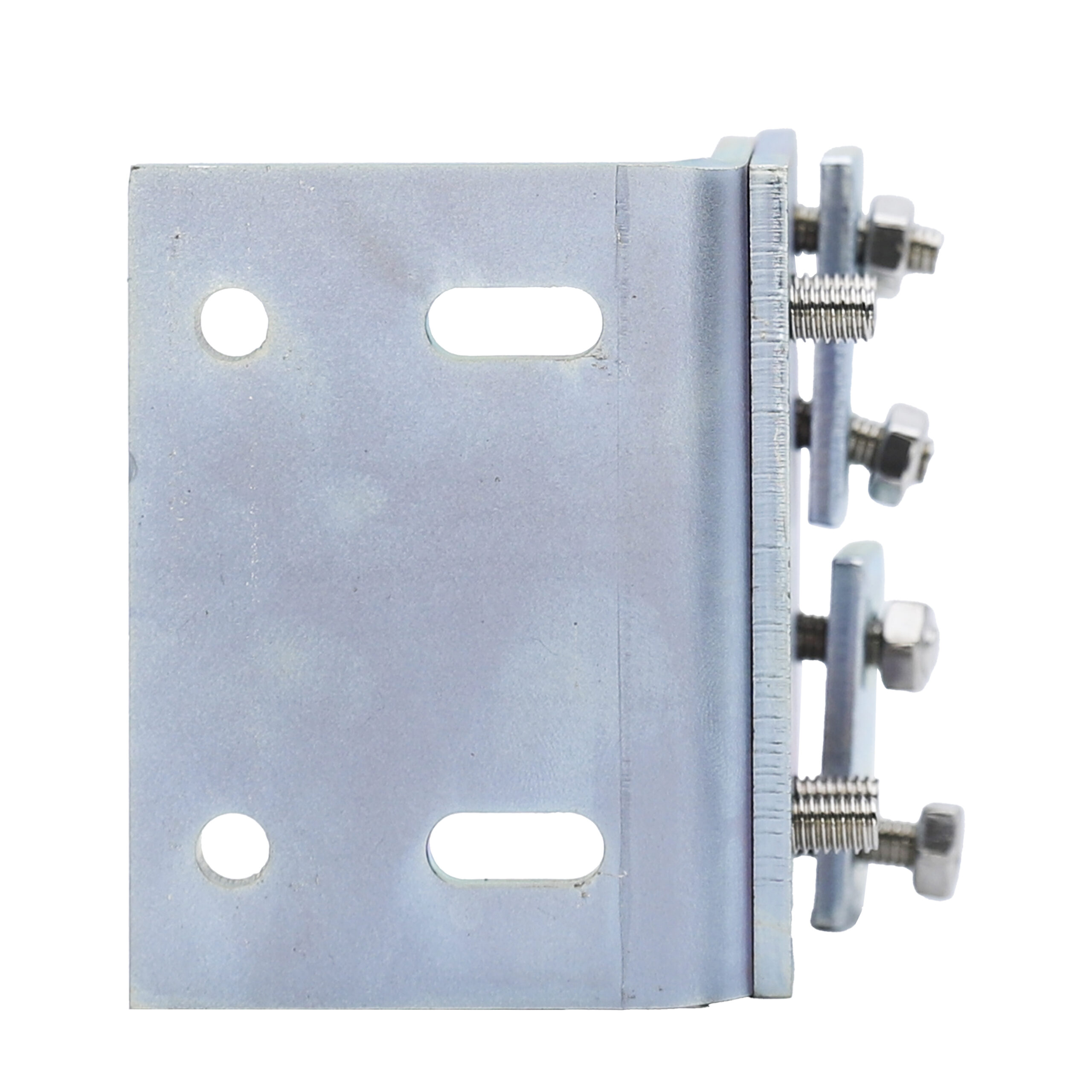

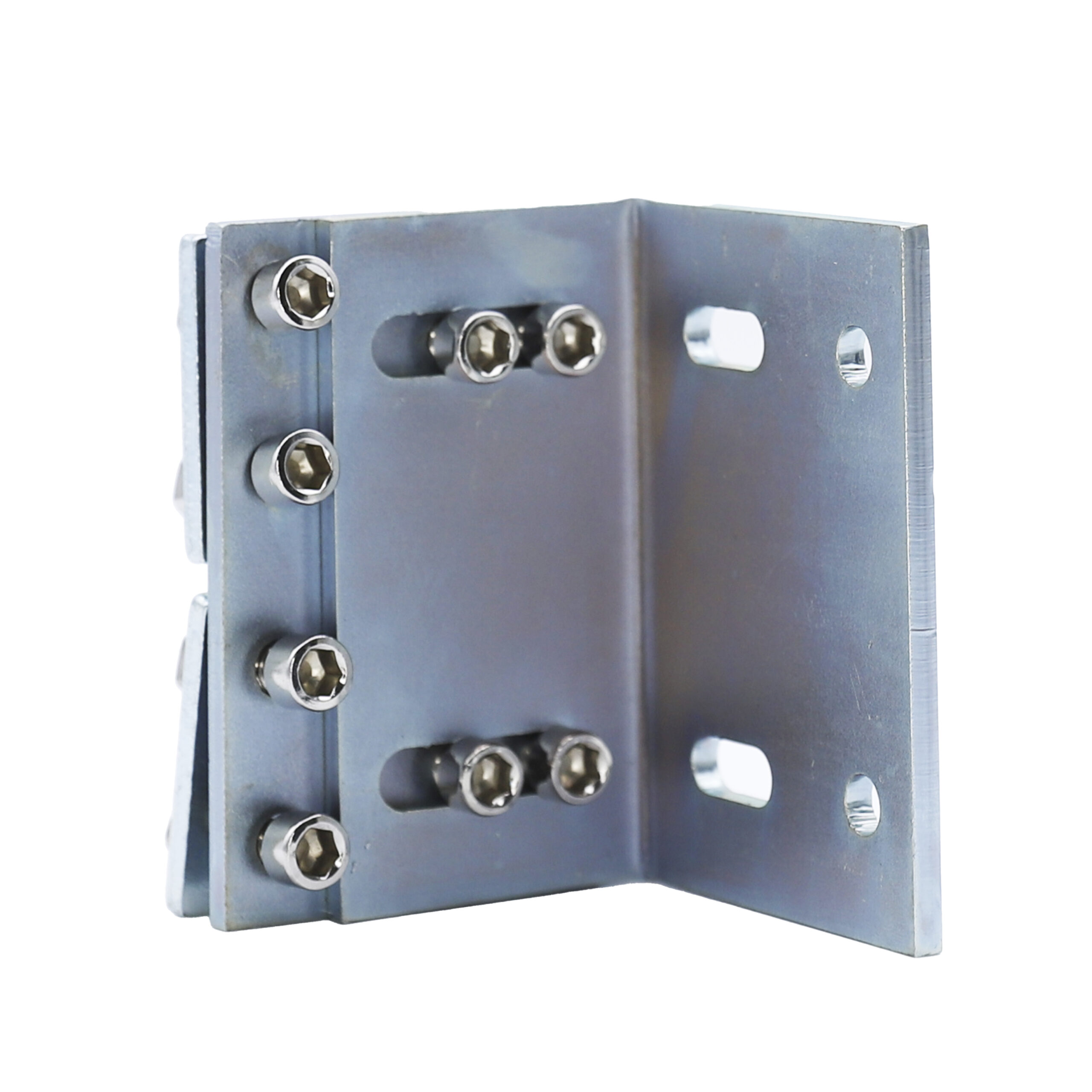

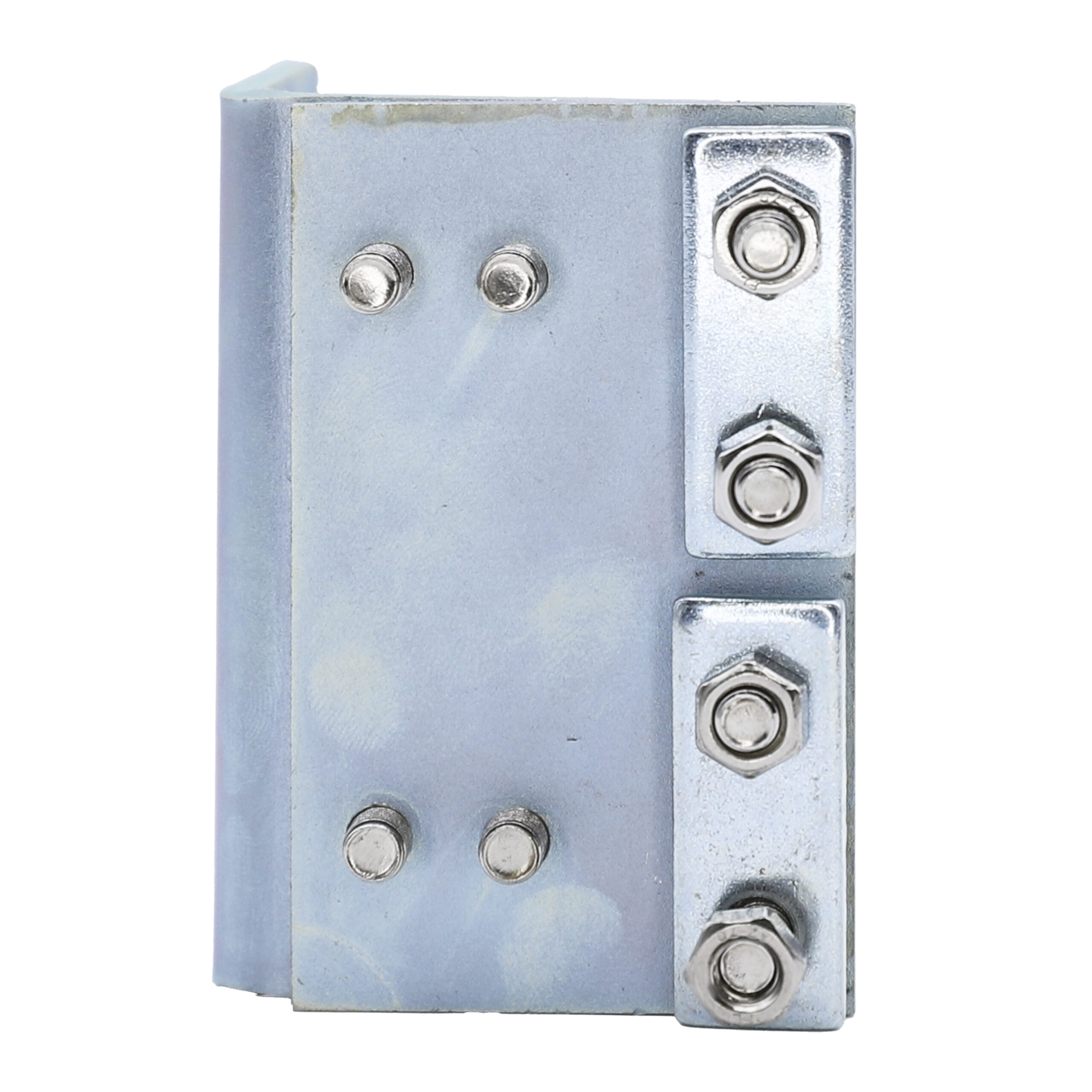

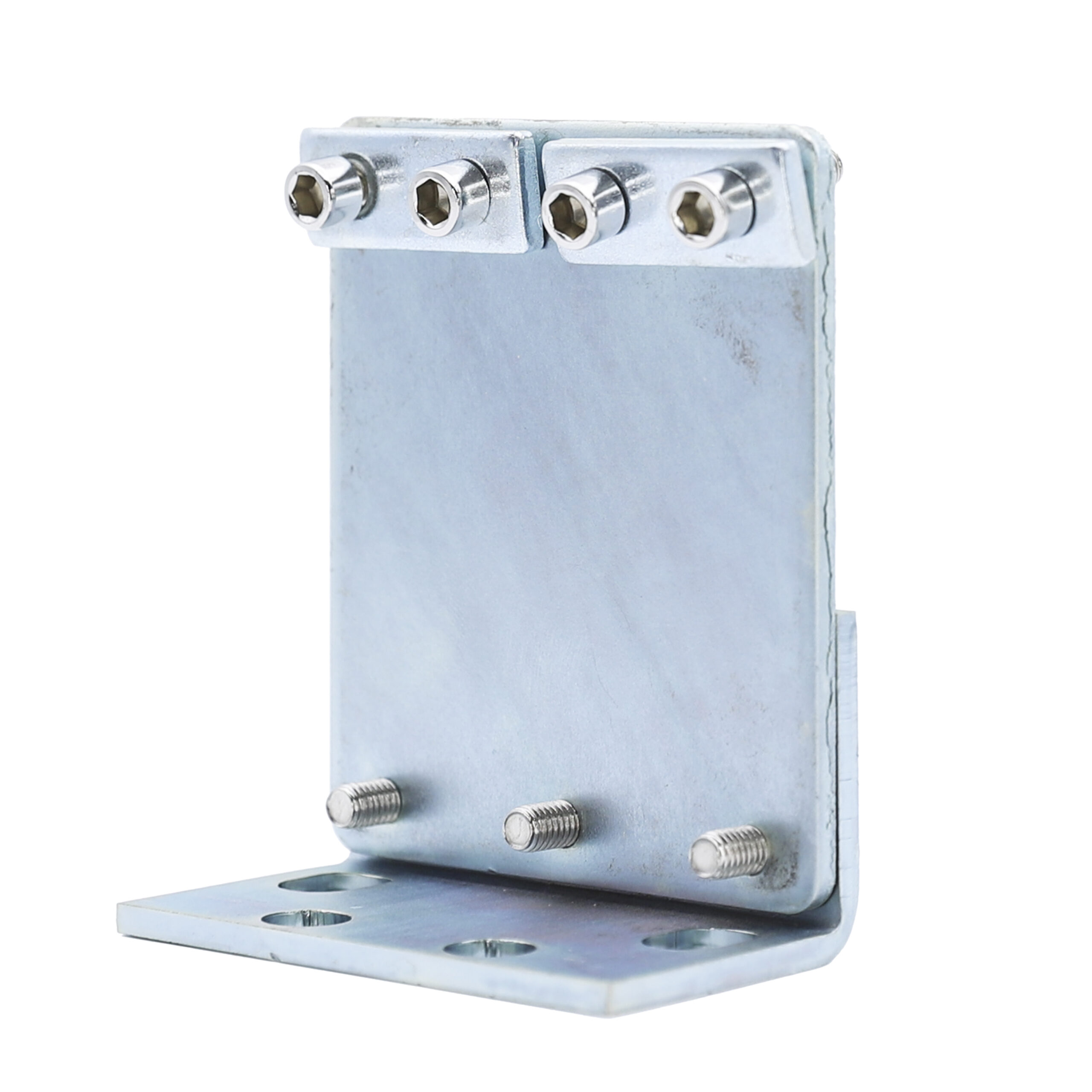

The anchor bracket can be installed in a raised position for bolt-on wheels or lowered position for recessed wheel setups, ensuring correct cable alignment and reducing cable wear. The trailing bracket is depth adjustable with elongated fixing slots to allow precise positioning and fine adjustment during installation.

Ideal for residential driveways, townhouses, unit complexes and commercial entries where side clearance is restricted.

What Does A Telescopic Gate System Do?

A telescopic sliding gate system allows large openings to be secured where space behind the fence line is restricted.

Reduces Required Run-Back Space
Instead of one long gate panel, two panels slide together so only roughly half the driveway width is required for opening clearance. :contentReference[oaicite:0]{index=0}

Synchronises Both Gates
The cable and pulley system links both gates together so the trailing gate follows the leading gate automatically during operation. :contentReference[oaicite:1]{index=1}

Supports Wide Openings
Perfect for driveways where a single sliding gate would be too long, allowing large vehicle access without requiring excessive side space.

Improves Installation Flexibility
Adjustable brackets and multiple tensioning points allow fine tuning during installation for smooth tracking and correct cable alignment. :contentReference[oaicite:2]{index=2}

Enhances Long Term Reliability
Galvanized hardware and sealed bearing pulleys reduce friction and help prevent premature wear of the cable and moving components. :contentReference[oaicite:3]{index=3}

Works With Standard Sliding Gate Automation
Only one motor is required to operate both gates, simplifying automation while maintaining consistent movement.
