Grifco ML5103 Industrial Roller Shutter Opener 3-Phase 1Hp

Description

Grifco Industrial Roller Shutter Includes

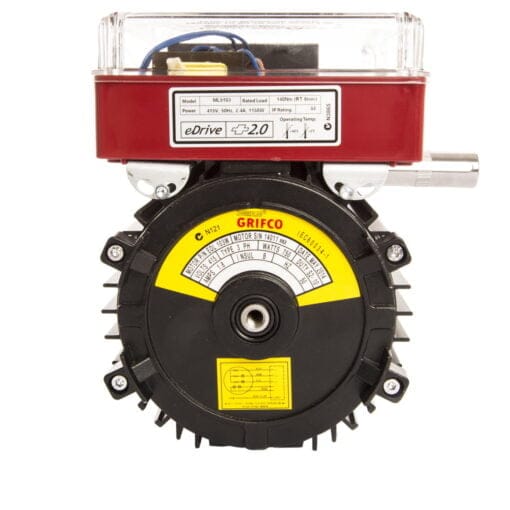

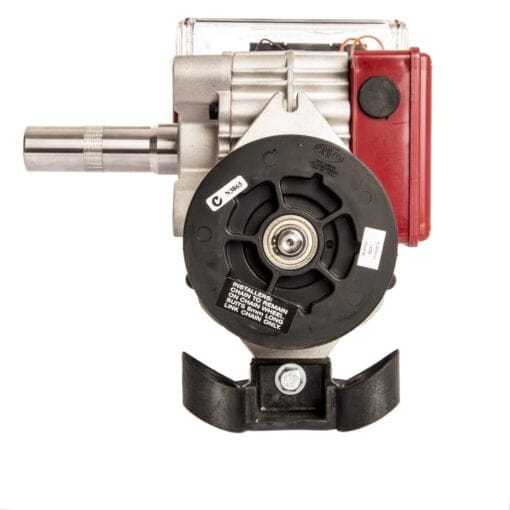

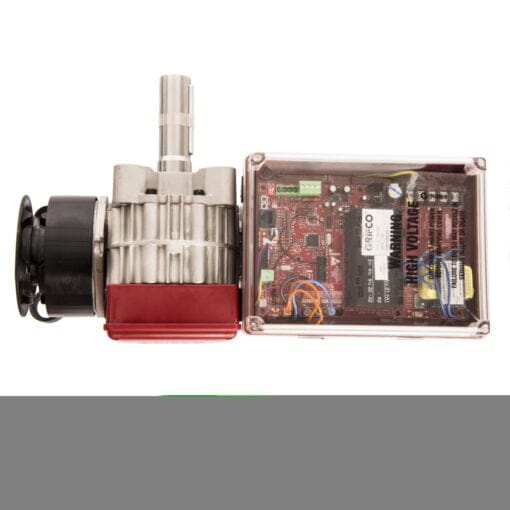

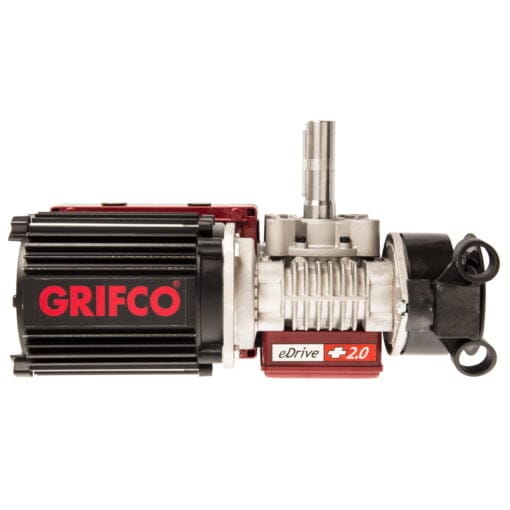

1x “eDrive” Grifco Industrial Roller Shutter ML5103

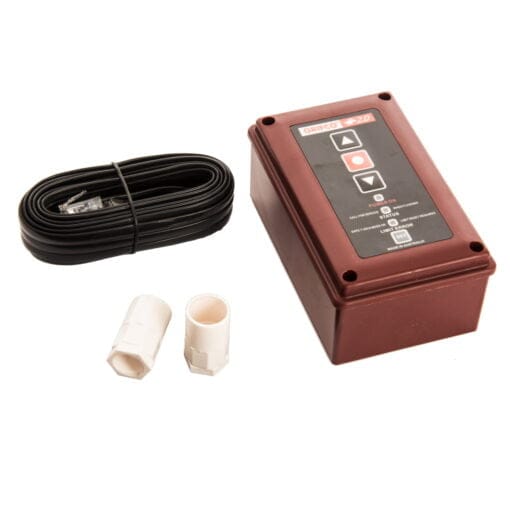

1x C10A-4 Wall Control
1 Year Warranty

Grifco Industrial Roller Shutter Opener Features

The ML5103 is one of Grifco’s commercial shutter openers. As an industry leader for spring-balanced roller shutter and grille operators, the ML5103 Shutter Roller Opener has a proven history of reliability. The ML5103 is capable of operating a Standard Roller Shutter. A Standard Roller Shutter is defined as being:

• Properly spring balanced
• Has max 1.0mm x min 100mm slats, with
• A 150mm diameter drum for shutters max 36m², or
• A 200mm diameter drum for shutters 36 – 50m²
• Not windlocked
• A sprocket ratio ≥ 4:1 is used

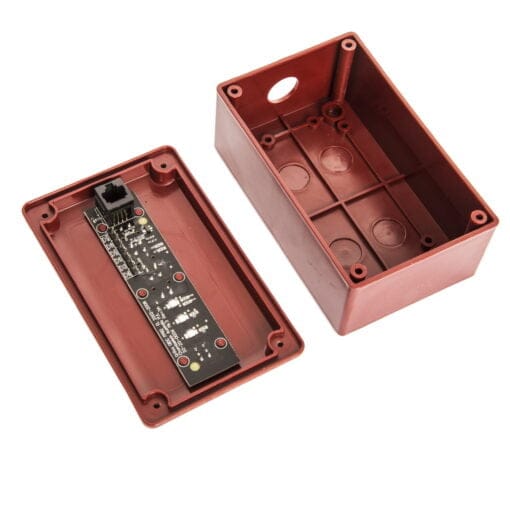

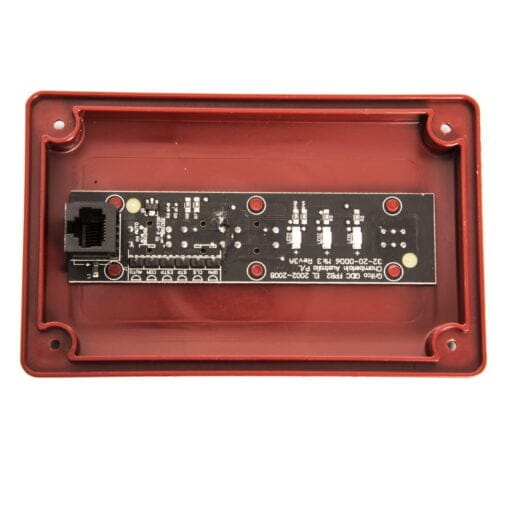

The included C10A-4 Wall Control features an Up / Down / Stop function to allow you to have full control over your motor. The wall console’s Service LED will begin to flash when the motor requires servicing, allowing you to extend the life of your operator and avoid damage to your door by keeping the motor in optimal condition.

Other features of the Grifco Industrial Roller Shutter include:

• Absolute position encoder ensures reliable limit performance throughout the life of the opener
• Push button set limits from the controller (no need to access limits at the opener)
• Push button set door direction (polarity reversal)
• 3 limit positions standard with every opener
• Door direction detection (prevents reverse rolling of door in the event of polarity being changed)
• All openers can be expanded to suit virtually every industry specified operational requirement
• Controllers and accessories all simply plug-in

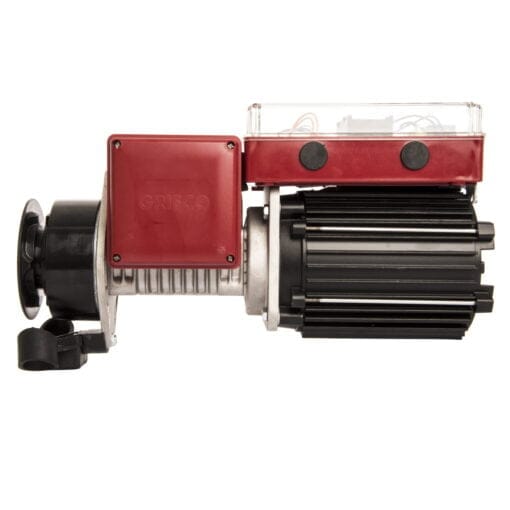

• Gearbox and motor have cooling fins improved heat dissipation, greater efficiency and less wear.
• 3 independent safety (Beams and/or Edge) inputs with auto-reverse functionality

Grifco Industrial Roller Shutter Opener Specifications
