What’s Included?
- 1 x 40W Solar Panel with 4m cable
- 1 x Solar Panel Mounting Bracket and mounting hardware

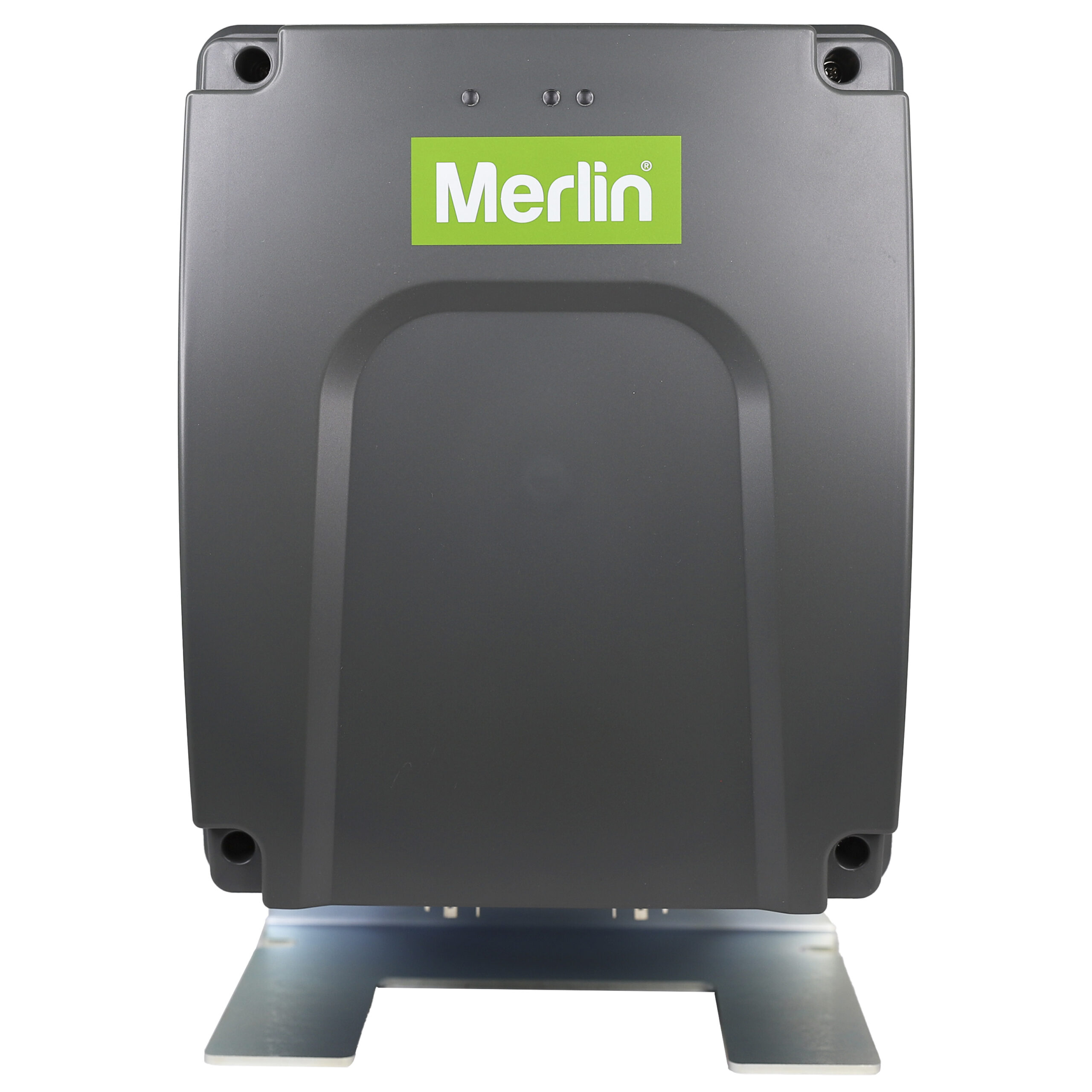

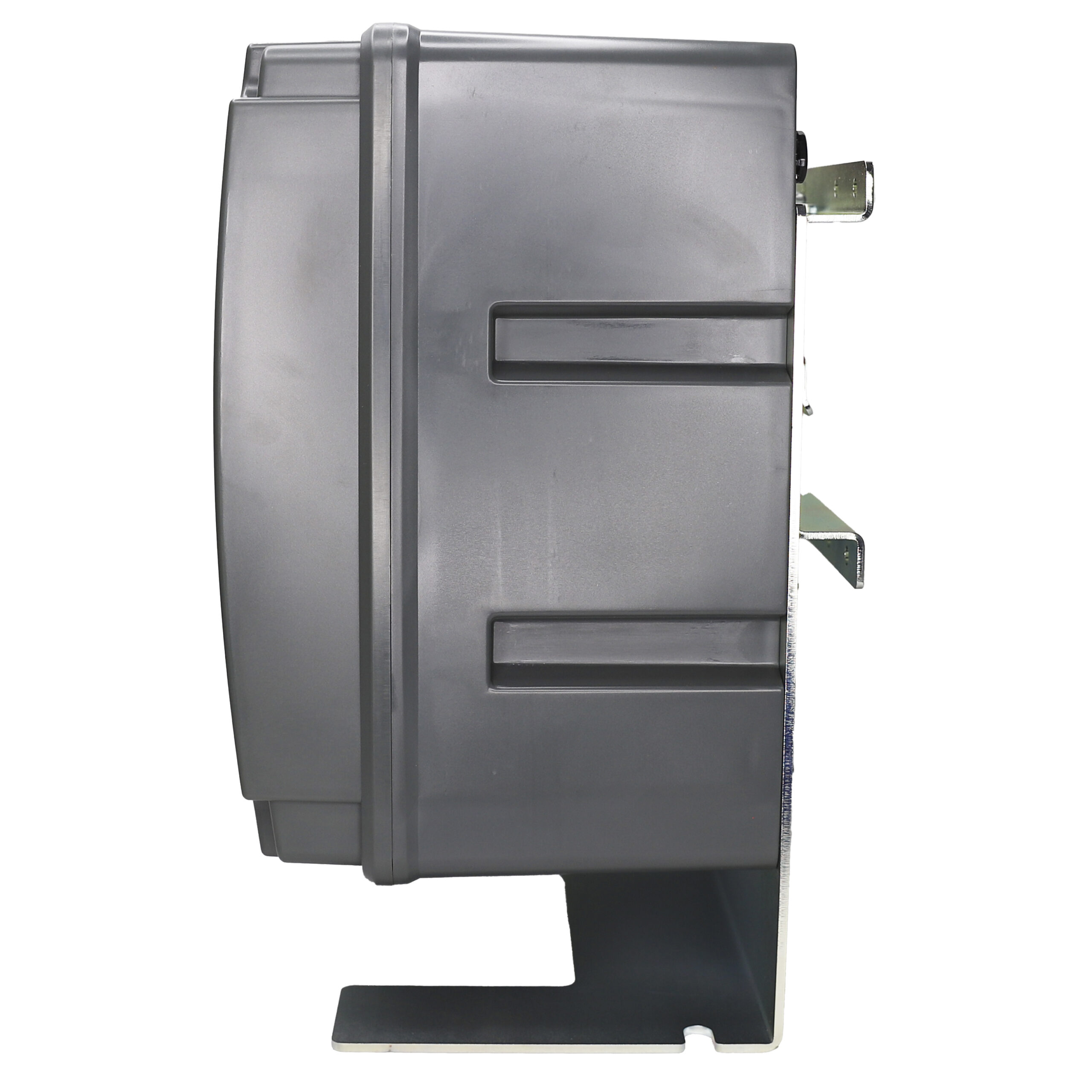

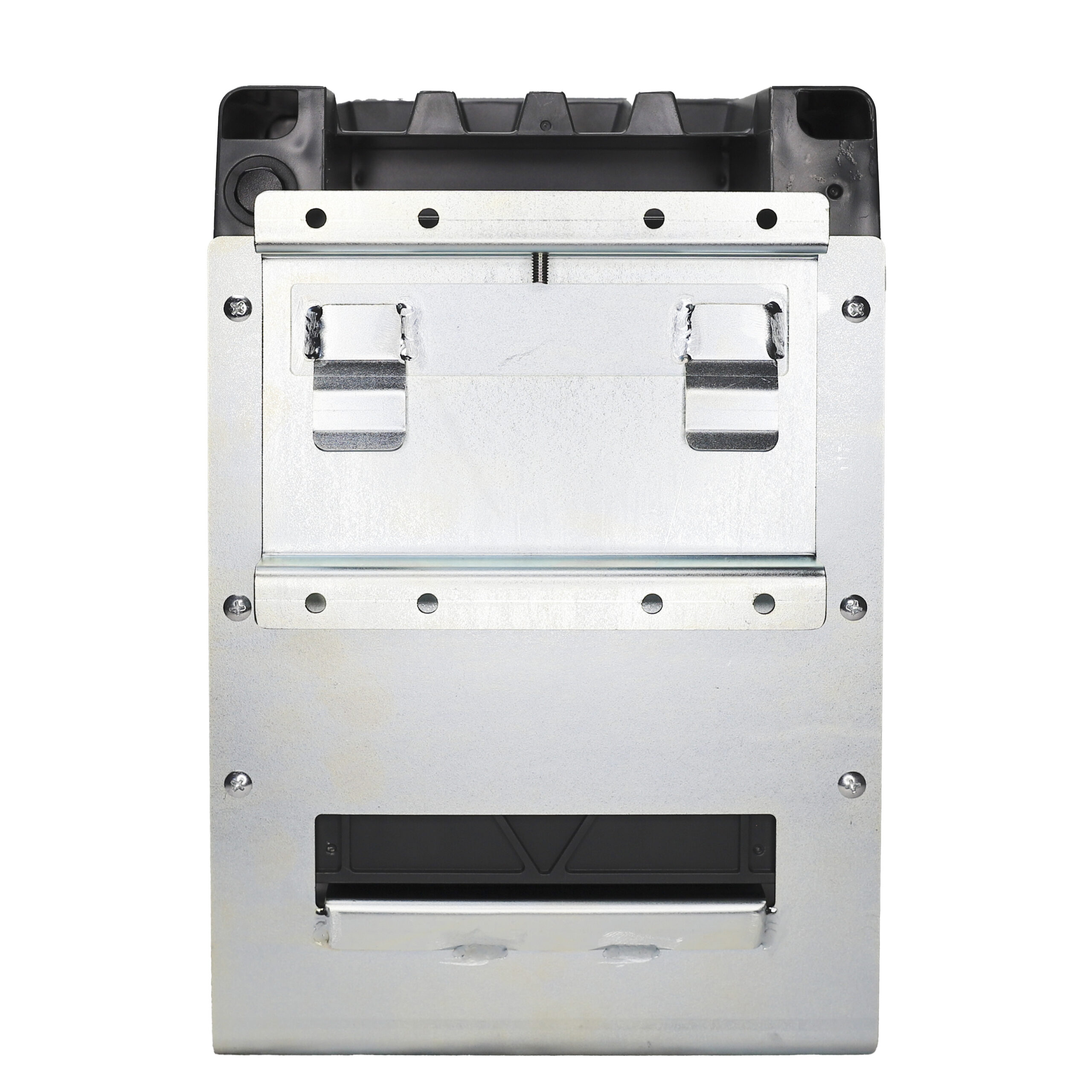

- 1 x Solar Power Enclosure with mounting brackets
- 2 x 18Ah Batteries

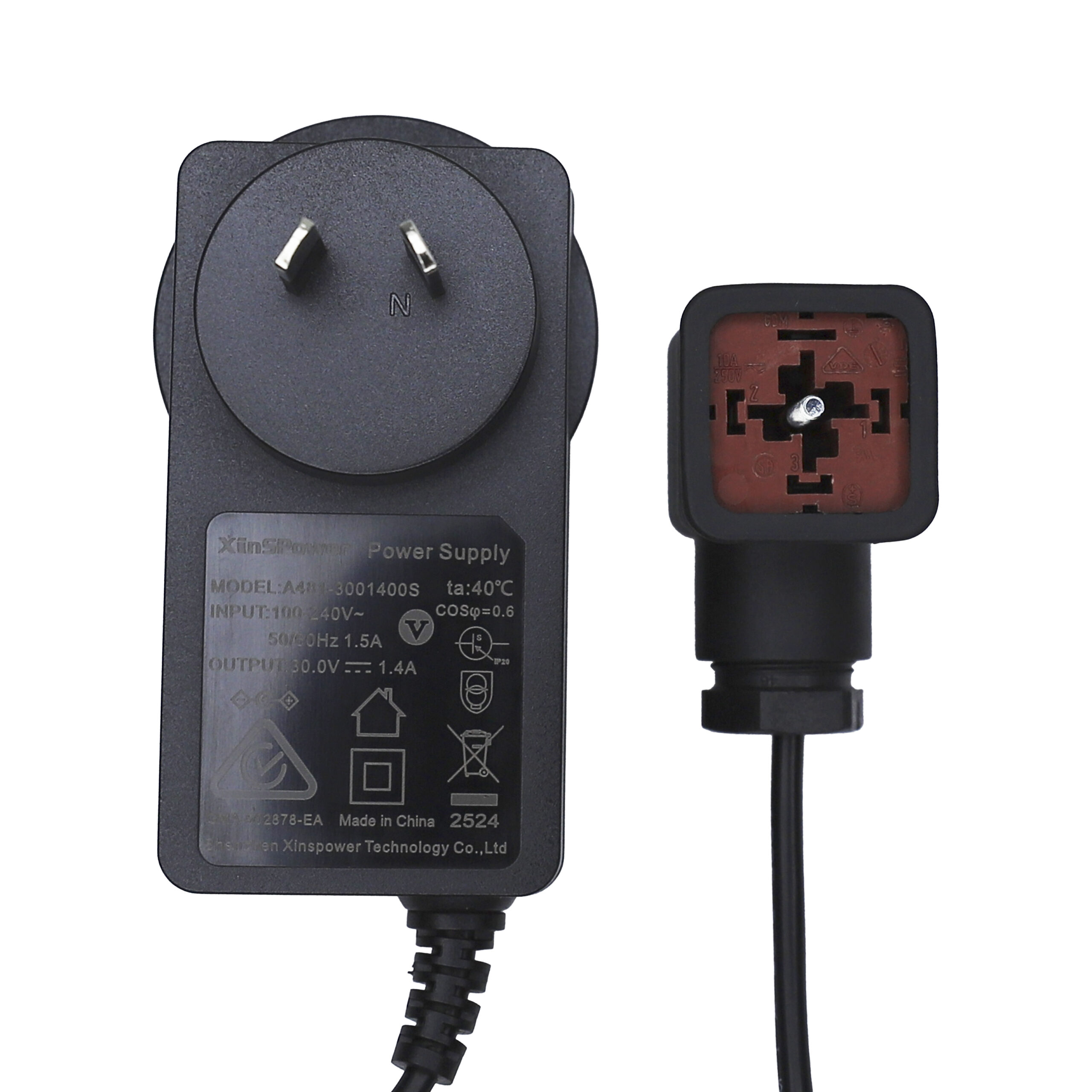

- 1 x 240V Mains Power Pack with battery charge plug and adaptor cable

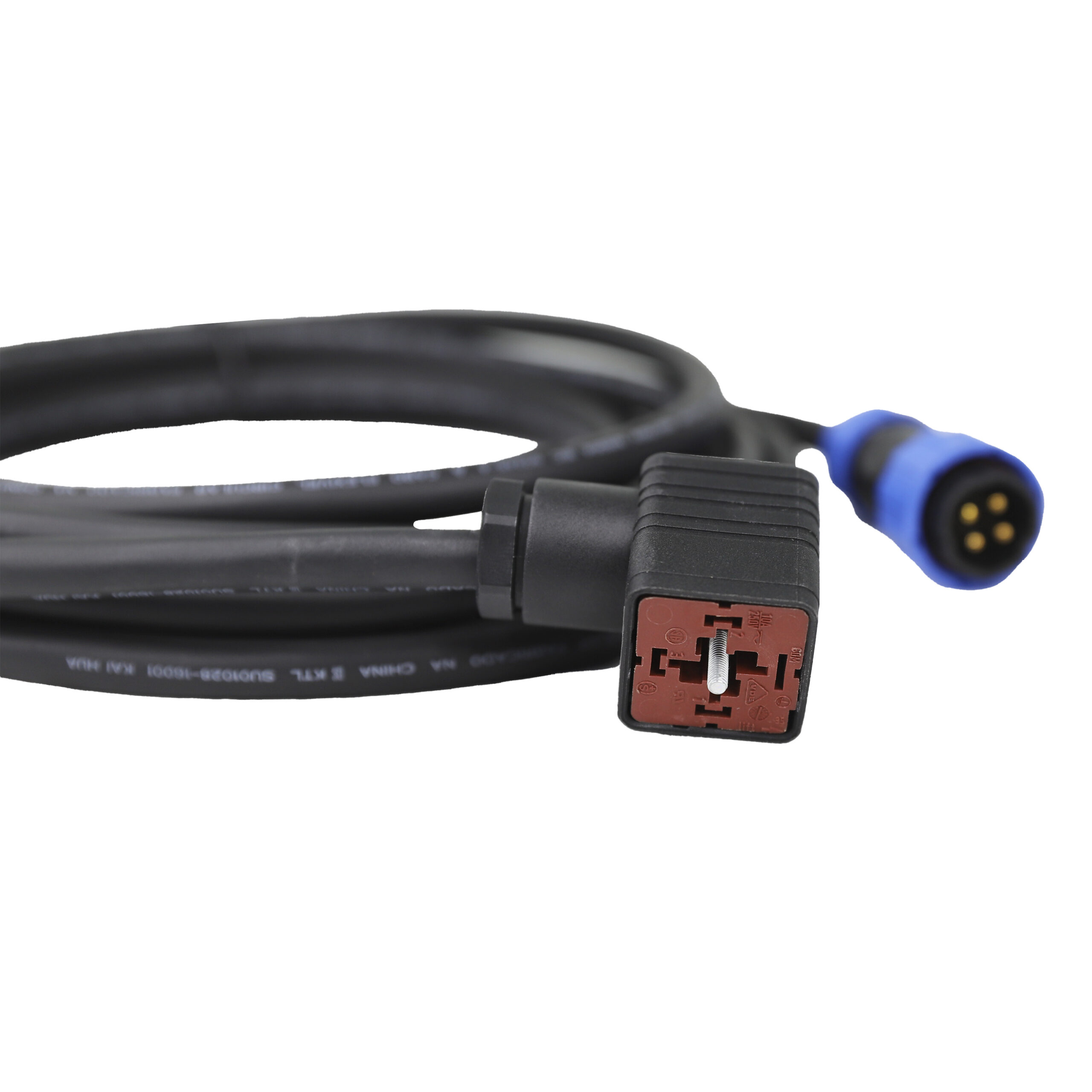

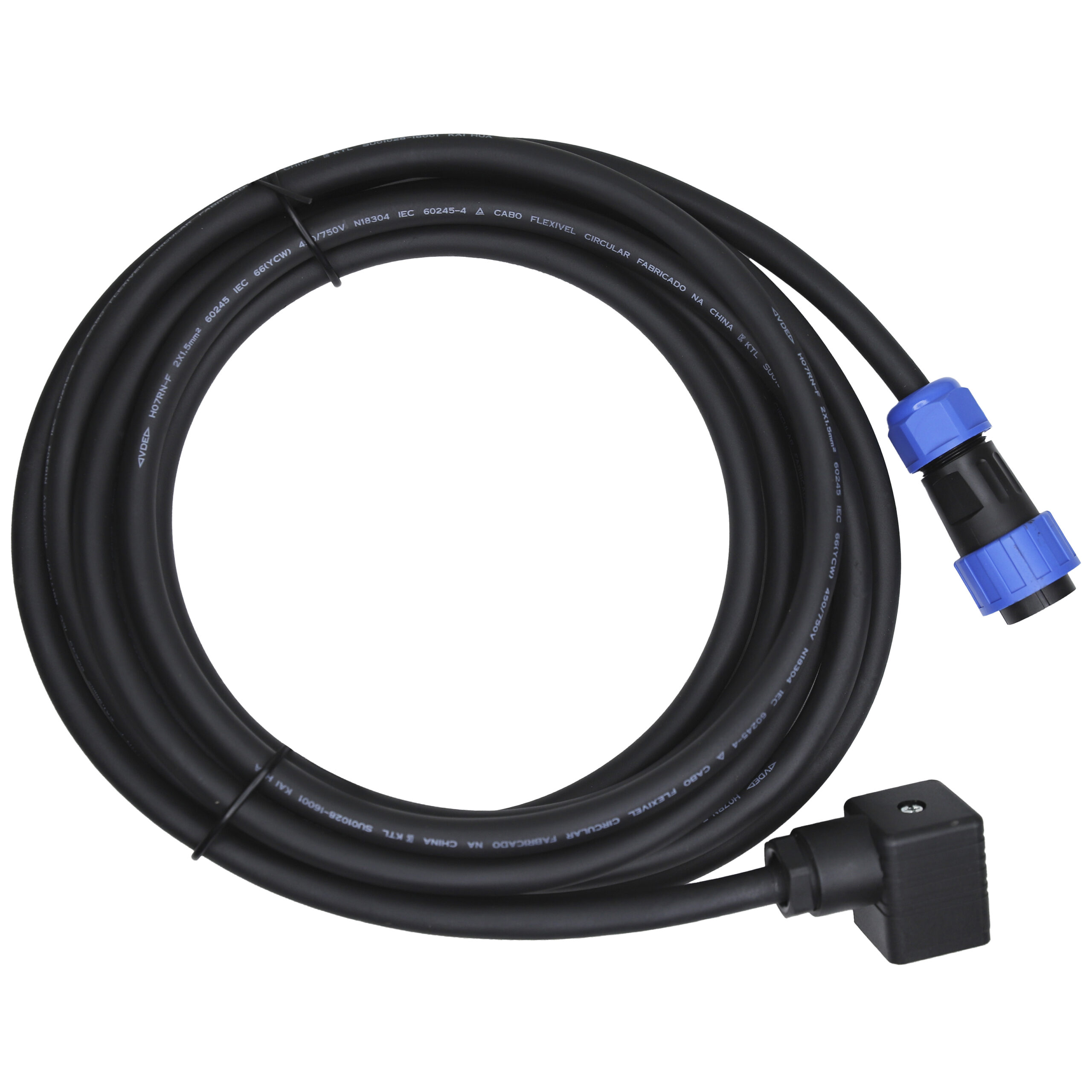

- 1 x Solar Power Kit to Gate Opener 4m power cable
- Security screws and installation tools
Merlin Solar Panel Specifications
| Peak Power (Pmax) | 40W / 34.2V |
| Maximum Current | 1.17A |
| Maximum Voltage | 34.2V |
| Operating Temperature Range | -40°C to +85°C |
| IP Rating | IP65 |
| Dimensions | 620mm x 400mm x 25mm |
| Weight | 2.6kg |
Merlin Solar Power Supply Specifications
| Rated Voltage | 21.6VDC to 35VDC |
| Maximum Output Current | 5 Amps |
| Battery Capacity | 2 x 18Ah |
| Recharge Time (AC Charger) | Approx 24 Hours |
| Operating Temperature Range | -20°C to +50°C |
| IP Rating | IP65 |
| Dimensions | 335mm x 230mm x 210mm |
| Weight | 15kg |
Merlin Solar Power Kit for Gate Openers
The Merlin Solar Power Kit is designed to provide reliable solar powered operation for compatible Merlin and Grifco automatic gate openers where mains power is unavailable, impractical or too expensive to install. Ideal for rural properties, farms, acreage driveways, commercial properties and remote entry points, this complete solar kit delivers dependable gate automation powered by clean renewable energy.
Built specifically for Australian and New Zealand conditions, the Merlin SOLAR-KIT combines a high efficiency 40W solar panel, dual 18Ah batteries and a durable IP65 rated power enclosure to provide reliable day and night operation across a wide range of gate automation applications. Whether installed on a sliding gate, swing gate or commercial gate system, the Merlin Solar Power Kit is designed to keep your property secure and accessible with minimal ongoing maintenance.
The included adjustable mounting hardware allows the solar panel to be positioned for maximum sunlight exposure, helping improve charging performance and battery efficiency throughout the year. For properties with lower sunlight conditions, the system is also expandable with the addition of a second 40W solar panel for increased charging capacity.
Designed for convenience, reliability and long-term outdoor durability, the Merlin Solar Power Kit gives you the flexibility to automate gates in locations where traditional power access simply is not practical.
Merlin Solar Power Kit Compatibility
This solar power kit is compatible with all current Merlin and Grifco gate openers.
Compatible Merlin Sliding Gate Openers
- Merlin Slide 600 (MGSK600)
- Grifco LG-Drive (GLD-GO)
Compatible Merlin Swing Gate Openers
- Merlin Swing A 200 (MGASK/MGADK)
- Merlin Swing L 300 (MGLSK/MGLDK)
- Merlin Swing LR 500 (MRGLSK)
lMerlin Solar Power Kit Features
The Merlin SOLAR-KIT is designed as a complete standalone solar power solution for compatible gate automation systems. Featuring a durable IP65 rated construction and engineered specifically for harsh Australian and New Zealand environments, the system is ideal for properties exposed to heat, rain, dust and changing weather conditions.
The included 40W solar panel helps maintain reliable charging performance throughout the day, while the dual 18Ah battery setup provides high capacity power storage for dependable overnight and low-light operation. This allows your gate opener to continue operating smoothly even during periods of poor weather or reduced sunlight exposure.
For installations located in heavily shaded areas or sites with high daily gate cycles, a second 40W solar panel can also be added to improve charging performance and increase solar collection capacity.
The included AC charging adaptor also provides additional flexibility, allowing the battery system to be manually recharged during extended periods of low solar radiation if required.
Whether installed on residential acreage, farms, commercial entry points or remote gate systems, the Merlin Solar Power Kit delivers convenient automated access without requiring mains electricity at the gate location.
Expandable Solar Charging System
A second 40W solar panel can be added for installations with limited sunlight exposure or higher daily usage requirements.
Built for Australian Conditions
IP65 rated construction and weather resistant components designed for Australian and New Zealand outdoor environments.
High Capacity Battery Storage
Dual 18Ah batteries provide reliable stored power for day and night gate operation.
Flexible Installation Options
Suitable for sliding gates, linear swing gates and articulated swing gate systems.
