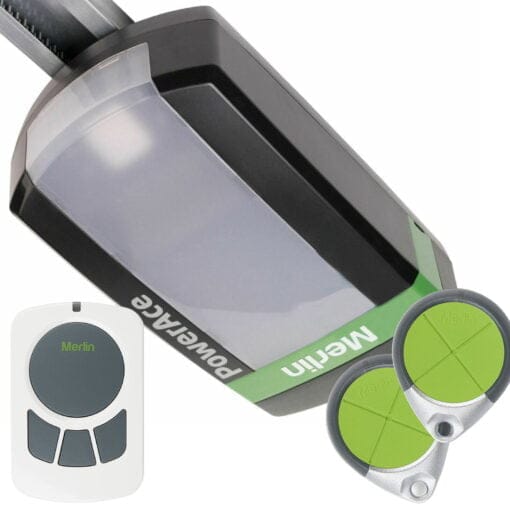

Merlin MS65MYQ Garage Door Opener Includes
1x Merlin “Commander Essential” MS65MYQ Garage Door Opener
2x E970M Four Button Keyring Transmitters
1x E148M Four Button Wireless Wall Mount Remote Control
1x 3.3m Belt C-Rail
1x Curved Door Arm
1x Manual Release Cord
1x Quick Reference Guide
5 Year Warranty Online 1 Year Warranty
Merlin MS65MYQ Replaces These Older Models
The MS65MYQ Commander Essential is the entry model in Merlin’s Commander range, replacing the MT60EVO. If you are replacing an MT60EVO, this is the direct upgrade and it mounts using the same fittings.
Need more capacity? The Merlin MS107MYQ Commander Elite II handles doors up to 20m² and 150kg against 13.5m² and 90kg here, adds battery backup compatibility and corner-to-corner LED lighting.
Merlin MS65MYQ Garage Door Opener Specifications
| Model Number | MS65MYQ |
| Rated Door Area | Up to 13.5m² |
| Maximum Door Size | 2.4m high x 5.5m wide |
| Maximum Door Weight | 90kg |
| Suitable Doors | Steel and timber spring balanced sectional doors |
| Min Head Room | 30mm |
| Rail Included | 3.3m belt C-rail |
| Peak Power | 600N |
| Door Speed | 18 to 21 seconds on a 2.2m high door |
| Battery Backup | Not available on this model |
| Smartphone Control | Optional myQ kit, sold separately |
| MHz Frequency | 433.30, 433.92, 434.54 MHz |
| Encryption | Security+ 2.0 rolling code |
| Memory Register | 64 |
| Lighting | LED, turns off 2.5 minutes after operation |
| Warranty | Online 1 Year Warranty |
Merlin MS65MYQ Garage Door Opener Features
The Commander Essential is the entry model in Merlin’s Commander sectional range, built for single sectional doors up to 13.5m², 2.4m high and 90kg. A quiet 24V DC motor with thermal overload protection drives a belt C-rail, with soft start and soft stop for smooth operation and 600N of pulling force.
Automatic force sensing adjusts the force needed with every cycle, and the premium automatic safety reverse stops and reverses the door if it meets an obstruction on the way down. A manual release cord lets you open the door by hand during a power outage. Timer to close is available once Merlin Safety IR Beams are fitted.
The supplied E970M four button remotes use Security+ 2.0 rolling code encryption, sending a new code with every press. By transmitting across 433.30, 433.92 and 434.54 MHz the remotes select the strongest frequency each time, which virtually eliminates interference and prevents code grabbing devices from replaying the signal. Transmitter range is up to 18% better than earlier Merlin models.
The MS65MYQ is myQ capable with the additional purchase of the myQ Gateway and Safety IR Beams, letting you monitor and control the door from your phone, set schedules and share guest access.
