Description

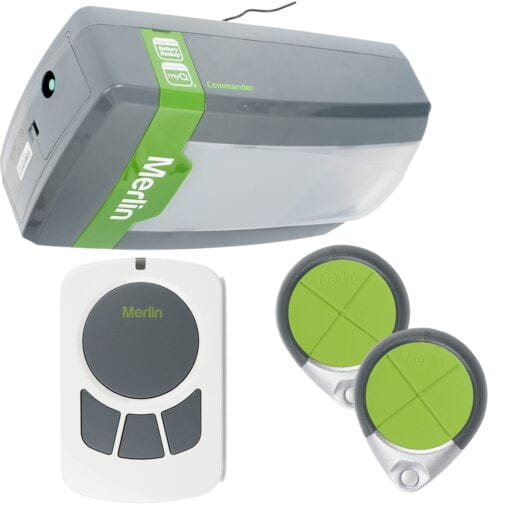

Merlin MS125MYQ Garage Door Opener Includes
1x Merlin “Commander Extreme” MS125MYQ Garage Door Opener
2x E970M Premium Keyring Transmitters
1x E148M Premium Wireless Wall Button
1x 3.3m Belt Rail
7 Year Warranty
Merlin MS125MYQ Garage Door Opener Specifications
| Rated Door Area | 20m² (6.5m W x 3m H) |
| Suitable Doors | Double Panel or Tilt |
| Min Head Room | 30mm |
| Model Number | MS125MYQ |
| Peak Power | 1200N |
| Standby Power | 2.2W |
| Opening Speed | 130mm/sec |
| MHz Frequency | FM 433.92 |
| Memory Register | 64 |
| Lighting | LED Lighting |
| Warranty | 7 Years / 20,000 cycles |
Merlin MS125MYQ Garage Door Opener Features
First introduced in 2009 the Merlin Tilt series, also known as the “MT” series of Tilt, Sectional and Panel openers are one of the most commonly seen roller door openers in Australia. Building upon 10+ years of history, the MS125MYQ offers high quality operation at a low price, with advanced safety features such as slow start / stop, auto reverse and interference free remote controls.
The MS125MYQ is designed for operation in extreme or high wind areas, or for heavy custom dors that normal operators and brands cannot open. The Commander Extreme is also compatible with Merlin’s MYQ Smart Kit and has heavy lifting power of 150kg or 286kg (with beams) plus new powerful LED lighting.
The included E970M remote controls features a rolling code encryption called Security+ 2.0, which generates a new code each time the button is pressed from over trillions of possibilities. By transmitting across three frequencies, the E970M all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your garage door.
Older MT models this unit can replace includes the MT5580, MT600, MT800, MT1000 and MT100EVO.
