Description

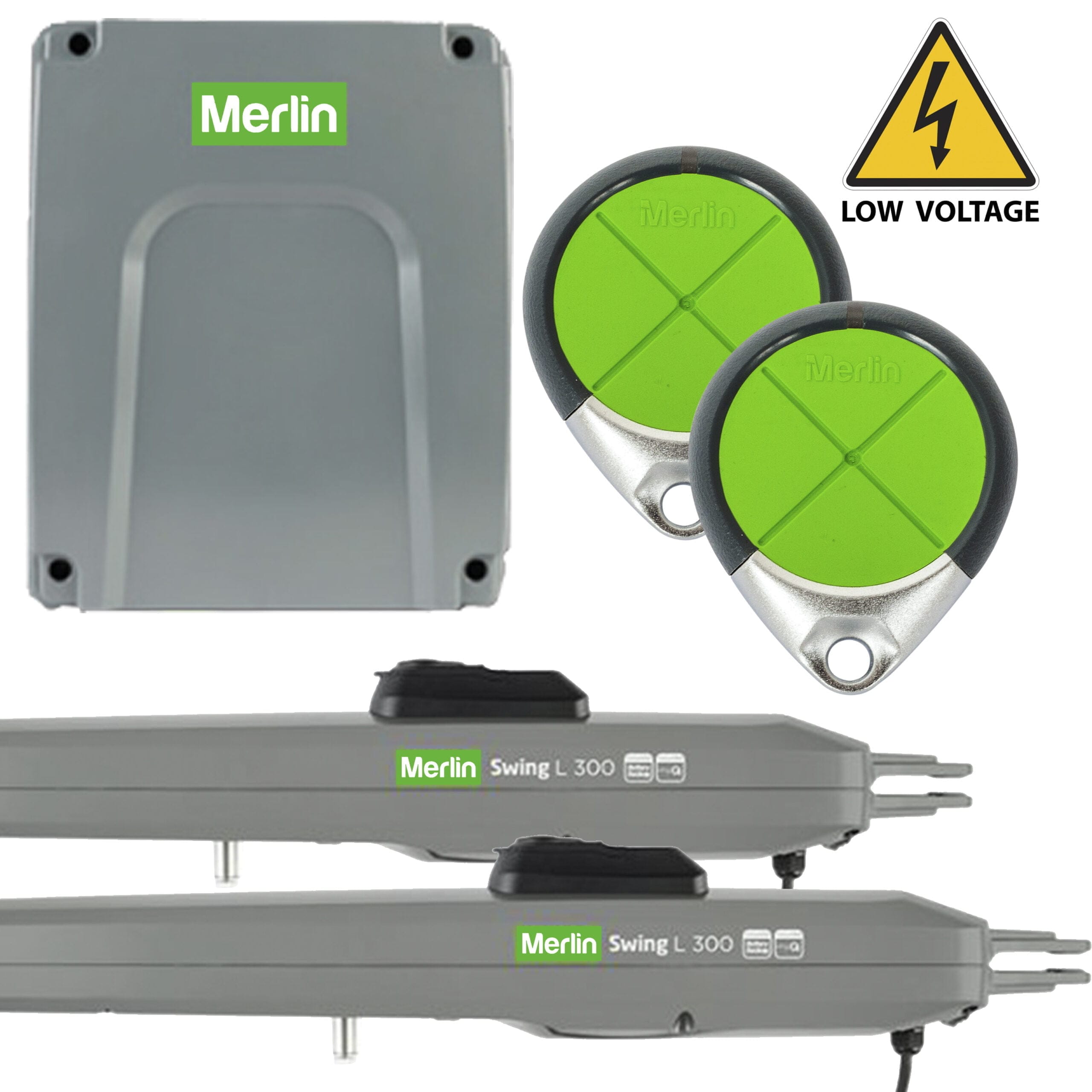

Merlin MGLDK-LV Swing 300 Includes
2x Merlin “Swing 300” MGLDK-LV Swing Gate Opener
2x E970M Premium Keyring Transmitters
Required Hardware Fixings (Bolts Etc)
3 Year / 7500 Cycle Warranty
Merlin MGLDK-LV Swing 300 Specifications
| Smart MYQ Capable | Yes |
| Max Gate Width | 2.5 metres |
| Max Gate Weight | 200kg @ 3m wide, 250kg @ 2.5m wide, 300kg @ 2m wide |
| Model Number | MGLDK-LV |
| Input Power | 24V |
| Water Protection | IP44 |
| Opening Angle | 120° wide (opens in 13-15 seconds) |
| Opener Dimensions | 137mm x 835mm x 95mm |
| Memory Register | 64 |
| Warranty | 3 Years / 7,500 cycles |
Merlin MGLDK-LV Swing 300 Features
Primarily a garage door opener manufacturer Merlin has released a number of gate opener models over the years, including the swing WingMate gate opener series and the XLR8 sliding gate opener. The brand new Merlin Swing 300 offers advanced add-on functionality for todays requirements. The MGLDK-LV Swing 300 has an optional battery backup option available and is also compatible with the Merlin MYQ Outdoor Gate Connectivity Bundle.
Suitable for sliding gates up to 3m wide / 200kg, the Swing 300 is IP44 Weather Resistant and smoothly opens gates with a 120° angle withing 13-15 seconds.
The included E970M remote controls features a rolling code encryption called Security+ 2.0, which generates a new code each time the button is pressed from over trillions of possibilities. By transmitting across three frequencies, the E970M all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your garage door.
