Grifco Industrial Roller Shutter Includes

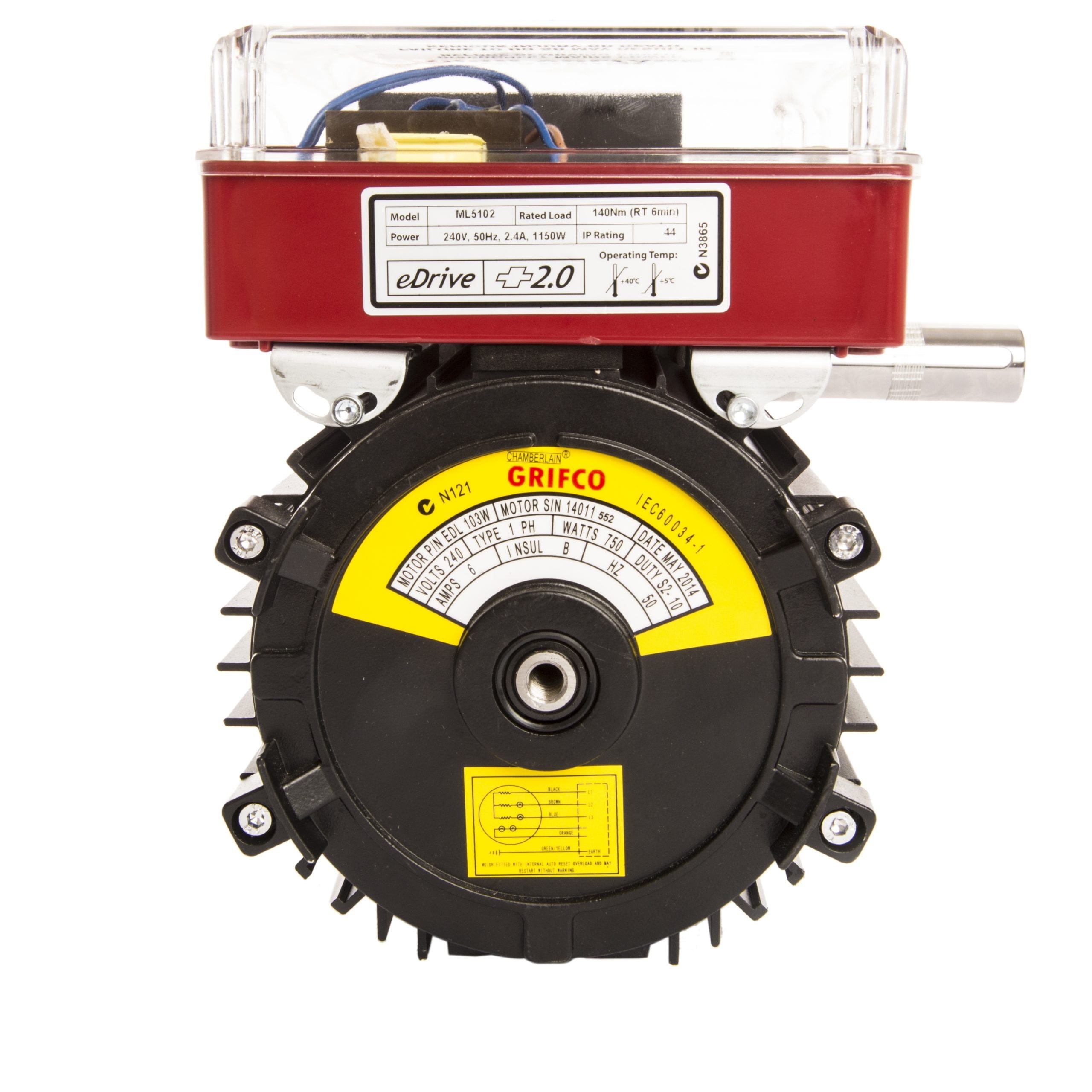

1x “eDrive” Grifco Industrial Roller Shutter ML5102
1x C10A-4 Wall Control
1 Year Warranty
1 Year Warranty
Grifco Industrial Roller Shutter Opener Features
The ML5102 is one of Grifco’s commercial shutter openers. As an industry leader for spring-balanced roller shutter and grille operators, the ML5102 Shutter Roller Opener has a proven history of reliability. The ML5102 is capable of operating a low cycle standard roller shutter upto 36m².
The included C10A-4 Wall Control features an Up / Down / Stop function to allow you to have full control over your motor. The wall console’s Service LED will begin to flash when the motor requires servicing, allowing you to extend the life of your operator and avoid damage to your door by keeping the motor in optimal condition.
Other features of the Grifco Industrial Roller Shutter include:
- Absolute position encoder ensures reliable limit performance throughout the life of the opener
- Push button set limits from the controller (no need to access limits at the opener)
- Push button set door direction (polarity reversal)
- 3 limit positions standard with every opener
- Door direction detection (prevents reverse rolling of door in the event of polarity being changed)
- All openers can be expanded to suit virtually every industry specified operational requirement
- Controllers and accessories all simply plug-in
- Gearbox and motor have cooling fins improved heat dissipation, greater efficiency and less wear.
- 3 independent safety (Beams and/or Edge) inputs with auto-reverse functionality
Grifco Industrial Roller Shutter Opener Specifications
| Rated Door Area | 36m² |
| kW | 0.75 |
| Amps | 6 |
| HP | 1 |
| Volts | 240 |
| Phase | 1 |
| IP Level | IP 44 |
| Duty | LC |
| Included Wall Ctrl | C10A |
| Remote Frequency | 433.30 / 433.92 / 434.54MHz AM |
| Security | eDrive +2.0 |
| Warranty | 1 Year Warranty |
