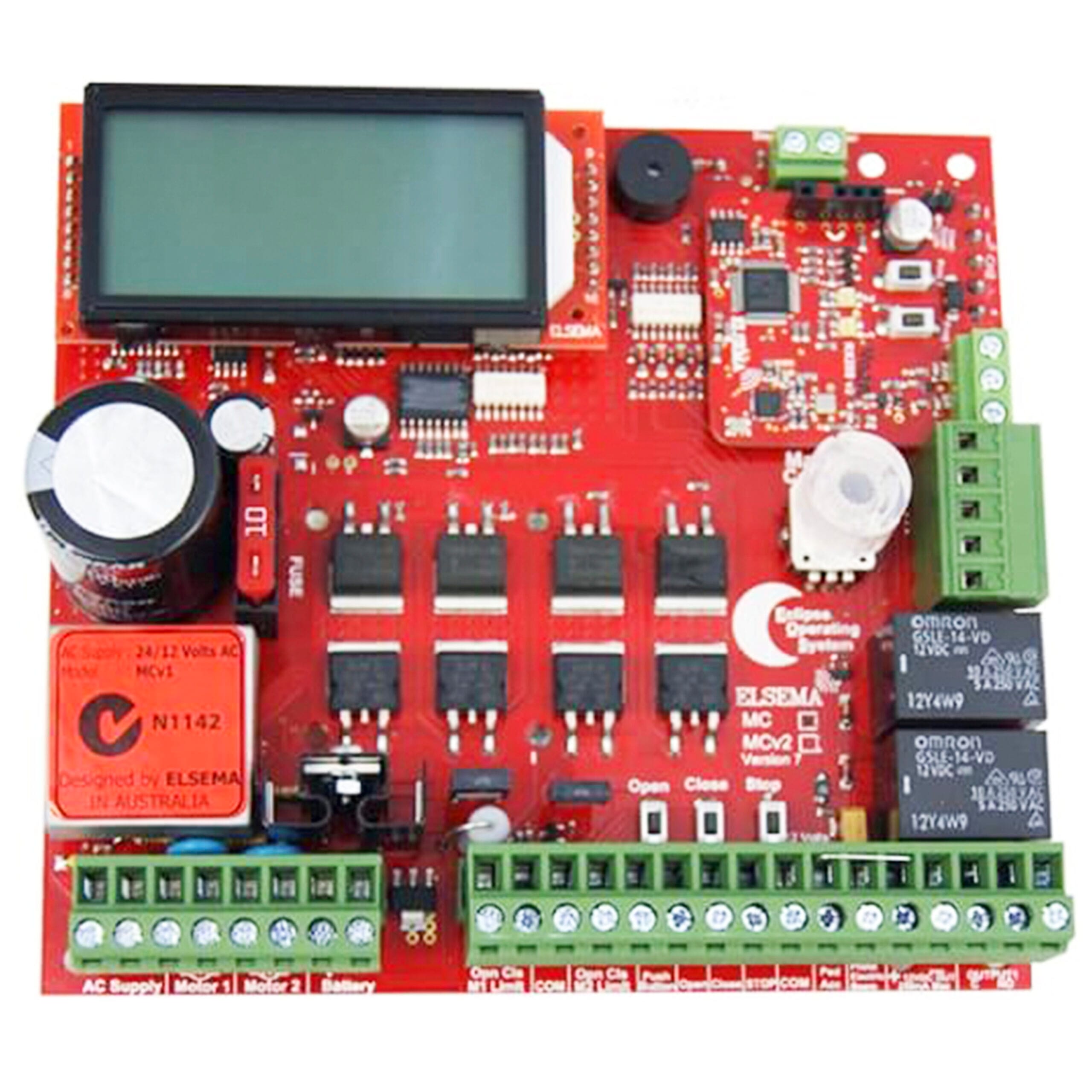

Elsema MCv2 Eclipse 12V / 24V Double MC Board

Elsema MCv2 Eclipse Gate Control Board.
Free Shipping (FREE): 2-10 Business Days
Tracked Shipping ($5.95): 2-5 Business Days
Express Shipping ($12): 1-3 Business Day

$465.01 inc. GST

  • Free shipping on all orders
  • 60 days returns policy
  • Order before 1pm for same day despatch
  • Stuck on finding what you need? Text us!
    0419 198 148
SKU: MCv2 Double Control Board Category: Tag:

Elsema Eclipse Double MC Control Board Specifications

Motor Compatibility Double Swing or Sliding Gates, 12V or 24V DC Motors
Operating System Eclipse Operating System (EOS)
Voltage Switchable 12/24 Volt DC Motor Operation
Display 4-Line LCD for Live Status and Setup
Receiver Input Industry Standard 6-Pin
Additional Power Outputs 12/24 Volt DC for Accessories
Standby Current 12mA, suitable for solar gates
Battery Charger Built-in 12/24 Volt Charger
Warranty 2-Year Manufacturer’s Warranty

Elsema Eclipse Double MC Board Compatibility

  • Compatible with double swing or sliding gate motors in 12V or 24V DC configurations
  • Industry-standard receiver input for seamless integration with remote controls
  • Optional configurations available with transformers and backup batteries

Elsema Eclipse Double MC Board Features

The **Elsema Eclipse Double MC Control Board** represents a new era in gate automation technology, designed to bring high-end functionality and ease of use to gate and door motors. Suitable for both double swing and sliding gates, this board features the Eclipse Operating System, providing advanced control with simple setup and adjustments. With its user-friendly 4-line LCD, users can monitor motor performance in real-time and follow intuitive setup instructions.
The Elsema Eclipse Double MC Board supports a range of intelligent features, including soft start/stop, speed and force adjustment, and auto-profiling for optimized performance. This board’s low 12mA standby current makes it ideal for solar gate installations, while its energy-saving mode further reduces operational costs. Various input options allow for customization, including push button, pedestrian access, and photoelectric beam, making this control board adaptable to diverse requirements.

Built from customer feedback, this control board also features an easily accessible 1-touch button for quick setup and operation, creating a streamlined experience for both installers and end-users. With adjustable auto-close, obstruction load, and courtesy light outputs, the MC board offers flexible control for secure, efficient gate automation.

  • Advanced Eclipse Operating System: Ensures optimized operation with soft start/stop and auto-profiling.
  • Dual Voltage Compatibility: Switches between 12V and 24V, suitable for various motor types.
  • Energy Efficient: 12mA standby current, ideal for solar-powered installations.
  • Comprehensive Control: Supports multiple input types, including photoelectric beams and pedestrian access.
  • User-Friendly Design: Large 4-line LCD displays live motor performance and input/output status.
  • Optional Configurations: Available with transformer, backup batteries, or as card-only.

What’s Included

  • 1 x Elsema Eclipse Double MC Control Board
  • Installation Instructions
  • Free Standard Shipping Australia-Wide*
  • 2-Year Manufacturer’s Warranty*

Applications

  • Automatic Double Swing and Sliding Gates: Ideal for larger gate systems requiring reliable automation.
  • Solar-Powered Gate Systems: Low standby current and energy-saving features make it optimal for solar applications.
  • Advanced Automation Needs: Configurable with multiple inputs and optional transformers and backup batteries.

The Elsema Eclipse Double MC Board combines cutting-edge technology and user-friendly design, making it an exceptional choice for gate and door automation. With extensive features and flexible configurations, this control board is engineered to set a new standard in the industry.

Weight 0.5 kg
Dimensions 23 × 20 × 5 cm
MPN
Manufacturer
