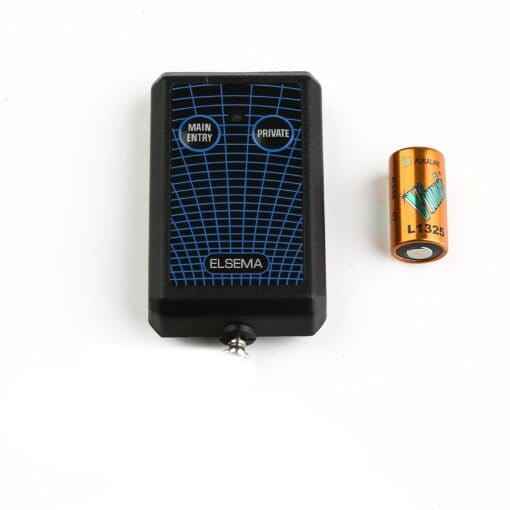

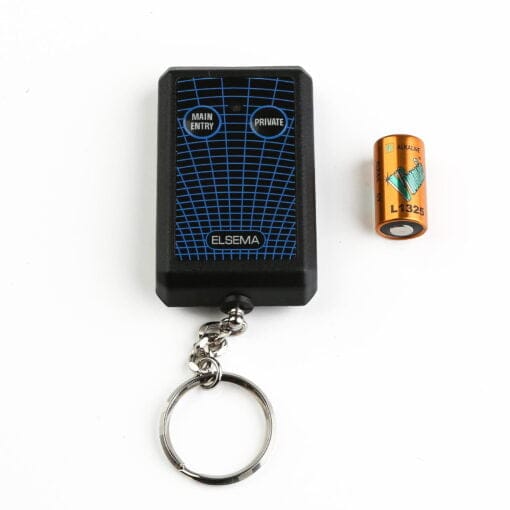

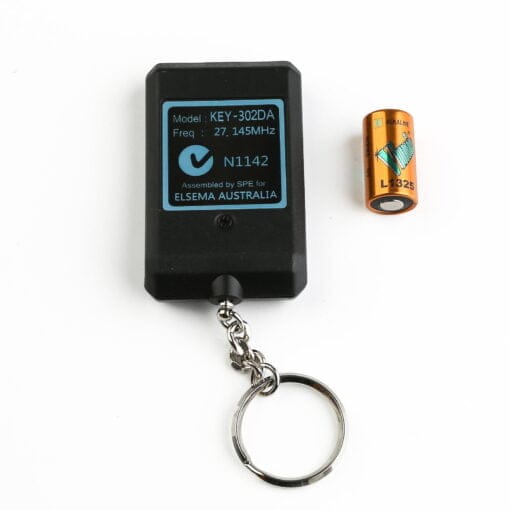

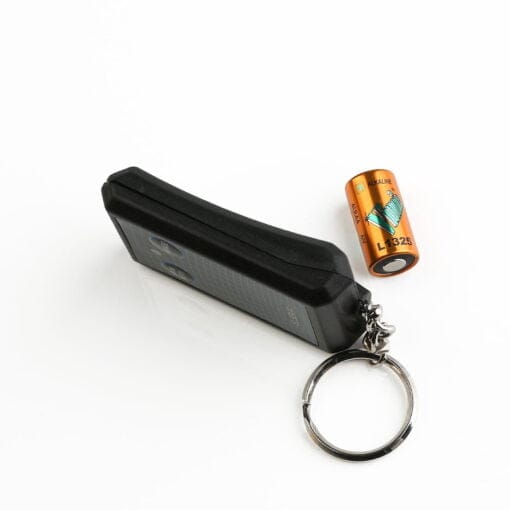

Elsema KEY302DA Remote
1x Genuine Elsema KEY302DA Remote
Battery Not Included (9v)
Easy To Read Instructions
Elsema KEY302DA Remote Features
The KEY-302DA remote control has two button, which will allow you to code this remote control into a door and gate opener. The Elsema KEY302DA remote control is a smaller version of the Elsema FMT-302DA remote control. Operating in the 27MHz band, the FMT series achieves the highest possible standard of performance by using a crystal-controlled, frequency modulated (FM) radio signal. The larger battery size allows the remote control to transmit over larger distances.
Elsema KEY302DA Remote Programming Instructions
Remote to Remote or Remote to Receiver Programming
Open your old remote and set the dip switches in your new remote control to exactly what your old remote is set to. Reverse the code (Dipswitch 12 in the ATA would be the position of dipswitch 1 in your Elsema remote, 11-2, 10-3, etc) if your old remote control is ATA branded. If you do not have an old remote control, you will need to find the receiver in your garage or gate motor to find what code you need to put into your new remote control. Again, if your garage door motor is ATA you will need to reverse the code.
Please note that the KEY302DA is not compatible with the normal two button range of remote controls in the market. The Elsema KEY302DA remote control works differently to the other multi-button Elsema remote controls.
Elsema KEY302DA Compatibility
The Elsema KEY-302DA remote control will suit garage door openers operated by one of the below remote controls. Please note that when changing from a two or four button Elsema remote control to a single button Elsema remote, you might need to change the code found inside your garage door or gate opener as well as the code inside the remote control. This is also suitable for QuikCorp’s range of Quik Spray hose reel systems using Elsema Remote controls.
Compatible Remote Controls
