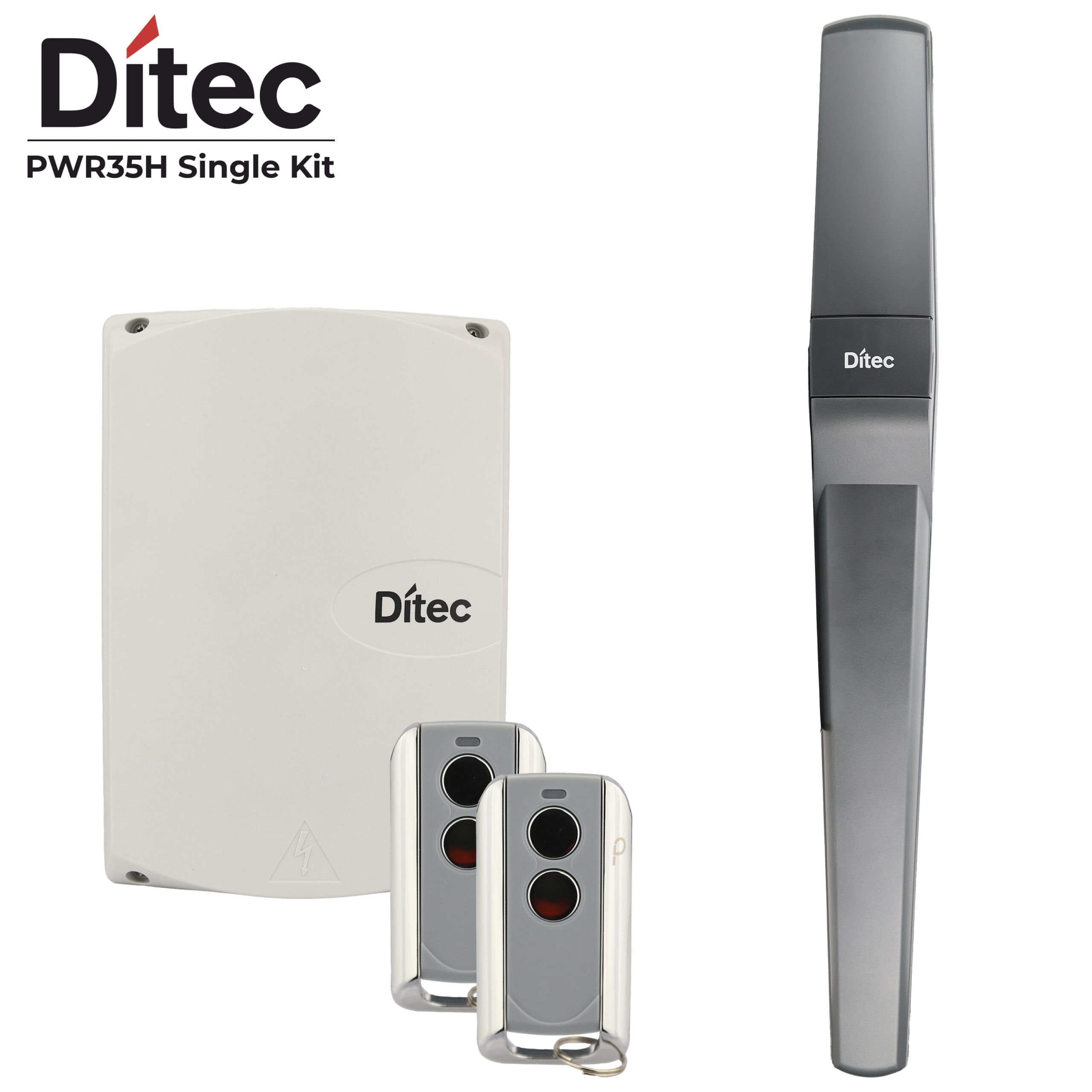

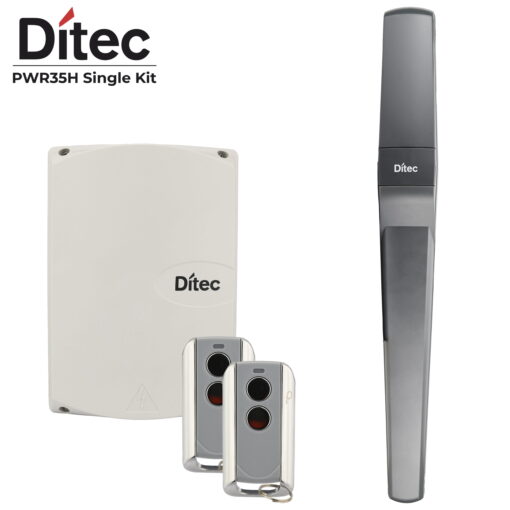

The Ditec 1PWR 35H Single Swing Kit Includes
1x Ditec 1PWR 35H Swing Arm
1x Ditec LCU35H Gate Control Board
2x SLIM2E-DC Remote Controls
2 Year Warranty
Data Sheet
Specifications
| Max Gate Length | 3.5m |
| Max Gate Weight | 600 kg x 1.75 m 250 kg x 3.5 m |
| Model Number | 1PWR 35H |
| Peak Power | 3000N |
| Standby Power | 2.2W |
| Opening Speed | 14÷80 s / 90° |
| MHz Frequency | FM 433.92 |
| Memory Register | 64 |
| Water Protection | IP44 |
| Warranty | 12 Months |
Ditec 1PWR 35H Single Swing Kit Features
Introducing the Ditec 1PWR 35H Single Swing Gate Kit, a part of the innovative Ditec PWR range. This electromechanical actuator is specially designed for swing gates in residential, condominium, and industrial settings. The 1PWR 35H model, operating on 24Vdc, is perfect for gates up to 2.5 meters, combining quality and strength with ease of installation and maintenance.
- Tailored for gates up to 2.5 meters in various settings, from homes to industrial areas.
- Streamlined installation process with innovative features for quick setup.
- Enhanced safety with virtual-encoder technology and obstacle detection.
- Advanced position monitoring for precise and reliable gate operation.
- Easy maintenance design for long-term, hassle-free use.
The Ditec 1PWR 35H Single Swing Gate Kit is your go-to solution for a high-quality, safe, and easy-to-install swing gate automation system, blending advanced technology with user-friendly features.
Ditec 1PWR 35H Single Swing Kit Features
Simplified Installation
Revolutionize your installation process with the 1PWR 35H, which reduces installation time by 60%. It features pre-drilled plates, one-handed installation capability, and a mounting tool with a built-in spirit level for perfect height calibration.
Versatile for All Applications
Equipped to handle emergencies with a set-up for remote manual release and magnetic limit switch provision (specific to PWR35H) for precise speed adjustment, this kit is ideal for applications requiring quick gate operation.
Efficient and Safe Operation
The 24-Volt DC virtual-encoder technology ensures constant electronic control of impact forces and immediate obstacle detection. This safety feature stops or reverses motion when obstacles are detected, with an added option for magnetic limit switches.
Innovative Position Monitoring
The Ditec Virtual Encoder, a proprietary continuous position monitoring system, is also available in a 230V AC version with the new Ditec LCA control unit, offering precision and safety for motors without encoders.
Easy Maintenance
Maintenance is made effortless with a protected loading valve inside the manual release area, allowing for the simple addition of universal lubricant (type EP1) using a manual lubricator, without the need to disassemble the actuator.
