ATA NeoSlider NES-500 Sliding Gate Opener

$684.00 inc. GST

or 4 payments of $171.00 with Afterpay

The ATA NES500 is suitable for Sliding Gates up to 500kg / 6m long.

Comes with free shipping Australia Wide and 2 Year Warranty.

Also includes 2x Remote Controls and installation instructions!

Categories: , , Tags: , , SKU:60196 Availability: In Stock
Share this

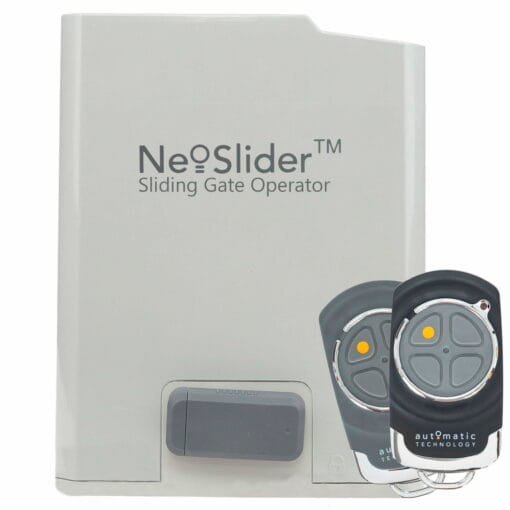

ATA NES-500 Sliding Gate Opener Includes

1x ATA “NeoSlider” NES-500 Sliding Gate Opener
2x ATA PTX5v2 Keyring Transmitters
Installation Instructions
2 Year Warranty

ATA NES-500 Sliding Gate Opener Features

The NeoSlider has been in use by ATA for over 15 years as one of Australia’s most reliable gate operators. When looking for your next gate operator, know that ATA offer proven longevity and quality at an affordable price, unlike other unknown imported brands.
By being designed in Australia, the ATA NES-500 Sliding Gate Opener has been built for the Australian conditions and requirements. The internal gearing also prevents intruders from gaining access to your yard, ensuring your security and privacy. Finally, the remote controls this unit utilizes feature a rolling code encryption called TrioCode128, which generates a new code each time the button is pressed from trillions upon trillions of possibilities.
By transmitting across three frequencies the remote controls all but eliminate interference problems, meaning your gate will open each time, every time. Due to the remotes high security, only your PTX5v2 remotes will ever open your NeoSlider preventing code grabbing devices from ‘replaying’ the code to open your gate. Click here to see how you would program your remote controls into your motor.
Optional accessories include a smartphone control kit, battery backup, PE Safety Beams or a keypad.

ATA NES-500 Sliding Gate Opener Specifications

 Max Gate Length
 Max Gate Weight
 Model Number NES-500
 Peak Driving Force
 Motor Type 24V d.c. Permanent Magnet
 Standby Power 2.2W
 Gate Travel Speed 200mm/sec
 Remote Frequency FM 433.92 TrioCode 128
 Memory Register 64
 Water Protection IP44
 Warranty 2 Year / 5,000 Cycle


ATA NES-500 Sliding Gate Opener Warranty

ATA & B&D have recently changed their warranty process, to make it more streamlined for DIY installed units. In the unlikely event of a problem occurring with your motor, the following will occur:
1. You call us up and we attempt to diagnose / resolve the problem over the phone.
2. In the event the fault cannot be resolved over the phone, we’ll need for the motor to be returned to us (at your cost).
3. As soon as we receive the motor back in our factory, we’ll check the motor over for any obvious damage that is not warrantable (Lightning strike / power surge, water damage, impact damage).
4. We then send you a brand new motor (24/48 hour turnaround) from our stock at our cost and deal with ATA / B&D in order to get a replacement, which happens at a later date. You are not involved in this process at all.
This is several weeks faster than the previous warranty process and orientated around you as the customer.

Additional information

Weight 10 kg
Dimensions 50 × 10 × 10 cm
