Description

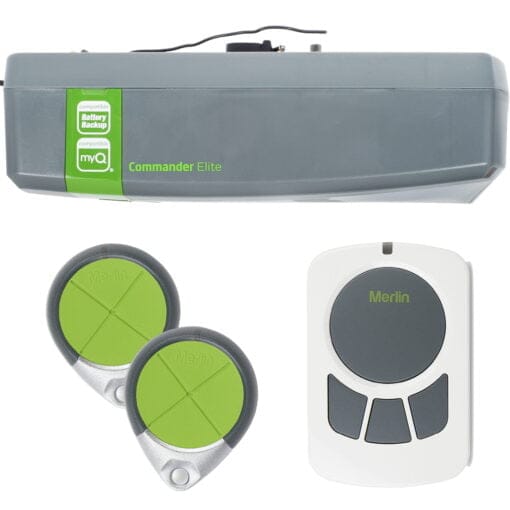

Merlin MS105MYQ Garage Door Opener Includes

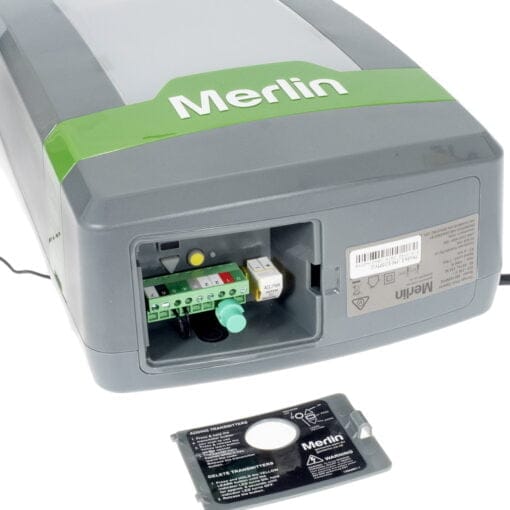

1x Merlin “Commander Elite” MS105MYQ Garage Door Opener
2x E960M Premium Keyring Transmitters

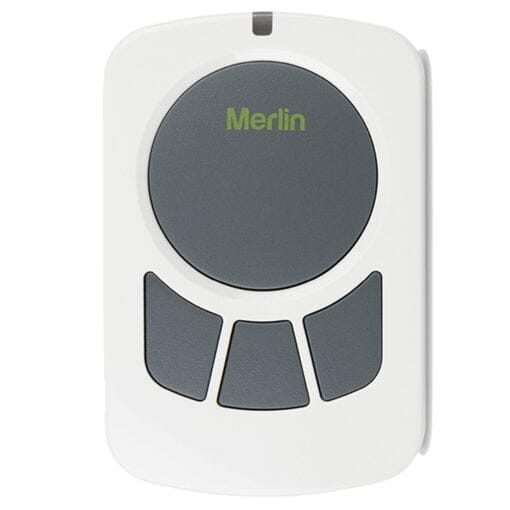

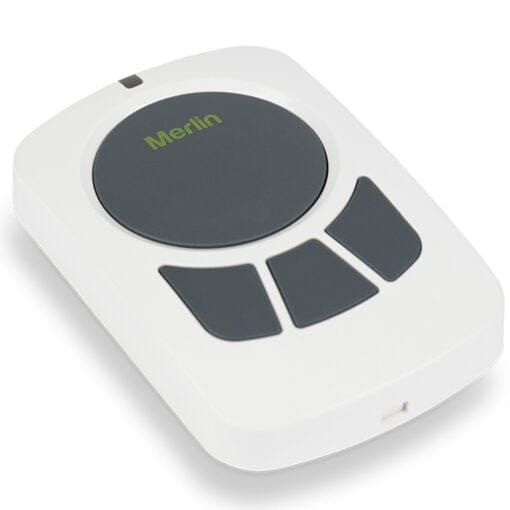

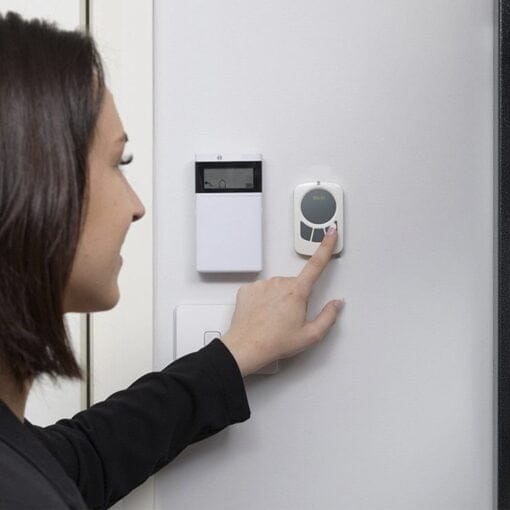

1x E138M Premium Wireless Wall Button
1x 3.3m Belt Rail
7 Year Warranty
Merlin MS105MYQ Garage Door Opener Specifications
| Rated Door Area | 18m² (6m W x 3m H) |
| Suitable Doors | Single, Double Panel / Tilt |
| Min Head Room | 30mm |
| Model Number | MS105MYQ |
| Peak Power | 1000N |
| Standby Power | 2.2W |
| Opening Speed | 130mm/sec |
| MHz Frequency | FM 433.92 |
| Memory Register | 64 |
| Lighting | LED Lighting |
| Warranty | 7 Years / 20,000 cycles |
Merlin MS105MYQ Garage Door Opener Features
First introduced in 2009 the Merlin Tilt series, also known as the “MT” series of Tilt, Sectional and Panel openers are one of the most commonly seen roller door openers in Australia. Building upon 10+ years of history, the MS105MYQ offers high quality operation at a low price, with advanced safety features such as slow start / stop, auto reverse and interference free remote controls.
As the model up from the now replaced MT100EVO, the MS105MYQ Commander Elite offers advanced add-on functionality. The MS105MYQ has an optional battery backup option available is also compatible with the Merlin MYQ Connectivity Kit.
The included E970M remote controls features a rolling code encryption called Security+ 2.0, which generates a new code each time the button is pressed from over trillions of possibilities. By transmitting across three frequencies, the E970M all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your garage door.
Older MT models this unit can replace includes the MT5580, MT600, MT800, MT1000 and MT100EVO.
WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN
– Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the esophagus.
– If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 for fast, expert advice.
– Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. – Do not use it if the compartment is not secure.
– Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
– Tell others about the risk associated with button batteries and how to keep their children safe.
