The Ditec LCU40H Gate Control Board Includes

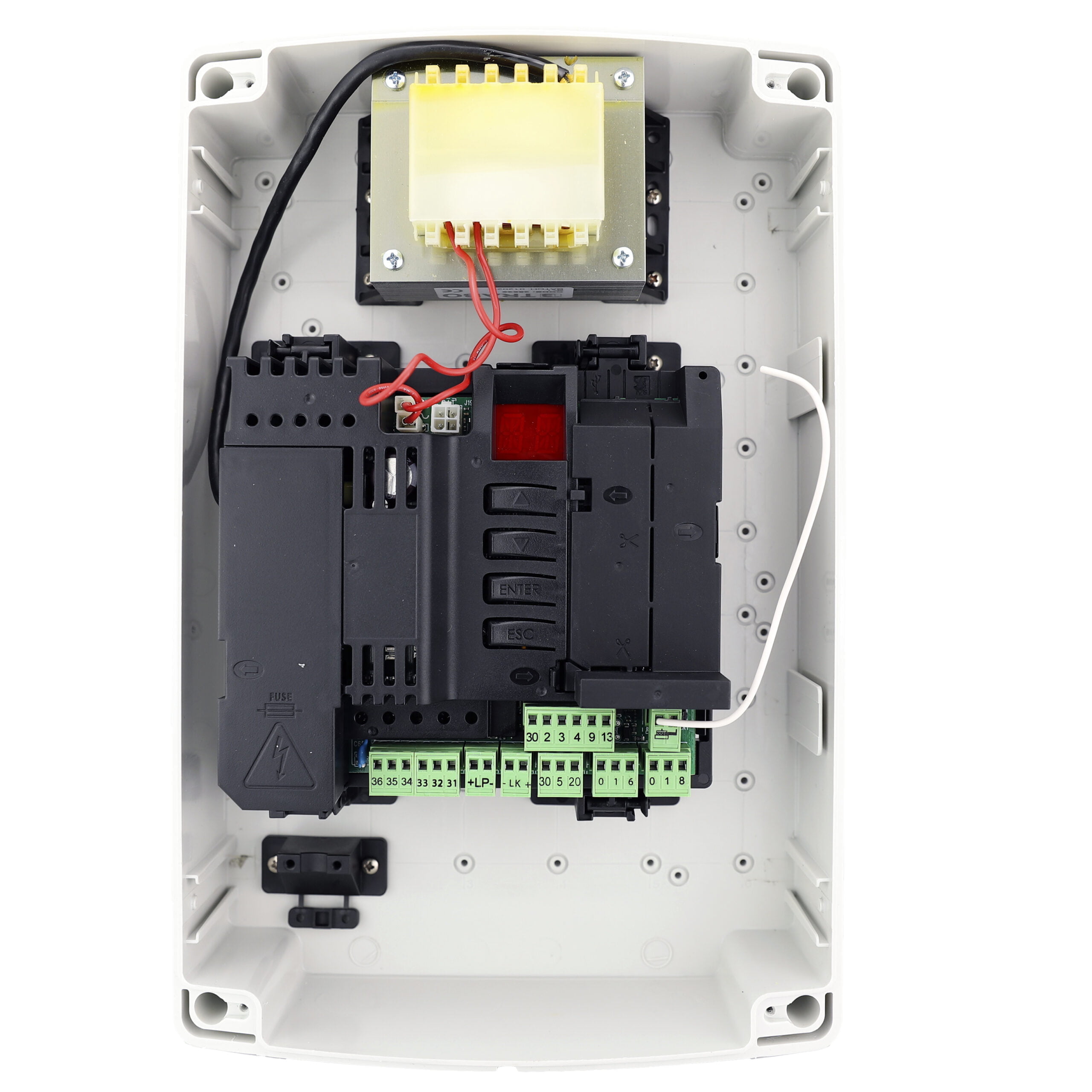

1x Ditec LCU40H Gate Control Board

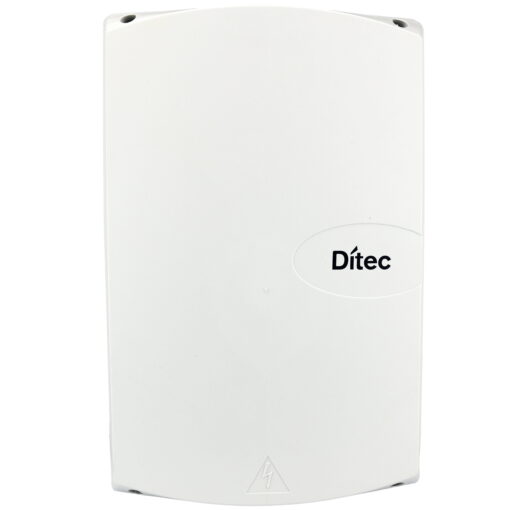

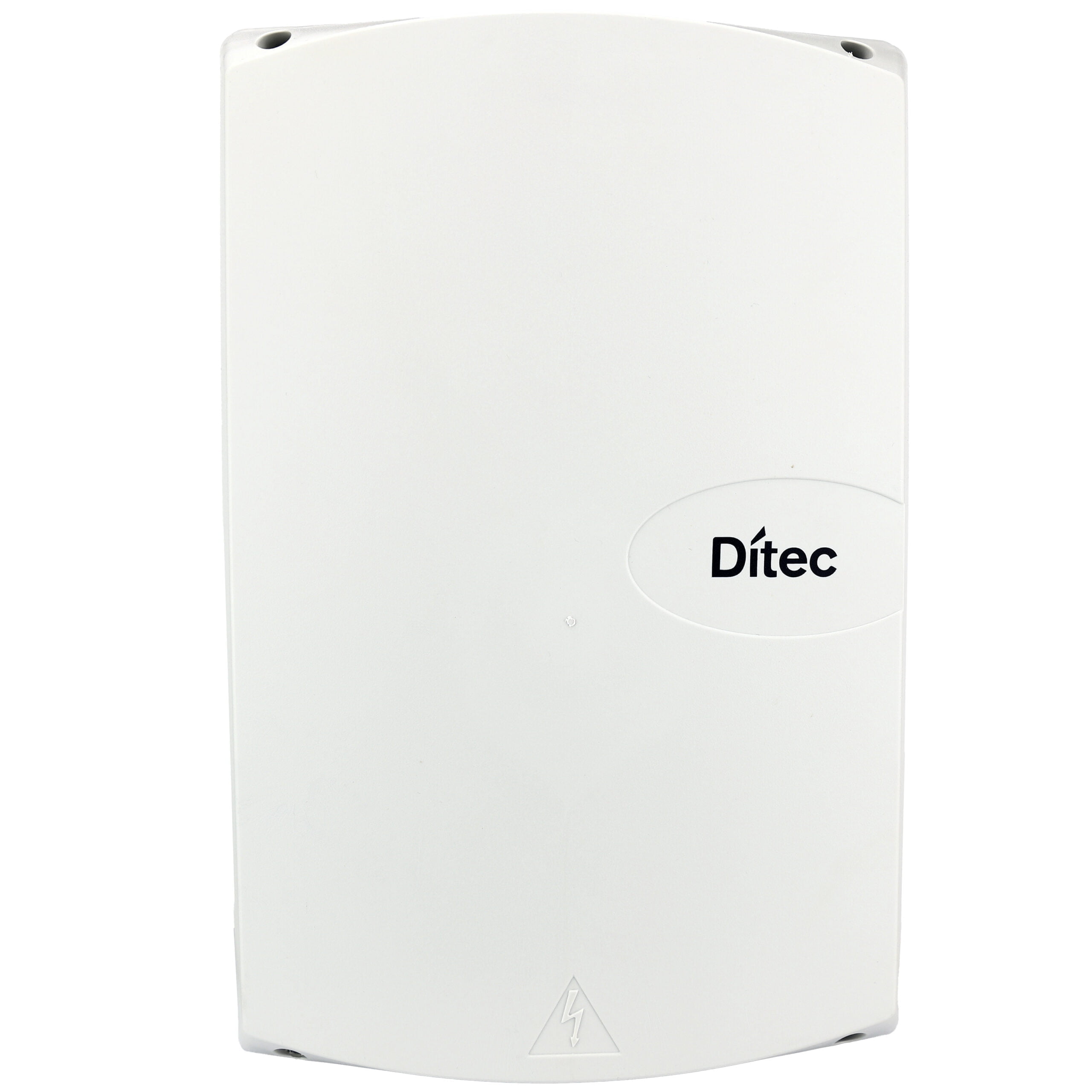

1x Control Board Housing
1 Year Warranty
Data Sheet

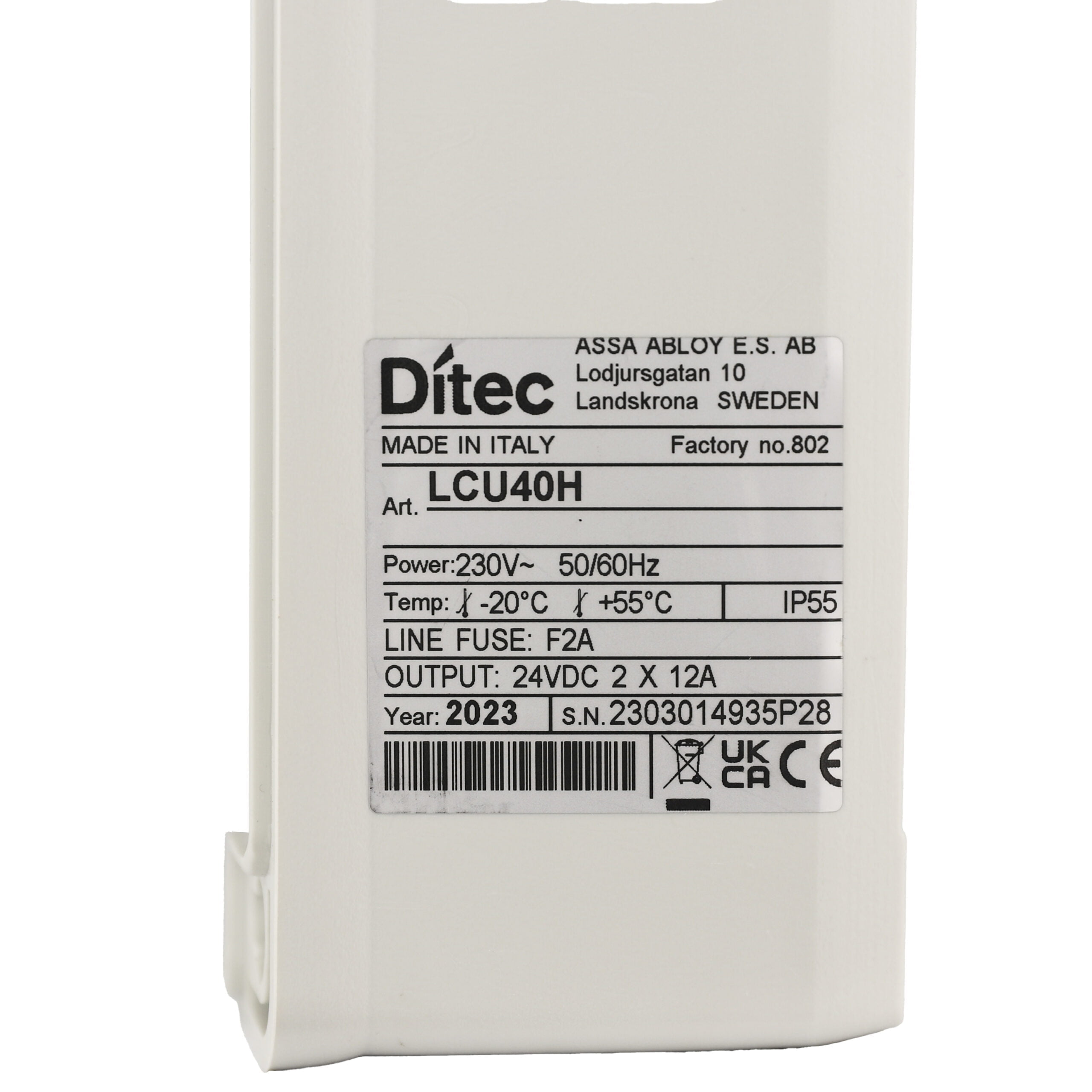

Specifications
| Case Dimensions | 23.8 x 12 x 35.7 (cm) |
| Protection Rating | IP55 |
| Manufacturer | Ditec |
| Model Number | LCU40H |
| Instructions Included | Yes |
| Accessories Power Supply | 24 Vdc / 0.3 A direct – 0.5 A max |
| Warranty | 1 Year |
Ditec LCU40H Gate Control Board Features
Elevate your gate automation system with the innovative Ditec LCU40H Gate Control Board. This advanced control unit is engineered to provide seamless, efficient, and secure operation for a wide range of gate automation needs. Certified by TUV Rheinland for quality, the LCU40H stands as a testament to reliability and performance.
- Tailored for diverse gate types and motor configurations.
- Offers advanced control and monitoring for optimal gate operation.
- Expandable features to suit different security and automation needs.
- Energy-efficient and environmentally conscious design.
- Easy fault detection and maintenance with sophisticated data logging capabilities.
- Durable construction for lasting reliability.
The Ditec LCU40H Gate Control Board is your ideal solution for a state-of-the-art gate automation system, combining cutting-edge technology with user-friendly features for superior gate control and security.
Ditec LCU40H Gate Control Board Features
Versatile Motor Compatibility
The LCU40H is suitable for one or two motors up to 12A (6A for the LCU30H model), making it a versatile choice for various gate types. It’s compatible with Ditec models including PWR 25H, PWR 35H, PWR 50H, PWR 50HV, PWR 50HR, Facil 3H, Arc BH, Arc 1BH, Cubic 6H, Cubic 6HV, Dor 1BH, Dor 1BHS.
Advanced Monitoring and Configuration

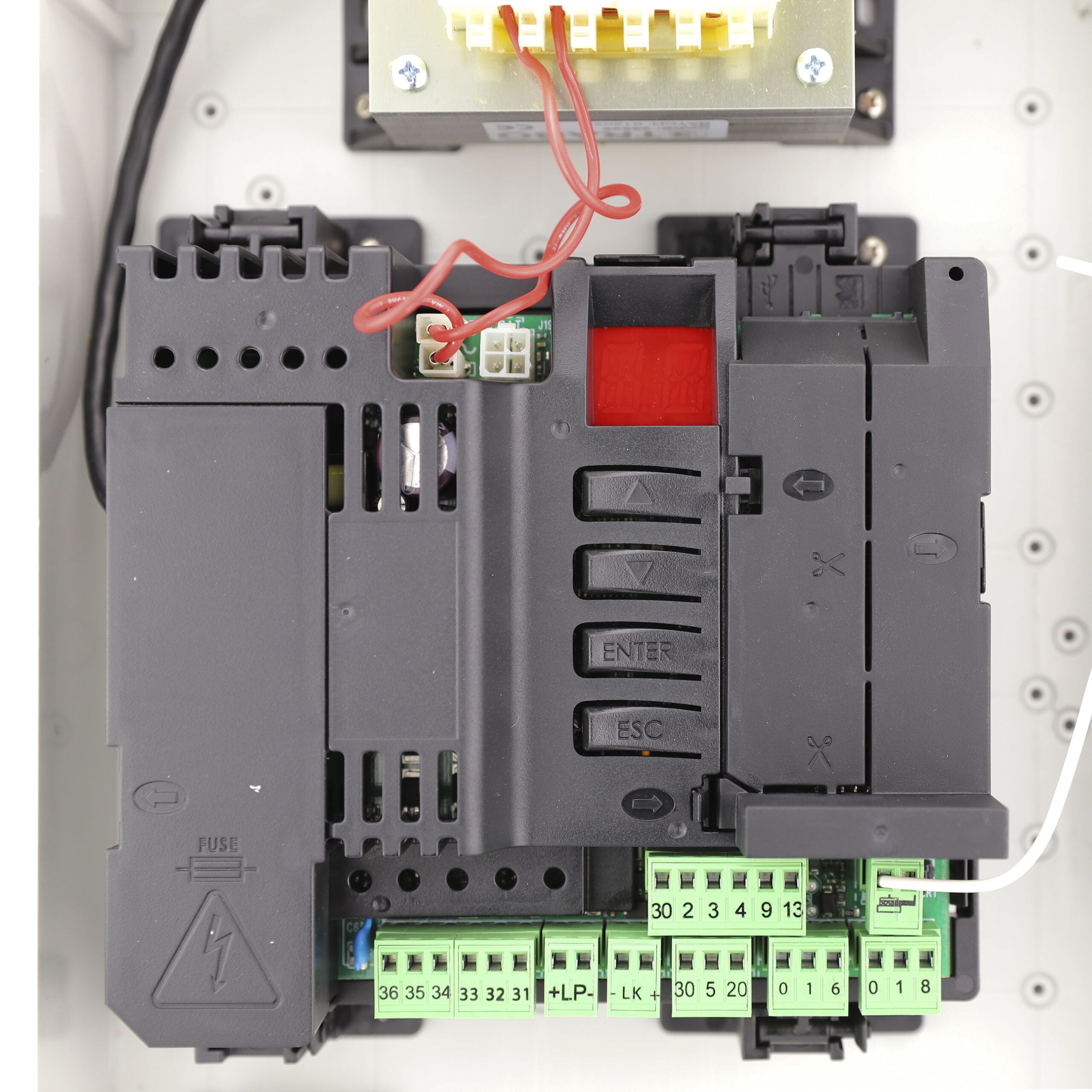

With a digital display, this control unit allows easy configuration and continuous monitoring of gate position and speed. It enables precise adjustments for acceleration, deceleration, breakaway current, and approach speeds during opening and closing.
Expandable Functionality
The system’s functionality can be expanded with additional plug-in cards for self-monitored safety edges, magnetic loop detectors, or Bluetooth modules, enhancing its adaptability and use.
Virtual Encoder Technology
Employing Virtual Encoder technology, the LCU30H ensures constant monitoring of impact forces and immediate detection of obstacles, complying fully with standard 13849.
Efficient Fault Detection
Datalogging via LED display (LCU30H) or microSD and dedicated software (LCU40H) simplifies the detection of faults and maintenance operations, with data analyzable through Amigo software.
Energy-Efficient Design
The GREEN MODE function significantly reduces power consumption to less than 1W, making it an environmentally friendly choice.
Solar-Ready Power Supply
The unit is SOLAR ready, offering versatility for power supply options, including hybrid solutions.
Robust Build
With an IP55 plastic housing, the LCU30H is built to withstand various environmental conditions, ensuring long-lasting performance.
