Description

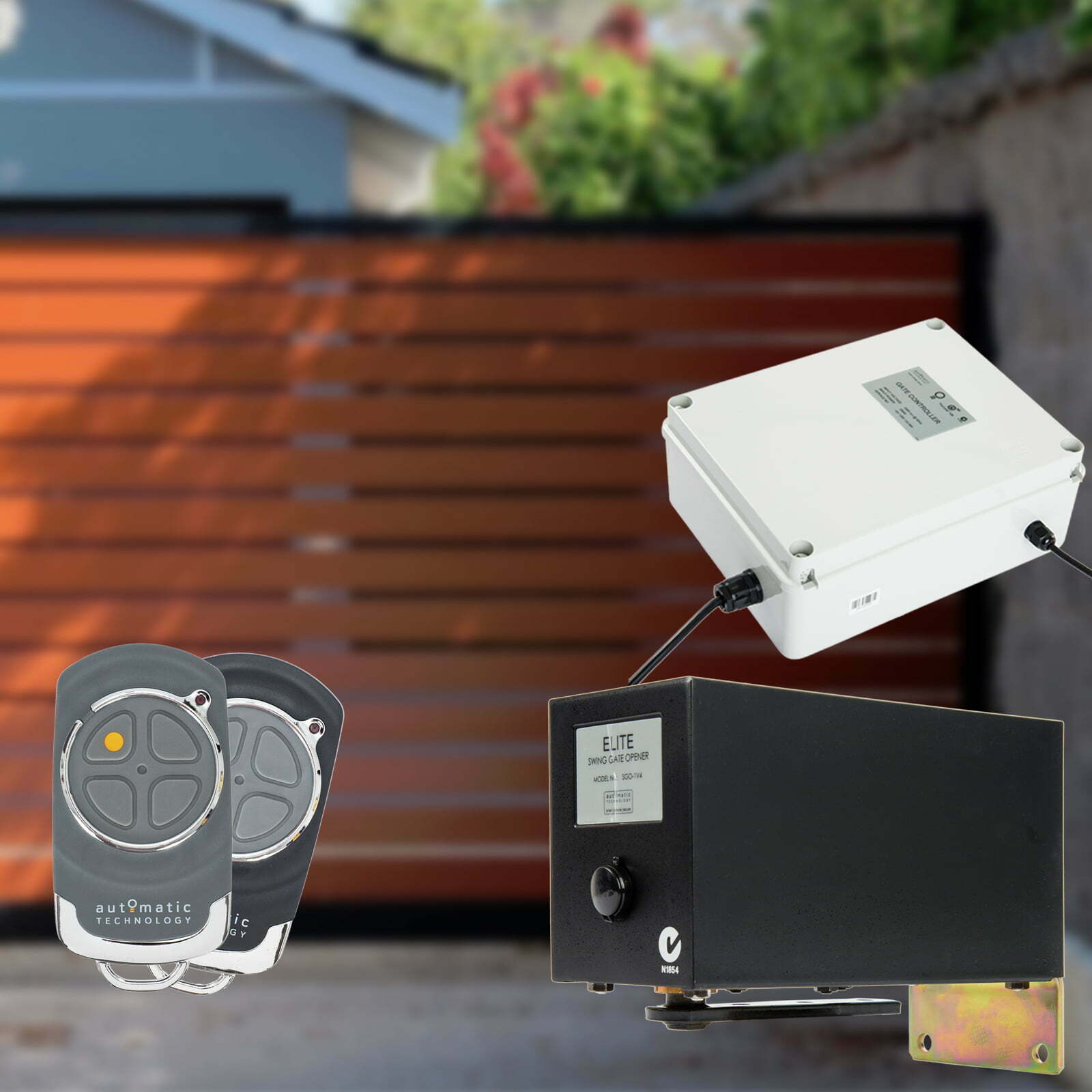

The ATA Swing Gate Opener Includes
1x SGO1v4 “Elite” ATA Swing Gate Opener Powerhead
2x ATA PTX 6 Gate Remote Controls
1x DCB05 Control Board
2 Year Warranty
Specifications
| Max Gate Length | 9.8m |
| Max Gate Weight | 250Kg |
| Model Number | NES-800 |
| Peak Power | 280N |
| Standby Power | 2.2W |
| Opening Speed | 200mm/sec |
| MHz Frequency | FM 433.92 |
| Memory Register | 64 |
| Water Protection | IP44 |
| Warranty | 2 Year / 5000 Cycles |
Sideroom Mounting Information
| Mount Distance | Hinge Distance | ||||||||
| 0 | 50 | 100 | 125 | 150 | 180 | 200 | 220 | mm | |
| Sideroom Clearance | |||||||||
| 90 | 470 | 470 | 470 | 470 | 470 | 470 | 465 | 460 | mm |
| 120 | 450 | 470 | 480 | 470 | 465 | 460 | 435 | 425 | mm |
| 140 | 470 | 465 | 470 | 465 | 460 | 440 | 420 | 390 | mm |
| 200 | 470 | 465 | 445 | 430 | 400 | 350 | 390 | 250 | mm |
ATA Swing Gate Opener Features
Having been in use for over 20 years, the Elite Swing range of gate openers are known for being one of Australia’s most reliable gate openers. By being designed and originally engineered in Australia, the ATA SGO1v4 Swing Gate Opener has been built for the Australian conditions and requirements.
As the replacement to the older Elite SGO1, SGO1v2 & SGO1v3, the SGO1v4 Elite offers improved add-on functionality. The SGO1v4 Elite is compatible with the ATA SmartPhone kit & WPE-3v1 Wireless PE Beams. The SGO1v4 Elite is also compatible with the iSmartGate range of smartphone kits.
The included PTX6 remote control features a rolling code encryption called TrioCode128, which generates a new code each time the button is pressed from trillions upon trillions of possibilities. By transmitting across three frequencies, the PTX6 all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your garage door.
WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN
– Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the esophagus.
– If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 for fast, expert advice.
– Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. – Do not use it if the compartment is not secure.
– Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
– Tell others about the risk associated with button batteries and how to keep their children safe.
