Description

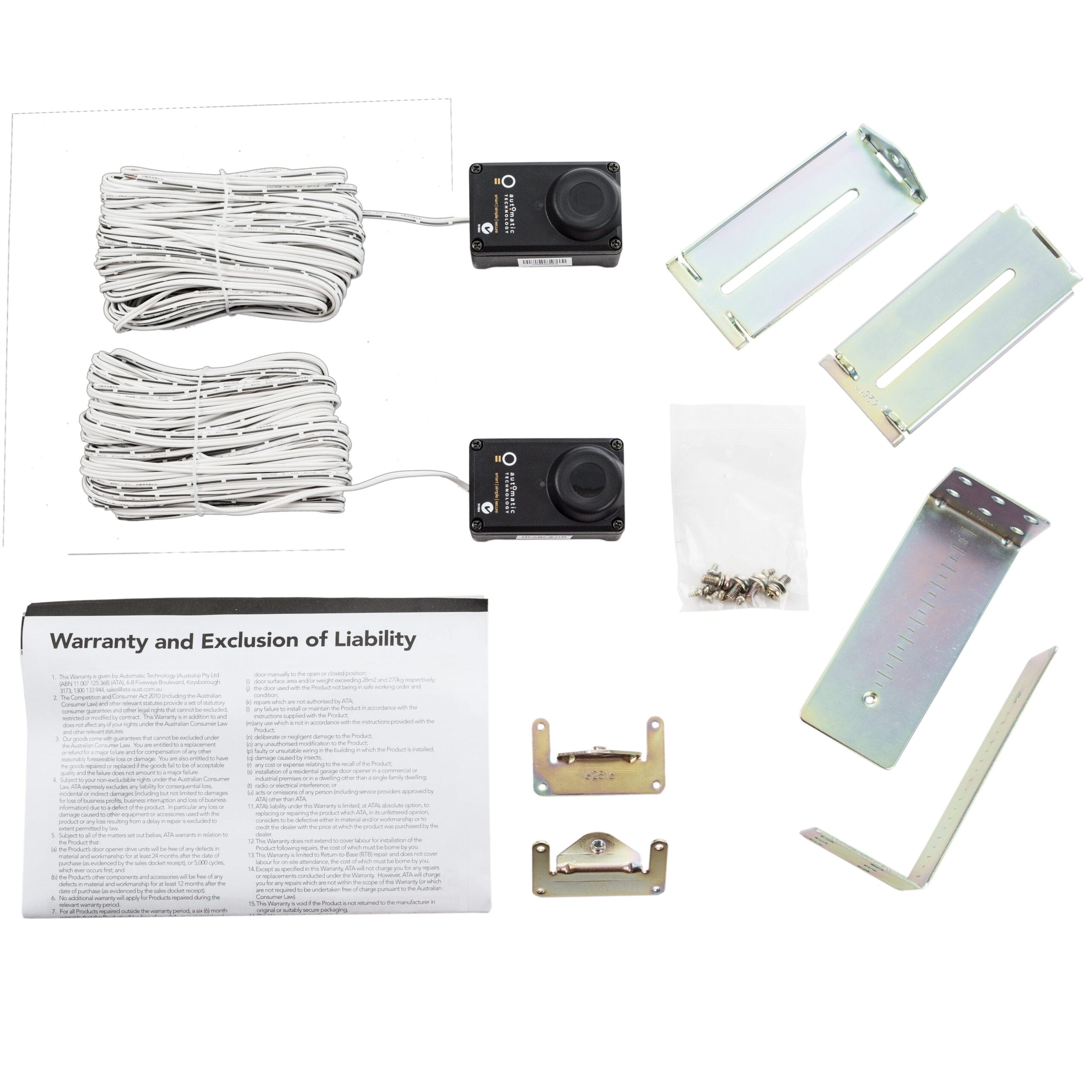

ATA PE-3 Safety Beams

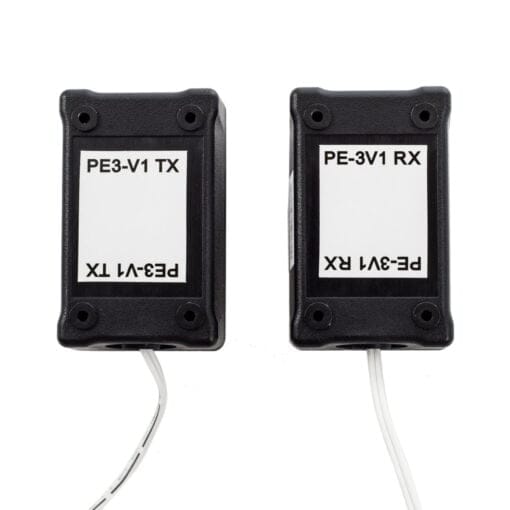

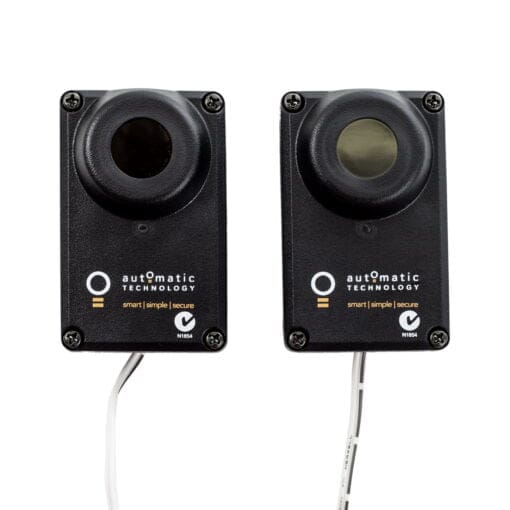

ATA PE-3 Safety Beam (pre-wired)
Mounting Brackets & Screws
Installation Guide
ATA PE-3 Safety Beams Compatibility
The ATA PE-3 Safety Beams will suit most Gen2 ATA & B&D garage door and gate openers, with some exceptions. Please see below for a full list of compatible garage door and gate opener.
Roller Door Motors
GDO-6v4 EasyRoller
GDO-8v3 Shed Master
GDO-10v1 Toro
GDO-10v2 Toro
GDO-10v2L2 Toro
GDO-10v3 Toro
Roll-A-Pro (RDO-1v3)
CADPD (RDO-1v3, RDO-1v4)
Sectional Door Motors
GDO-9v2 Enduro
GDO-9v3 Dynamo / Dominator
GDO-11v1 Ero
GDO-11v3 Ero
CAD S (SDO-3v2)
Panel Pro (SDO-4v1)
CAD Advance (SDO-2v2)
CAD Prodigy (SDO-2v3)
Gate Motors
DCB-05 Gate Control Board
NES-24v1 NeoSlider
NES-24v3 NeoSlider
NES-500 Neoslider
NES-800 NeoSlider
SGO-1 Elite
Industrial Openers
Axess Pro Series 3100 (Logic Console Only)
Axess Pro Series 3300 (Logic Console Only)
Axess Pro 1505 Overhead
Axess Pro 600 Slider
Axess Pro 800 Slider
Axess Pro 200 Swing
Axess Pro 400 Swing
Receivers
FHCRX1 Single Channel Receiver
FHCRX1v2 Single Channel Receiver
FHCRX2 Dual Channel Receiver
FHCRX2v2 Dual Channel Receiver
FHRX2 Plug-In Board Receiver
ATA PE-3 Safety Beam Specifications
| Infrared Beam Range | 6m |
| Wiring Length (Inc) | 17m |
ATA PE-3 Safety Beams Features
Protect your family, possessions and car, and further enhance your home’s security, with ATA’s PE-3 Safety Beams. Designed to be easy to install, with a very easy to read manual included. This kit includes the Sender (TX) Beam and Receiving (RX) Beam with a 17m wiring harness.
As soon as an object or person moves through the invisible photo-electric beam the door or gate will stop, or reverse, to avert serious damage being done. Safety Beams also enable Auto-Close functions on your opener, which close your door or gate after a predetermined time. This means if you forget to press your transmitter button when leaving, your home will not be left unsecured.
