Function

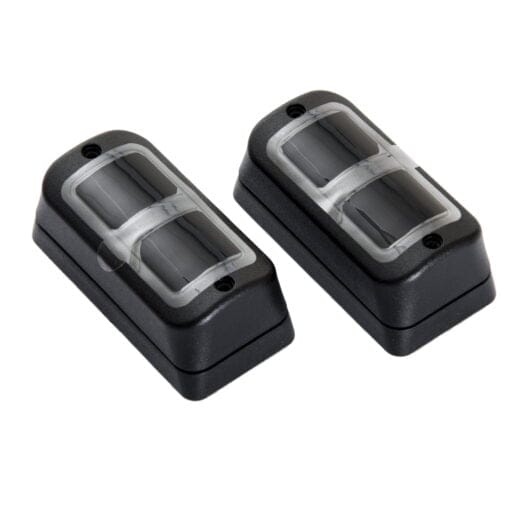

The PE-2 infrared photo electric beam are an outdoor detection device that can be used to open or prevent closure of a door / gate. The PE-2 is manufactured using modern surface mount technology and sophisticated electronics resulting in a product that has greater reliability and reduced size. When using with the auto close feature on control boards and operators, the PE-2 will prevent a door / gate from closing when a vehicle is obstructing the door / gate way. This provides your access system with added safety and security.

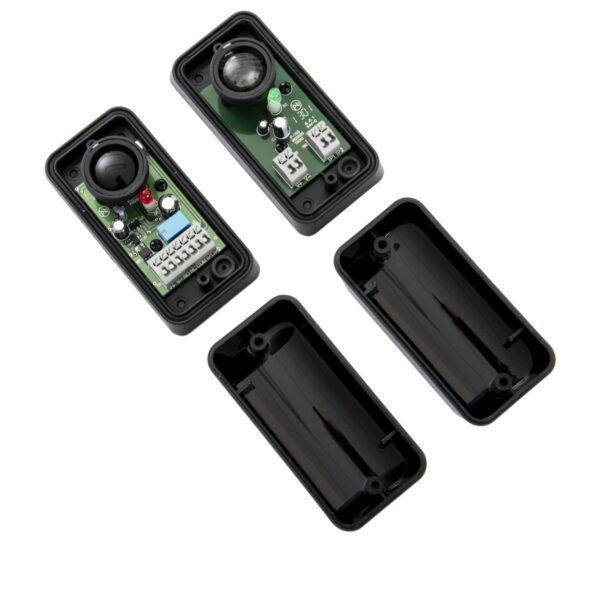

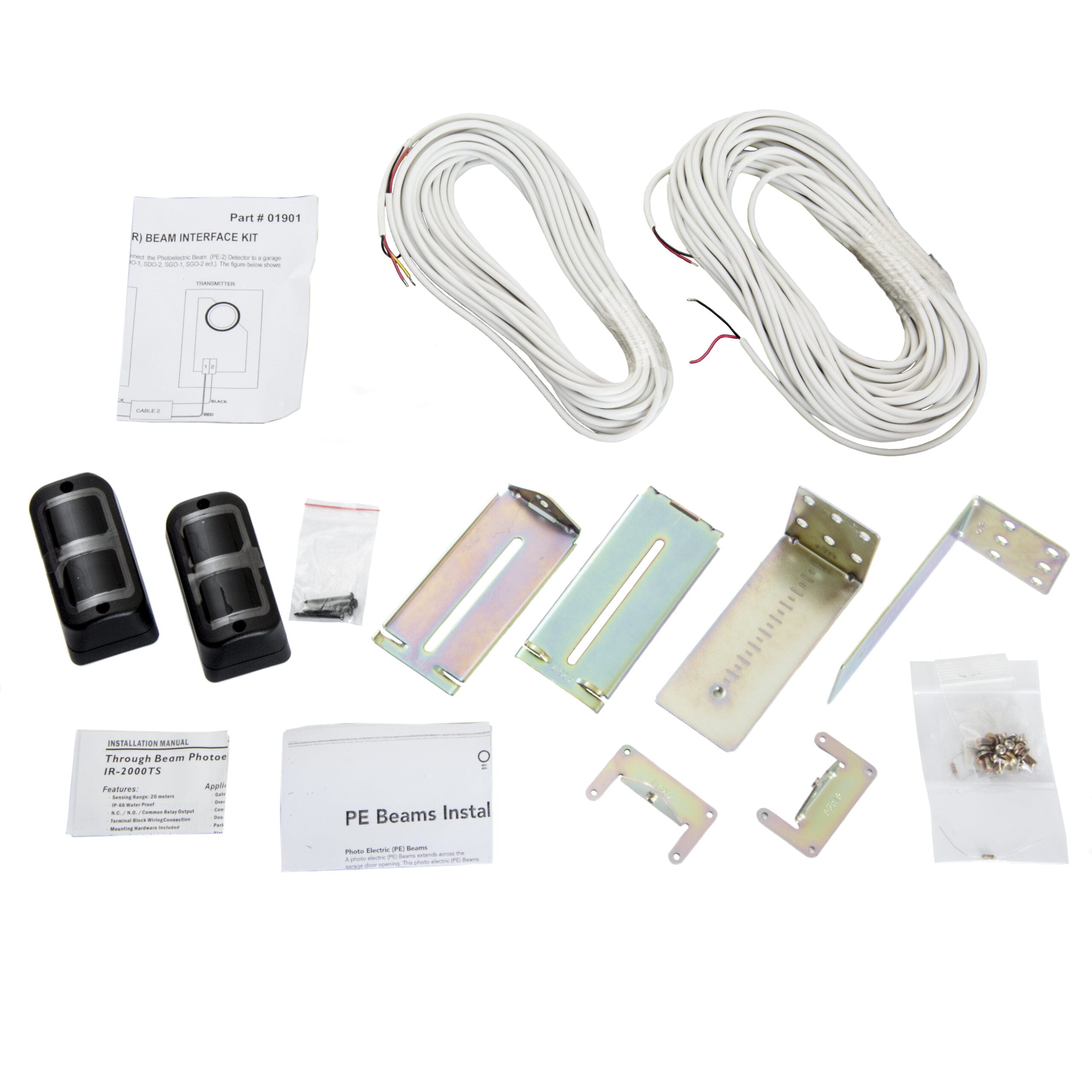

Installation of the PE-2 is designed to be simple and trouble-free. The side mounts of the PE-2 are removable to allow easy fitting. The input voltage to the PE-2 can be either 12V AC/DC or 24V AC/DC. The transmitter indicates power on using a green LED indicator. A red LED indicator mounted on the receiver shows alignment. The PE-2 is aligned correctly when the red LED light is bright. Two Adjusting screws allows simple horizontal and vertical aligning.

Compatibility

The ATA PE-2 Beams suit most ATA Gen2 motors. All ATA Gen2 motors use the grey button PTX5v2 remote controls.

Roller Door Motors

• GDO-4 EasyRoller®
• GDO-6 EasyRoller® Gen2
• GDO-6v2 Easy Roller
• GDO-6v3 Easy Roller
• GDO8v2 Shed Master
• GDO8v3 Shed Master

Sectional Door Motors

• GDO-2 Securalift
• GDO-7v1 Securalift
• GDO-7v2, & GDO-7v3
• GDO-9v1
• GDO-9v2 Enduro Gen1
• GDO-9v3 Dynamo Gen1
• GDO-11 Ero

Gate Motors

• NeoSlider NES24V1
• NeoSlider NES24V2 Gen1

Industrial Motors

• GDO-10v1 Toro
• GDO-10v2 Toro
• Axess Pro 1100
• Axess Pro 1101
• Axess Pro 1300
• Axess Pro Series 2000
• Axess 3000 With Logics
